| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors(Series 2) | |
| Chipset | Intel Z890 Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) |
|
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. | |
| Maximum Memory | 256GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
|
| Display Port (s) | - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version |
|
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
|
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year Warranty | |

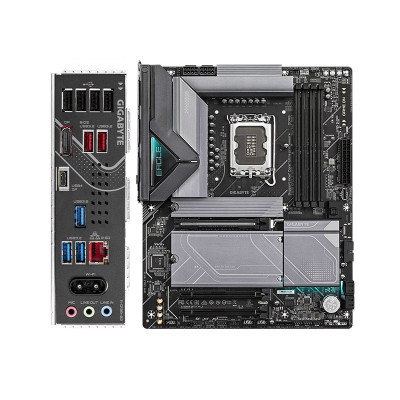

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard is built for users who want cutting-edge Intel performance, next-generation connectivity, and serious expansion potential in a full-size ATX platform. Designed around the powerful Intel Z890 chipset, this motherboard is ideal for gamers, creators, and PC enthusiasts looking to unlock the full power of Intel Core Ultra Series 2 processors with DDR5, PCIe 5.0, and WiFi 7 technology.
The Gigabyte Z890 EAGLE WIFI7 motherboard supports Intel Core Ultra processors (Series 2) using the new LGA 1851 socket, offering a future-ready platform for high-performance computing. Combined with the Intel Z890 chipset and a reliable AMI UEFI BIOS, it delivers excellent stability, smooth multitasking, and optimized power management for demanding workloads and modern gaming. This motherboard is engineered to take full advantage of DDR5 technology, supporting memory speeds up to an incredible 9200 MT/s through overclocking. With four DDR5 DIMM slots and support for up to 256GB of system memory, the Gigabyte Z890 EAGLE WIFI7 is perfect for content creation, heavy multitasking, and high-frame-rate gaming where memory bandwidth truly matters.
For graphics and expansion, the board features a PCIe 5.0 x16 slot directly from the CPU, ensuring maximum bandwidth for the latest high-end graphics cards or PCIe 5.0 NVMe solutions. Additional PCIe 4.0 slots from the chipset provide flexibility for capture cards, storage add-ons, and other expansion needs, making this ATX motherboard a versatile choice for advanced PC builds.
The Gigabyte Z890 EAGLE WIFI7 offers an impressive storage setup with four M.2 slots, including PCIe 5.0 and PCIe 4.0 support, alongside four SATA 6Gb/s ports. Whether you are building a blazing-fast boot drive or a large RAID storage array, support for RAID 0, 1, 5, and 10 across both NVMe and SATA devices ensures speed, reliability, and scalability.
Integrated Intel graphics support is enhanced with modern display connectivity, including USB4 Type-C and DisplayPort outputs that support up to 4K resolution at 144Hz. With DisplayPort 2.1 compatibility, this motherboard is ready for high-refresh-rate monitors and advanced visual workflows without compromise.
Equipped with WiFi 7 and Bluetooth 5.4, the Gigabyte Z890 EAGLE WIFI7 delivers ultra-low latency, faster wireless speeds, and improved performance across 2.4GHz, 5GHz, and 6GHz bands. The Realtek 2.5GbE LAN ensures a stable and high-speed wired connection, ideal for competitive gaming, streaming, and large data transfers.
High-definition Realtek audio provides rich, multi-channel sound for gaming and entertainment, while GIGABYTE-exclusive features like Control Center, Q-Flash, Q-Flash Plus, and Smart Backup simplify system management and BIOS updates. These tools make building, upgrading, and maintaining your PC easier—even without a CPU installed.
When you choose Potaka IT, you’re choosing authentic products, competitive pricing, and trusted after-sales support. We understand PC hardware and ensure that every Gigabyte Z890 EAGLE WIFI7 motherboard we sell meets quality standards and performance expectations. Buying from Potaka IT means confidence, reliability, and expert assistance every step of the way. If you’re looking for a powerful Intel Z890 motherboard with WiFi 7, PCIe 5.0, DDR5, and premium features, the Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard is a smart investment for today and tomorrow.
The latest price of Gigabyte Z890 EAGLE WIFI7 Motherboard in Bangladesh is 0৳. You can buy the Gigabyte Z890 EAGLE WIFI7 Motherboard at best price from our website or visit any of our showrooms.
