| Basic Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
|
| Chipset | INTEL B760 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
|
| Display Port (s) | 1x DisplayPort | |

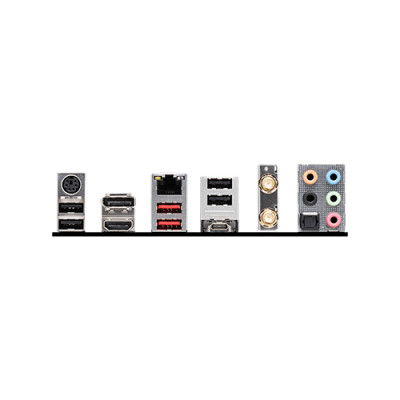

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) |
|
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN | |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

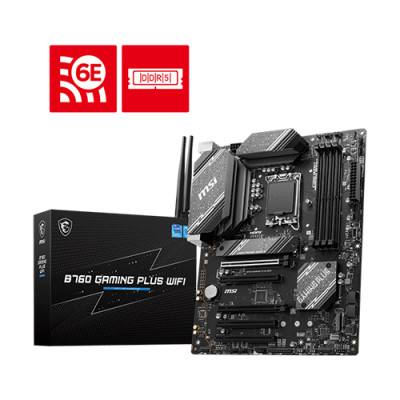

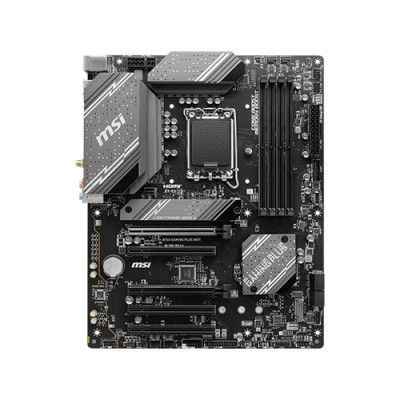

The MSI B760 DDR5 GAMING PLUS WIFI ATX Motherboard is designed for gamers and PC enthusiasts who demand high performance and future-proof features. Supporting the latest 14th, 13th, and 12th Gen Intel Core processors on the LGA1700 socket, this powerful motherboard combines the advanced Intel B760 chipset with DDR5 memory support to push your system's speed and efficiency to the next level. With top-tier connectivity options, premium audio, and robust expansion capabilities, this board is ideal for building a high-end gaming rig or performance workstation in Bangladesh.
This motherboard is compatible with the latest Intel Core, Pentium Gold, and Celeron processors, delivering excellent performance across various computing tasks and gaming.
Equipped with four DIMM slots, the board supports up to 192GB of DDR5 RAM, including overclocking frequencies beyond 6800MHz for unmatched speed and stability.
The Intel B760 chipset ensures enhanced bandwidth, power efficiency, and compatibility, making it perfect for gaming and productivity-focused builds.
With five PCIe slots including Gen 4.0 x16 and Gen 3.0 x1, the board supports multiple GPUs, capture cards, or other high-speed expansion devices.
Enjoy ultra-fast data access with two M.2 PCIe 4.0 slots and four SATA 6G ports, ensuring versatile storage configurations with SSDs and HDDs.
Experience ultra-reliable networking with Realtek RTL8125BG 2.5G LAN and integrated Wi-Fi, delivering seamless online gaming and fast downloads.
Integrated graphics support through HDMI 2.1 and DisplayPort 1.4 enables stunning 4K resolution at 60Hz, ideal for content creators and gamers alike.
Powered by the Realtek ALC897 codec, the 7.1-channel HD audio setup offers immersive sound quality with support for S/PDIF output for audiophiles.
Multiple USB 3.2 ports including rear Type-C and Gen2 ensure high-speed data transfer and easy connectivity with modern devices.
The board includes multiple fan headers, pump support, and RGB connectors, letting you build a cool and stylish system with ease.
If you're looking to upgrade your PC with a future-ready and feature-rich motherboard, the MSI B760 DDR5 GAMING PLUS WIFI ATX is the perfect choice. At Potaka IT, we offer authentic MSI products at the best price in Bangladesh, backed by a 3-year official warranty and expert customer support. Get yours today and elevate your gaming or productivity setup with trusted performance and next-gen technology.
The latest price of MSI B760 DDR5 GAMING PLUS WIFI Motherboard in Bangladesh is 0৳. You can buy the MSI B760 DDR5 GAMING PLUS WIFI Motherboard at best price from our website or visit any of our showrooms.
