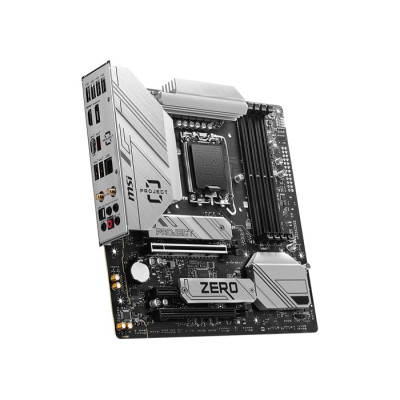

MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel Motherboard

MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel Motherboard
MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel Motherboard
MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel Motherboard
Up Coming
MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel Motherboard
MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel Motherboard
MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel Motherboard
MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel Motherboard

Key Features

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • 2 x M.2 (1. supports up to PCIe 4.0 x4 ,
  • supports 2280/2260/2242 devices, 2.
  • Price: 0৳
  • Stock: Up Coming
  • Brand: MSI
  • Model: B760M Project Zero
  • SKU: 136918
Based on 0 reviews. - Write a review
0৳
Ex Tax: 0৳
Add to Cart
Buy Now
WishList Compare
Basic Information
Raid Controller Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Main Features

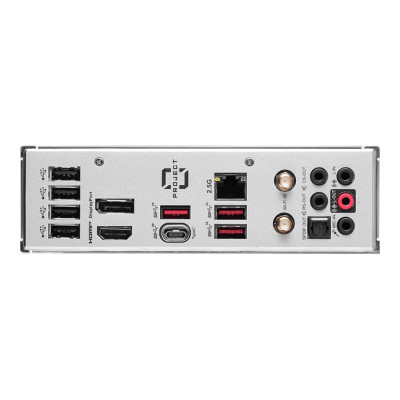

Back Panel Connectors USB 2.0
DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI™ 2.1 Port
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT
Chipset Intel B760
Form Factor mATX
243.84mmx243.84mm
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Supported CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA1700
Memory Specifications
Slot 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Supported Memory 4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
Connectivity
Audio Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)

1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LAN Ports Realtek® 2.5Gbps LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Connector
Wireless Communication Module Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Warranty Information
Warranty 03 Years

MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel Motherboard

The B760M PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th/13th/12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 6E solution. This makes it an excellent choice among mATX motherboards.

ABSOLUTE SIMPLICITY

B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

Special Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Audio Boost: Reward your ears with studio grade sound
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
