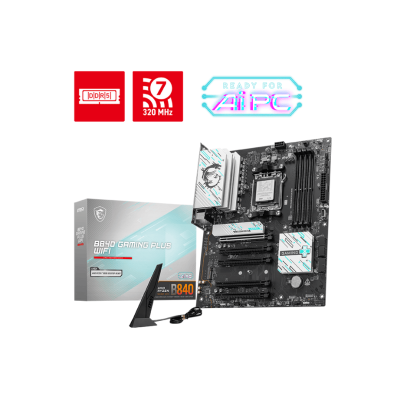

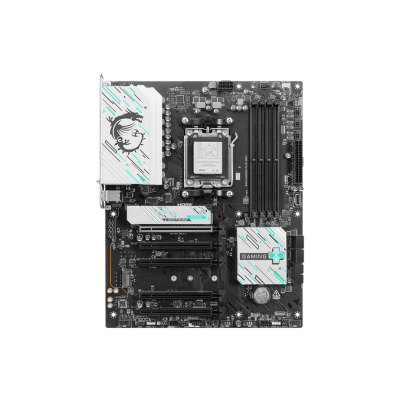

MSI B840 GAMING PLUS WIFI AMD AM5 ATX Motherboard

Name: MSI B840 GAMING PLUS WIFI AMD AM5 ATX Motherboard
Brand: MSI
SKU: 597033
Price: 23500 BDT
Availability: InStock

Price:

23,500৳ 26,000৳

Stock :

In Stock

Model :

B840 GAMING PLUS WIFI

SKU :

597033

Brand :

MSI

23,500৳ 26,000৳

Offer Price End In

Days

Hours

Minutes

Seconds

Key Features

Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM: 4x DDR5, Dual Channel DDR5 8000+ MT/s (OC), Max 256GB
Graphics Output: 1x HDMI 2.1, maximum resolution of 4K 60Hz
Features: 2x M.2 Slot, Realtek 8125BG 2.5G LAN, Wi-Fi 7

Specification
Description
Reviews
Questions

Basic Information
Supported CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B840
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI	5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
Memory
Type	DDR5
Slots	4x DDR5 UDIMM
Supported Memory	Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory	256GB
Connector & Ports
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
LAN Port (s)	Realtek® 8125BG 2.5G LAN
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
Wireless Communication module	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Warranty Information
Manufacturing Warranty	3 Years

Description

MSI B840 GAMING PLUS WIFI AMD AM5 ATX Motherboard

The MSI B840 GAMING PLUS WIFI motherboard is designed for serious gamers and PC enthusiasts who want powerful performance with the latest AMD Ryzen 9000, 8000, and 7000 Series processors. Featuring the advanced AMD B840 chipset and support for the AM5 socket, this ATX motherboard offers excellent expandability and future-proof features to build a high-end gaming rig or workstation.

Powerful CPU Support with AMD AM5 Socket

This motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, giving you access to cutting-edge performance and efficiency. The AM5 socket ensures compatibility with the newest generation of AMD CPUs, allowing you to leverage multi-core power for gaming, streaming, and heavy workloads.

High-Speed DDR5 Memory Support

The MSI B840 GAMING PLUS WIFI comes with 4 DDR5 DIMM slots, supporting dual-channel DDR5 memory with speeds up to an impressive 8000+ MT/s overclocked. It supports a maximum of 256GB RAM, which is perfect for demanding multitasking, video editing, and gaming applications. The board supports AMD EXPO™ and memory overclocking for maximizing your system’s speed and responsiveness.

Advanced Graphics and Display Connectivity

For graphics output, this motherboard features 1x HDMI 2.1 port capable of delivering a stunning 4K resolution at 60Hz, ideal for gaming and high-definition media consumption. The PCIe slots provide multiple expansion options for installing high-performance graphics cards and other PCIe devices.

Dual M.2 Slots with PCIe 4.0 Support

With 2x M.2 slots, both supporting PCIe 4.0 x4 speeds, the MSI B840 GAMING PLUS WIFI lets you install ultra-fast NVMe SSDs for lightning-quick storage and reduced loading times. These slots support various sizes (2280, 2260, 22110) and provide RAID 0 and RAID 1 support to improve performance and data redundancy.

Cutting-Edge Networking: Realtek 2.5G LAN & Wi-Fi 7

This motherboard comes equipped with Realtek 8125BG 2.5G LAN for super-fast wired internet connections and an advanced Wi-Fi 7 module pre-installed in the M.2 Key-E slot. Enjoy ultra-low latency, high-speed wireless connectivity with MU-MIMO support across 2.4GHz, 5GHz, and 6GHz bands, making it perfect for online gaming and streaming.

Rich Connectivity with USB and Expansion Slots

The MSI B840 GAMING PLUS WIFI offers a wide range of USB ports including USB 2.0, USB 5Gbps Type-A and Type-C, as well as USB 10Gbps Type-A and Type-C ports. Additionally, it features 5 PCIe x16 slots with support for PCIe 4.0 and PCIe 3.0 standards, allowing for multiple GPUs or other expansion cards.

Immersive Audio Experience

Enjoy high-quality sound with the onboard Realtek ALC897 7.1 channel High Definition Audio codec. Whether gaming or watching movies, the immersive audio output enhances your multimedia experience.

Why You Can Buy MSI B840 GAMING PLUS WIFI from Potaka IT

Potaka IT is your trusted source for genuine MSI motherboards in Bangladesh. We offer competitive pricing, quick delivery, and reliable customer support to help you build your dream PC. Our expert team ensures you get authentic products with full compatibility assurance. Shop at Potaka IT for the MSI B840 GAMING PLUS WIFI motherboard and experience hassle-free online shopping backed by excellent service.

What is the price of MSI B840 GAMING PLUS WIFI Motherboard in Bangladesh?

The latest price of MSI B840 GAMING PLUS WIFI Motherboard in Bangladesh is 23,500৳. You can buy the MSI B840 GAMING PLUS WIFI Motherboard at best price from our website or visit any of our showrooms.
