| Basic Information | ||
| Supported CPU | AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| BIOS | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Supported Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Graphics | ||
| Graphics | 1x HDMI Supports HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|

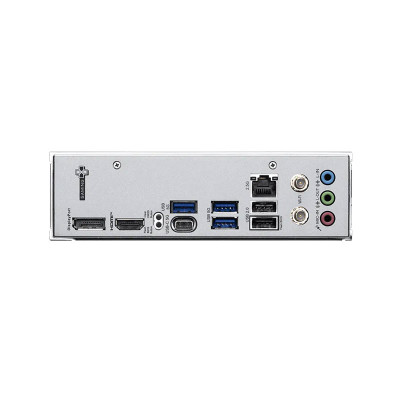

| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek® 8125D 2.5G LAN | |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
|
| Wireless Communication module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Others | ||
| Bundled Software | Support for Windows® 11 64-bit | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

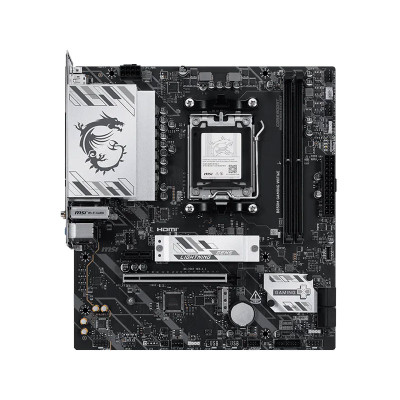

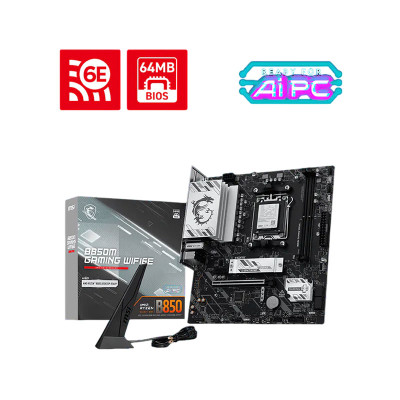

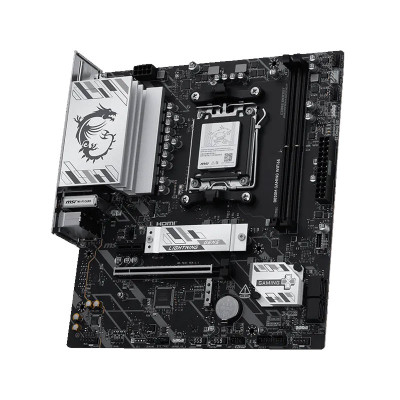

The MSI B850M Gaming WiFi6E AMD DDR5 Motherboard is a compact AM5 motherboard designed for modern AMD Ryzen gaming PCs, productivity systems and high-speed desktop builds. Powered by the AMD B850 chipset, it supports Ryzen 9000, 8000 and 7000 Series desktop processors, DDR5 memory up to 8200+ MT/s through overclocking, PCIe 4.0 graphics connectivity, PCIe 5.0 x4 NVMe storage, Wi-Fi 6E and 2.5G LAN. With a micro-ATX form factor and a practical feature set, it is an excellent choice for users building a powerful yet space-efficient AMD PC in Bangladesh.
The MSI B850M Gaming WiFi6E brings the features that matter most in a modern gaming motherboard without making the platform unnecessarily complicated. Its AM5 socket gives you access to AMD Ryzen 7000, 8000 and 9000 Series processors, while dual-channel DDR5 support provides a fast foundation for gaming, content creation and demanding everyday workloads.
For storage, the board combines a next-generation PCIe 5.0 x4 M.2 slot with a second PCIe 4.0 x4 M.2 slot, giving builders room for both a high-performance primary NVMe SSD and additional fast storage. MSI also includes Wi-Fi 6E, Bluetooth 5.3 and Realtek 2.5G LAN, making high-speed wired and wireless networking readily available without requiring separate expansion cards.
The AM5 platform makes this MSI B850M motherboard suitable for current-generation AMD desktop builds. It supports AMD Ryzen 9000, 8000 and 7000 Series processors, allowing you to choose a CPU according to your gaming, productivity and budget requirements.
With two DDR5 UDIMM slots and support for up to 128GB of memory, the motherboard is built for high-speed modern RAM configurations. Supported overclocked memory speeds can reach 8200+ MT/s with compatible Ryzen 9000 Series processor and memory configurations. AMD EXPO memory overclocking and dual-channel operation are also supported.
The primary M.2 slot supports PCIe 5.0 x4 with compatible Ryzen 9000 or 7000 Series processors, while the second M.2 slot supports PCIe 4.0 x4. This makes the MSI B850M Gaming WiFi6E a strong choice for users who want fast boot times, responsive applications, large game libraries and rapid file transfers. Four SATA 6Gb/s ports are also available for additional storage devices.
Fast networking is one of this motherboard's biggest advantages. The integrated Wi-Fi 6E solution supports 2.4GHz, 5GHz and 6GHz connectivity with up to 2.4Gbps wireless throughput under supported conditions, while the Realtek 8125D 2.5G LAN provides high-speed wired networking. Bluetooth 5.3 is included for compatible wireless peripherals and accessories.
MSI equips the board with a 7+2+1 power design, extended heatsink coverage, 7W/mK MOSFET thermal pads and M.2 Shield Frozr. These features are designed to help maintain stable operation and thermal control during sustained workloads. The board also provides dedicated CPU, pump/system and system-fan connections for flexible cooling setups.
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | B850M GAMING WIFI6E |
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| CPU Socket | AM5 |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 UDIMM |
| Memory Slots | 2 |
| Maximum Memory | 128GB |
| Memory Speed | DDR5 8200–5600 MT/s (OC), 5600–4800 MT/s JEDEC |
| Memory Features | AMD EXPO, Dual Channel, Non-ECC, Un-buffered, CUDIMM support |
| Graphics Slot | PCIe 4.0 x16 from CPU |
| Expansion Slot | PCIe 3.0 x1 from chipset |
| M.2 Slots | 2 |
| Primary M.2 | PCIe 5.0 x4 |
| Secondary M.2 | PCIe 4.0 x4 |
| SATA | 4 x SATA 6Gb/s |
| LAN | Realtek 8125D 2.5G LAN |
| Wireless | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| HDMI | HDMI 2.1, up to 4K 60Hz |
| DisplayPort | DisplayPort 1.4, up to 4K 60Hz |
| Operating System | Windows 11 64-bit |
| Warranty | 3 Years |
Specifications are based on the supplied product information and MSI's published specifications. Actual memory speed, expansion-lane behavior and integrated graphics output depend on the installed Ryzen processor and memory configuration.
For a gaming PC, the MSI B850M Gaming WiFi6E provides a solid foundation for pairing an AM5 Ryzen processor with a dedicated graphics card. Its PCIe 4.0 x16 graphics interface, high-speed DDR5 support and fast NVMe storage options help create a responsive gaming platform.
It is equally suitable for productivity-focused desktops. Users working with large files, multiple applications, creative software, development tools or demanding multitasking can benefit from fast DDR5 memory, multiple NVMe drives and 2.5Gbps networking.
This motherboard is particularly well suited to gamers, PC builders, students, professionals and content creators who want an AM5 platform with modern connectivity in a compact micro-ATX design. It is also a practical choice when you want Wi-Fi 6E and 2.5G Ethernet built into the motherboard rather than adding separate networking hardware.
If you are building a compact gaming PC, pair it with a compatible AMD Ryzen processor, a suitable DDR5 memory kit, a PCIe NVMe SSD and a graphics card matched to your gaming resolution and performance target.
The MSI B850M Gaming WiFi6E supports AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series desktop processors using the AM5 socket.
It has two DDR5 UDIMM slots and supports up to 128GB of system memory. Compatible memory can reach up to DDR5 8200+ MT/s through supported overclocking configurations.
Yes. It includes an integrated Wi-Fi 6E solution supporting 2.4GHz, 5GHz and 6GHz bands, along with Bluetooth 5.3.
Yes. The motherboard includes a Realtek 8125D 2.5G LAN port for high-speed wired networking.
The motherboard provides two M.2 slots. The primary slot supports up to PCIe 5.0 x4 with compatible Ryzen 9000 or 7000 Series processors, while the second supports PCIe 4.0 x4.
Yes. Its AM5 CPU support, DDR5 memory, PCIe 4.0 graphics connectivity, high-speed NVMe storage, 2.5G LAN and Wi-Fi 6E make it a strong platform for a modern AMD gaming
The latest price of MSI B850M Gaming WiFi6E Motherboard in Bangladesh is 0৳. You can buy the MSI B850M Gaming WiFi6E Motherboard at best price from our website or visit any of our showrooms.
