| Basic Information | ||
| Supported CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| M.2 Socket | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s |
|
| Maximum Memory | Maximum Memory Capacity 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Supports HDMI™ 2.1 TMDS, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DisplayPort 1.4, maximum resolution of 4K 60Hz* |
|
| Connector & Ports | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | 5Gbps LAN Controller | |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices |
|
| Others | ||
| Bundled Software | Support for Windows® 11 64-bit | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Year | |

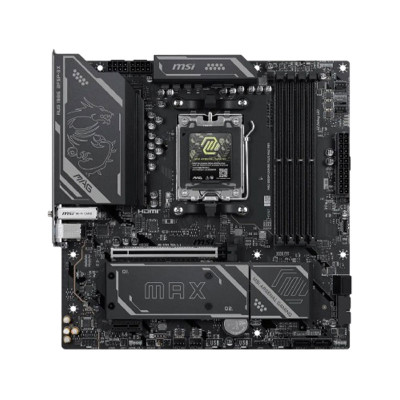

MSI MAG B850M GAMING PLUS MAX WIFI AM5 M-ATX Motherboard is a feature-rich AMD B850 motherboard designed for modern gaming PCs, high-performance workstations, content creation systems, and future-ready AM5 builds. It supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors, DDR5 memory up to 8200+ MT/s (OC), PCIe 5.0 graphics connectivity, three M.2 NVMe slots, 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4, and USB 10Gbps connectivity.
Built in a compact 243.84 × 243.84mm mATX form factor, this MSI AM5 motherboard offers an excellent balance between performance, expansion, connectivity, and build flexibility. Whether you are building a powerful gaming PC in Bangladesh or upgrading to a Ryzen 9000 Series platform, the MAG B850M GAMING PLUS MAX WIFI provides the modern platform features needed for a fast and responsive system.
The MSI MAG B850M GAMING PLUS MAX WIFI stands out as a strong choice for users who want the latest AMD AM5 platform without moving to a larger ATX motherboard. Its AMD B850 chipset, DDR5 support, PCIe 5.0 interface, high-speed NVMe storage support, 5Gbps networking, and Wi-Fi 7 make it suitable for both current-generation gaming and future upgrades.
Its compact mATX design is particularly useful for performance-focused builds where desk space and case size matter. At the same time, the board retains the essential connectivity expected from a modern gaming motherboard, including multiple M.2 slots, USB Type-C, high-speed LAN, wireless networking, and dedicated expansion connectivity.
The motherboard uses the AMD B850 chipset and an AM5 CPU socket, supporting AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series desktop processors. This gives builders a flexible foundation for gaming, productivity, streaming, content creation, and demanding everyday workloads.
If you are planning a Ryzen 9000 gaming PC, the combination of AM5, B850, DDR5 and PCIe 5.0 provides a modern upgrade path without requiring an older-generation memory platform.
The MSI MAG B850M GAMING PLUS MAX WIFI supports four DDR5 UDIMM slots with up to 256GB total memory capacity. Supported memory speeds range from 4800 to 5600 MT/s under JEDEC specifications, while compatible memory configurations can reach up to DDR5-8200+ MT/s through overclocking.
AMD EXPO support makes compatible high-speed DDR5 memory easier to configure, while dual-channel operation helps provide the bandwidth required for modern gaming, multitasking and content creation.
The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 Series processors. This provides a high-bandwidth interface for modern graphics cards and helps keep the platform ready for future GPU generations.
The secondary PCIe x1 slot is connected through the chipset and supports PCIe 3.0 x1, providing additional flexibility for compatible expansion cards.
Storage flexibility is one of the major strengths of this MSI B850M motherboard. It provides three M.2 slots, including a CPU-connected PCIe 5.0 x4 M.2 slot and additional PCIe 4.0 x4 M.2 connectivity. This allows users to combine a high-speed Gen5 NVMe SSD with additional Gen4 storage for games, applications, projects and large files.
Four SATA 6Gb/s ports are also available for conventional SATA SSDs and hard drives. RAID 0, RAID 1 and RAID 10 are supported for SATA storage, while supported M.2 configurations can provide RAID 0, RAID 1 and RAID 5 functionality depending on processor compatibility.
Fast networking is built directly into the motherboard. The integrated Wi-Fi 7 solution supports 2.4GHz, 5GHz and 6GHz bands with 160MHz channels and up to 2.9Gbps wireless throughput under supported conditions. Bluetooth 5.4, Multi-Link Operation and 4KQAM are also supported.
For wired networking, the 5Gbps LAN controller provides significantly more bandwidth than traditional Gigabit Ethernet, making the board well suited to fast local-network transfers, online gaming, high-speed internet connections and large file workflows.

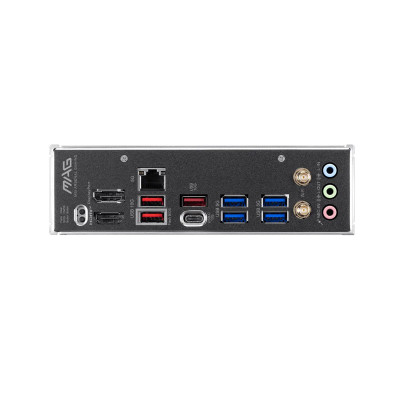

The motherboard offers a practical mix of high-speed USB connectivity. Rear I/O includes USB 10Gbps Type-A and Type-C ports, while the internal headers provide front-panel USB connectivity including a USB 10Gbps Type-C connection. This makes it easier to connect modern external SSDs, peripherals, mobile devices and other high-speed accessories.
For sustained processor performance, MSI equips the MAG B850M GAMING PLUS MAX WIFI with a 10+2+1 Duet Rail Power System using P-PAK power stages and dual 8-pin CPU power connectors. The design is intended to provide stable power delivery for demanding Ryzen processors and heavy workloads.
The board also incorporates a 6-layer PCB with 2oz copper, helping support reliable signal transmission and power delivery across the motherboard.
Performance hardware needs effective thermal management, especially during long gaming sessions or sustained workloads. The motherboard uses an extended heatsink design, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads and an M.2 Shield Frozr solution to help manage heat around critical components.
Multiple fan headers, including dedicated CPU, pump and system fan connections, provide flexibility for air-cooled and liquid-cooled PC builds.
For a gaming PC, the motherboard provides the core platform needed to pair a Ryzen processor with a modern PCIe graphics card, fast DDR5 memory and high-speed NVMe storage. PCIe 5.0 graphics connectivity and Gen5 M.2 support make it particularly attractive for users building a performance-oriented AM5 gaming system.
MSI's Game Boost and memory tuning features can simplify performance configuration for compatible hardware, while AMD EXPO support makes it easier to take advantage of supported DDR5 memory profiles.
For gaming PC builders: The combination of Ryzen processor support, DDR5, PCIe 5.0, fast NVMe storage and 5Gbps networking makes it a strong foundation for a modern gaming computer.
For content creators: Up to 256GB DDR5 memory and multiple M.2 storage options provide useful headroom for video editing, photo processing, software development and large project files.
For compact PC builders: The 243.84 × 243.84mm mATX form factor allows users to build a powerful system in a smaller compatible chassis without moving to a full-size ATX motherboard.
For future upgrades: PCIe 5.0, Wi-Fi 7, USB 10Gbps, DDR5 and AM5 processor compatibility provide a strong platform for upgrading components over time.
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | MAG B850M GAMING PLUS MAX WIFI |
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| CPU Socket | AM5 |
| Form Factor | mATX |
| Motherboard Size | 243.84 × 243.84mm |
| Memory Type | DDR5 UDIMM |
| Memory Slots | 4 |
| Maximum Memory | 256GB |
| Maximum OC Memory Speed | Up to DDR5-8200+ MT/s |
| Memory Technology | Dual Channel, AMD EXPO, Non-ECC, Unbuffered |
| PCIe x16 | 1 × PCIe 5.0 x16 |
| PCIe x1 | 1 × PCIe 3.0 x1 |
| M.2 Slots | 3 |
| Primary M.2 | PCIe 5.0 x4 |
| Additional M.2 | PCIe 4.0 x4 + PCIe 4.0 x4 |
| SATA | 4 × SATA 6Gb/s |
| LAN | 5Gbps LAN |
| Wireless | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| USB | USB 2.0, USB 5Gbps and USB 10Gbps |
| Rear USB Type-C | 1 × USB 10Gbps Type-C |
| Front USB Type-C | 1 × USB 10Gbps Type-C header |
| Video Outputs | HDMI 2.1 TMDS, DisplayPort 1.4 |
| Maximum Display Resolution | 4K 60Hz via supported integrated graphics |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| RAID | SATA RAID 0/1/10; M.2 RAID 0/1/5* |
| Operating System | Windows 11 64-bit |
*RAID support and available PCIe/storage features can vary according to the installed Ryzen processor and configuration. Always check the motherboard manual and MSI compatibility information before finalizing a build.
If you are looking for an AM5 motherboard for Ryzen 9000, this model is worth considering when you want modern connectivity in an mATX form factor. It is especially suitable when your build requires DDR5 memory, PCIe 5.0, multiple NVMe drives, Wi-Fi 7 and 5Gbps wired networking.
Before buying, make sure your PC case supports the mATX form factor, your selected CPU is included in the supported processor family, and your DDR5 kit appears on the appropriate memory compatibility list. For maximum memory overclocking performance, CPU, DIMM configuration and memory kit quality all matter.
Compared with basic B850 motherboards, the MAG B850M GAMING PLUS MAX WIFI focuses heavily on connectivity and enthusiast-friendly features. Its combination of Wi-Fi 7, 5Gbps LAN, PCIe 5.0, three M.2 slots, USB 10Gbps, DDR5-8200+ MT/s OC support and a compact mATX layout makes it a compelling option for users who want more than the essentials without moving to a larger ATX platform.
The right choice ultimately depends on your processor, graphics card, number of storage drives, networking requirements, case size and upgrade plans. For a compact high-performance Ryzen build, the feature set is particularly well matched.
Looking for the MSI MAG B850M GAMING PLUS MAX WIFI motherboard price in Bangladesh? Potaka IT offers a convenient destination for buyers searching for MSI motherboards, AMD Ryzen components and PC hardware in Bangladesh. Availability and pricing can change, so check the product page for the latest stock and current price before ordering.
For customers building a complete PC, it is also useful to match the motherboard with a compatible AMD Ryzen processor, high-speed DDR5 desktop RAM, an NVMe SSD, a suitable graphics card and a reliable power supply.
Potaka IT is focused on PC components, gaming hardware and technology products for customers in Bangladesh. You can browse the wider motherboard collection to compare AMD and Intel platforms, explore MSI AMD motherboards for alternative AM5 options, or visit the MSI collection to explore more MSI hardware.
For a complete PC upgrade, the broader PC components collection can help you find compatible processors, memory, storage, graphics cards, cooling solutions and other essential hardware in one place.
The motherboard supports AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series desktop processors using the AM5 socket.
It supports up to 256GB of DDR5 memory across four DDR5 UDIMM slots, with compatible configurations supporting memory speeds up to DDR5-8200+ MT/s through overclocking.
Yes. The motherboard includes a pre-installed Wi-Fi 7 wireless solution supporting 2.4GHz, 5GHz and 6GHz connectivity, along with Bluetooth 5.4 and Multi-Link Operation.
Yes. It features a 5Gbps LAN controller for high-speed wired networking and fast local data transfers.
The MSI MAG B850M GAMING PLUS MAX WIFI provides three M.2 slots. The primary M.2 slot supports PCIe 5.0 x4, while the other two support PCIe 4.0 x4.
Yes. Its AM5 Ryzen processor support, DDR5 memory, PCIe 5.0 x16 graphics slot, fast NVMe storage, 5Gbps LAN and Wi-Fi 7 make it well suited to modern gaming PCs.
Yes. Its 243.84 × 243.84mm mATX form factor is designed for compatible Micro-ATX PC cases, making it suitable for compact gaming and performance builds.
Yes. The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 Series processors, while the primary M.2 slot supports PCIe 5.0 x4.
Yes. The motherboard supports Windows 11 64-bit.
