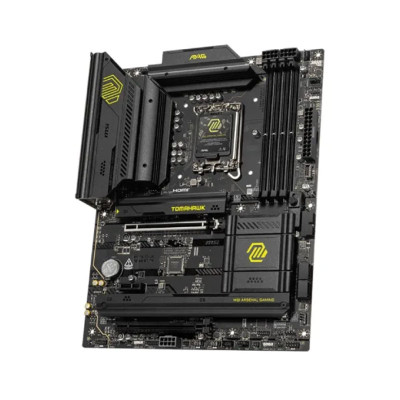

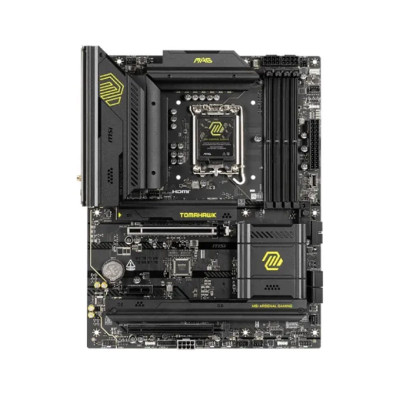

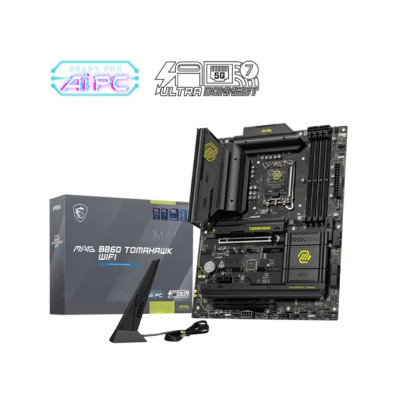

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Price:

33,500৳

Stock :

In Stock

Model :

MAG B860 TOMAHAWK WIFI

SKU :

Brand :

MSI

33,500৳

Key Features

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features: 3x M.2 Slot, 1x 5Gbps LAN, Intel Killer Wi-Fi 7, Bluetooth 5.4

Specification
Description
Reviews
Questions

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset	INTEL B860
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Memory
Type	DDR5
Slots	4x UDIMM
Supported Memory	Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory	256GB
Graphics
Graphics	1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Connector & Ports
HDMI	1x HDMI 2.1 with FRL
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Display Port (s)	1x DisplayPort 1.4 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

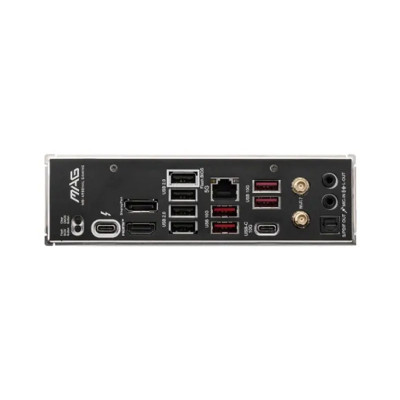

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 40Gbps Type C (Rear)
LAN Port (s)	Intel Killer E5000 5Gbps LAN
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
Audio	1x Front Audio (JAUD)
Wireless Communication module	Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Others
Special Features	4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty	3 Year

Description

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

The MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard is built for modern desktop PCs powered by Intel Core Ultra Series 2 processors. Featuring the Intel B860 chipset, DDR5 memory support up to 256GB, PCIe 5.0 graphics and storage connectivity, Wi-Fi 7 and 5Gb Ethernet, this MSI motherboard delivers a strong foundation for gaming, content creation and demanding productivity workloads.

For PC enthusiasts looking for an MSI B860 motherboard in Bangladesh, this model combines high-speed connectivity with practical expansion options. Its three M.2 slots, 40Gbps Thunderbolt 4 port, advanced wireless networking and convenient installation features make it suitable for a clean, powerful and upgrade-friendly desktop build. Explore the MSI MAG B860 TOMAHAWK WIFI at Potaka IT to plan your next Intel PC.

Key Features of the MSI MAG B860 TOMAHAWK WIFI

Built around the LGA 1851 socket and Intel B860 chipset, this motherboard supports compatible Intel Core Ultra Series 2 processors. It provides a modern platform for responsive multitasking, gaming and professional applications. Its 12+1+1+1 Duet Rail Power System with 60A Smart Power Stages, dual 8-pin CPU power connectors and extended heatsink design helps support stable power delivery and thermal management.

DDR5 RAM Support Up to 256GB

The MSI MAG B860 TOMAHAWK WIFI features four DDR5 UDIMM slots with dual-channel memory architecture and support for up to 256GB of RAM. Compatible memory configurations can reach 9200+ MT/s through overclocking, while standard JEDEC speeds depend on the installed processor and memory kit. Intel XMP 3.0 simplifies memory profile setup, making this board suitable for demanding multitasking, large creative projects and performance-focused gaming systems.

PCIe 5.0 Graphics and Three M.2 SSD Slots

A PCIe 5.0 x16 slot supports compatible graphics cards, while the motherboard provides one PCIe 5.0 x4 M.2 slot and two PCIe 4.0 x4 M.2 slots. Four SATA 6Gb/s connectors allow additional storage expansion. Use a compatible NVMe SSD for fast boot times, quick application loading and efficient file transfers. MSI EZ M.2 Shield Frozr II and tool-free installation features also make SSD upgrades more convenient.

Wi-Fi 7, Bluetooth 5.4 and 5Gb Ethernet

The integrated Intel Killer Wi-Fi 7 solution supports compatible wireless networks, including the 2.4GHz, 5GHz and 6GHz bands where available. Bluetooth 5.4 connects compatible wireless peripherals, while Intel Killer 5Gb Ethernet offers high-speed wired networking. These features benefit competitive gaming, large downloads, network storage and busy home or professional workspaces. Actual network performance depends on your internet plan, router and connected devices.

Thunderbolt 4 and High-Speed USB Connectivity

A rear Thunderbolt 4 Type-C port supports data transfer speeds up to 40Gbps with compatible devices. The board also provides USB 10Gbps Type-A and Type-C ports, front USB-C connectivity, HDMI 2.1 and DisplayPort 1.4. These connections are useful for external SSDs, compatible docking stations, high-resolution displays and modern peripherals. Display output from the motherboard requires a processor with integrated graphics.

MSI MAG B860 TOMAHAWK WIFI Specifications

Specification	Details
Brand	MSI
Model	MAG B860 TOMAHAWK WIFI
Chipset	Intel B860
CPU Socket	LGA 1851
Processor Support	Intel Core Ultra Series 2
Form Factor	ATX, 304.8 x 243.84mm
Memory	4 x DDR5 UDIMM, up to 256GB
Memory Speed	Up to 9200+ MT/s (OC), configuration dependent
Graphics Slot	1 x PCIe 5.0 x16
Storage	3 x M.2, 4 x SATA 6Gb/s
Wireless	Intel Killer Wi-Fi 7
Bluetooth	Bluetooth 5.4
LAN	Intel Killer 5Gb Ethernet
USB-C	Thunderbolt 4 up to 40Gbps; additional USB-C ports
Audio	Realtek ALC897, 7.1-channel HD audio, S/PDIF
Expansion	2 additional PCIe slots: PCIe 4.0 x1 and PCIe 4.0 x4

Who Should Buy the MSI MAG B860 TOMAHAWK WIFI?

Gaming enthusiasts: Build a modern Intel gaming PC with a compatible graphics card, high-speed DDR5 memory and an NVMe SSD.

Content creators: Take advantage of fast storage, extensive connectivity and high memory capacity for editing, large files and demanding creative applications.

Professional users: Wi-Fi 7, 5Gb Ethernet and Thunderbolt 4 provide flexible networking and peripheral connectivity for advanced desktop workflows.

Why Buy from Potaka IT?

Potaka IT helps customers in Bangladesh explore components for custom PCs, gaming setups and professional workstations. Browse our motherboard collection, discover MSI Intel motherboards, explore the MSI product collection, or compare other options in PC components. Visit Potaka IT to find compatible parts for your next build.

Frequently Asked Questions

Which processors are compatible with the MSI MAG B860 TOMAHAWK WIFI?

It supports Intel Core Ultra Series 2 processors designed for the LGA 1851 socket. Confirm compatibility before purchasing your CPU.

Does the MSI MAG B860 TOMAHAWK WIFI support DDR5 RAM?

Yes. It supports four DDR5 memory modules, up to 256GB, with compatible overclocked memory speeds reaching 9200+ MT/s depending on the configuration.

How many M.2 SSDs can I install?

You can install up to three M.2 SSDs: one PCIe 5.0 x4 drive and two PCIe 4.0 x4 drives, subject to physical compatibility and the motherboard manual.

Does this MSI motherboard support Wi-Fi 7?

Yes. It includes Intel Killer Wi-Fi 7 and Bluetooth 5.4. Access to the 6GHz band depends on local regulations and compatible networking equipment.

Is the MSI MAG B860 TOMAHAWK WIFI good for gaming?

Yes. Its PCIe 5.0 graphics slot, DDR5 memory support, fast NVMe storage and high-speed networking make it suitable for a modern gaming PC with compatible components.

What is the price of MSI MAG B860 TOMAHAWK WIFI Motherboard in Bangladesh?

The latest price of MSI MAG B860 TOMAHAWK WIFI Motherboard in Bangladesh is 33,500৳. You can buy the MSI MAG B860 TOMAHAWK WIFI Motherboard at best price from our website or visit any of our showrooms.
