| Basic Information | ||
| Supported CPU | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors Socket AM4 |
|
| Chipset | AMD B550 | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM Slots | |
| Supported Memory | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4400+ MT/s • 1DPC 2R Max speed up to 3733+ MT/s • 2DPC 1R Max speed up to 3866+ MT/s • 2DPC 2R Max speed up to 3466+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode |
|
| Maximum Memory | Maximum Memory Capacity 128GB | |
| Connector & Ports | ||
| HDMI | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Display Port (s) | 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz |
|
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
|
| LAN Port (s) | Realtek® RTL8111H 1Gbps LAN | |
| Wireless Communication module | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Dual-band 1T1R mode Supports MU-MIMO RX Supports 2.4GHz/ 5GHz/ 6GHz* frequency band Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3 |
|
| VGA (s) | 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Bundled Software | Support for Windows® 11 64-bit, Windows® 10 64-bit | |

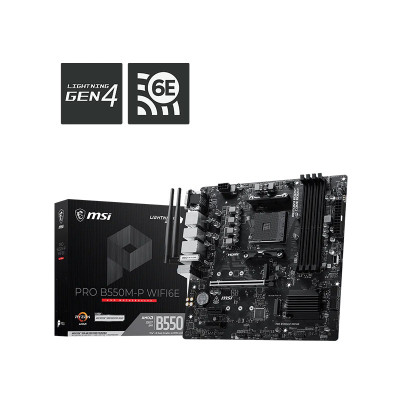

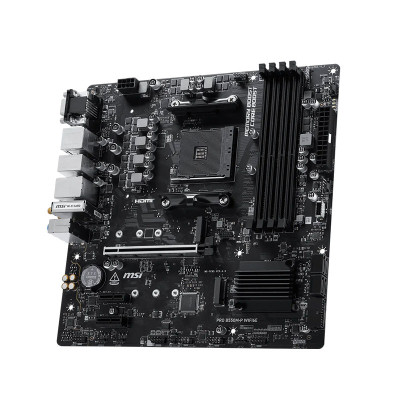

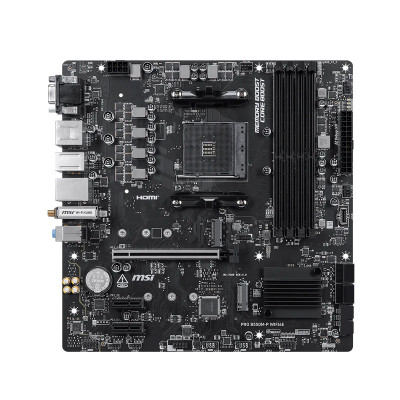

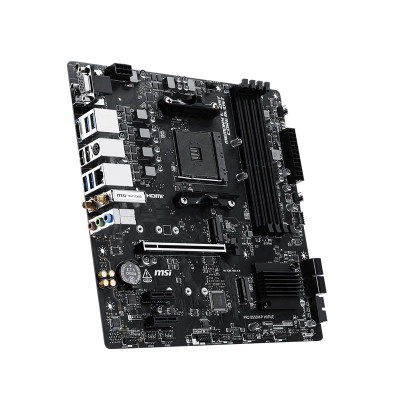

The MSI PRO B550M-P WIFI6E GEN4 AMD AM4 Micro ATX Motherboard is a feature-rich motherboard built for AMD Ryzen users who want reliable performance, high-speed connectivity, and future-ready expansion. Powered by the AMD B550 chipset, this Micro-ATX motherboard supports AMD Ryzen 5000, Ryzen 4000 G-Series, and Ryzen 3000 Series processors, making it an excellent choice for gaming PCs, content creation workstations, and productivity systems. With PCIe Gen4 support, integrated Wi-Fi 6E, Bluetooth 5.3, and dual M.2 slots, it delivers the speed and flexibility required for modern computing.
Designed around the AMD AM4 platform, the MSI PRO B550M-P supports Ryzen 5000, Ryzen 4000 G-Series, and Ryzen 3000 desktop processors. The primary PCIe 4.0 x16 slot and PCIe Gen4 M.2 SSD support provide faster bandwidth for the latest graphics cards and high-speed NVMe storage, helping maximize gaming, rendering, and multitasking performance.
Featuring four DDR4 DIMM slots with support for up to 128GB of memory, this motherboard allows you to build a powerful system for gaming, professional workloads, and content creation. MSI A-XMP technology enables memory overclocking up to 4400+ MHz, helping improve overall system responsiveness and application performance.
The motherboard includes two M.2 slots for high-speed NVMe SSDs, with the primary slot supporting PCIe 4.0 x4 for maximum storage performance. Four SATA 6Gb/s ports provide additional storage flexibility, making it easy to build a fast and spacious system for games, applications, and multimedia files.
Equipped with an integrated Wi-Fi 6E module, the MSI PRO B550M-P delivers faster wireless networking with support for the 2.4GHz, 5GHz, and 6GHz frequency bands. Combined with Bluetooth 5.3 and Realtek Gigabit LAN, you can enjoy stable online gaming, seamless video conferencing, and high-speed file transfers whether you're connected wirelessly or through Ethernet.

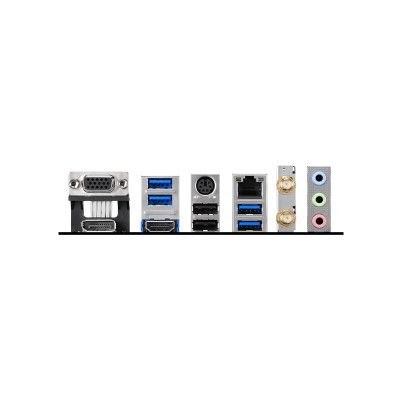

This motherboard offers HDMI 2.1, DisplayPort 1.4, and VGA outputs, supporting up to 4K resolution at 60Hz when paired with compatible AMD Ryzen processors featuring integrated graphics. Multiple USB 5Gbps Type-A ports, a front USB Type-C header, USB 2.0 ports, RGB lighting headers, TPM 2.0 support, and EZ Debug LEDs provide excellent connectivity and user-friendly system management.
The Realtek ALC897 7.1-channel HD Audio codec delivers immersive sound quality for gaming, movies, and online communication. With RAID support, durable MSI engineering, and Windows 11 compatibility, this motherboard is built for dependable everyday performance and long-term reliability.
Potaka IT offers genuine MSI motherboards at competitive prices in Bangladesh with trusted customer service and reliable after-sales support. Whether you're building a gaming PC, upgrading your workstation, or assembling a high-performance desktop, the MSI PRO B550M-P WIFI6E GEN4 AMD AM4 Micro ATX Motherboard delivers premium features, excellent connectivity, and exceptional value. Buy from Potaka IT for authentic products, fast nationwide delivery, and professional technical support.
The latest price of MSI PRO B550M-P WIFI6E GEN4 AMD Motherboard in Bangladesh is 0৳. You can buy the MSI PRO B550M-P WIFI6E GEN4 AMD Motherboard at best price from our website or visit any of our showrooms.
