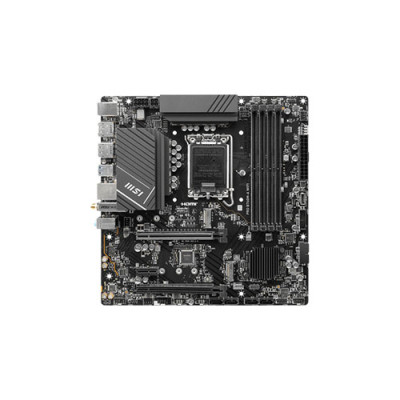

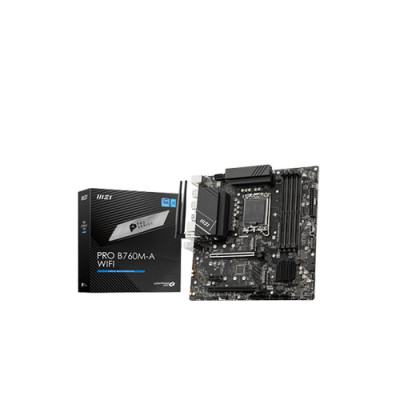

MSI PRO B760M-A WIFI DDR5 12TH/13TH GEN Motherboard

MSI PRO B760M-A WIFI DDR5 12TH/13TH GEN Motherboard

MSI PRO B760M-A WIFI DDR5 12th/13th Gen Motherboard - an exceptional motherboard meticulously crafted to optimize compatibility and performance with the latest 12th and 13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors. Outfitted with an LGA 1700 socket, this motherboard boasts unrivaled support for the cutting-edge CPU generation.

With four DDR5 memory slots, the MSI PRO B760M-A WIFI enables a remarkable memory capacity of up to 192GB, embracing DDR5 memory speeds ranging from 4800MHz to 6800+MHz (OC) to deliver lightning-fast and efficient performance. Users can take advantage of Intel® XMP 3.0 OC and Dual-Controller Dual-Channel mode to enhance memory performance even further.

The motherboard is equipped with two HDMI™ ports and two DisplayPort ports, adhering to HDMI™ 2.1 and DP 1.4 standards, and offering a maximum resolution of 4K at 60Hz for exceptional graphics connectivity. It's important to note that the availability of these ports depends on the installed CPU, as integrated graphics are required.

The MSI PRO B760M-A WIFI caters to expandability needs with two PCI-E x16 slots, one PCI-E x1 slot, and three M.2 slots. The PCI-E x16 slots support PCIe 4.0 x16 and PCIe 3.0 x1 speeds, while the M.2 slots support PCIe 4.0 x4 and SATA modes, ensuring flexibility for storage and expansion requirements.

Connectivity options are abundant, including USB 2.0, USB 3.2 Gen1 Type A, USB 3.2 Gen1 Type C, and USB 3.2 Gen2 Type A ports, offering comprehensive compatibility. The motherboard also features a Realtek® RTL8125BG 2.5G LAN for high-speed wired networking and Intel® Wi-Fi 6E, supporting MU-MIMO TX/RX on 2.4GHz, 5GHz, and 6GHz* (160MHz) frequencies, for blazing-fast wireless connectivity.

To enhance the audio experience, the motherboard incorporates the Realtek® ALC897 Codec, delivering 7.1-channel high-definition audio, providing an immersive sound experience for users.
