| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors | |
| Chipset | AMD B850 Chipset | |
| BIOS | Flash BIOS Button, MSI Click BIOS 5 | |
| Form Factor | mATX (243.84mm x 243.84mm) | |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slots (PCI_E1 Gen PCIe 5.0 up to x16, PCI_E2 Gen PCIe 3.0 up to x1) 1x PCI-E x1 slot |
|
| M.2 Socket | 2x M.2 Slots • M2_1: PCIe 5.0 x4 (Ryzen 9000/7000 Series) • M2_2: PCIe 4.0 x4 (Ryzen 8000 Series) Supports 2280/2260 Devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Supports DDR5 8200(OC)/5600(JEDEC) MHz Supports AMD EXPO and Dual-Channel Mode |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 and 1x DisplayPort 1.4 Supports up to 4K@60Hz |
|
| Max Shared Memory | Depends on APU/CPU with integrated graphics |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 Port (Up to 4K 60Hz) | |
| Internal I/O Ports | 1x ATX Power Connector 2x CPU Power Connectors 1x PCIe Power Connector (8-pin) 1x CPU Fan Header 1x Combo Fan Header (Pump/Sys) 3x System Fan Headers 2x Front Panel Connectors 1x Chassis Intrusion Header 1x Front Audio Header 1x COM Port Header 1x Tuning Controller Connector 3x Addressable RGB Headers (JARGB_V2) 1x RGB LED Header (JRGB) 1x TPM 2.0 Header 4x USB 2.0 Headers 2x USB 5Gbps Type-A Headers 1x USB 10Gbps Type-C Header |
|
| Display Port (s) | 1x DisplayPort 1.4 (Up to 4K 60Hz) | |
| USB (s) | Rear I/O: • 3x USB 5Gbps Type-A • 3x USB 10Gbps Type-A • 2x USB 10Gbps Type-C Front I/O: • 4x USB 2.0 • 2x USB 5Gbps Type-A • 1x USB 10Gbps Type-C |
|
| LAN Port (s) | Realtek 8126VB 5G LAN | |
| Supported Storage | 2x M.2 Slots (PCIe 5.0 x4 & PCIe 4.0 x4) 4x SATA 6Gb/s Ports Supports RAID 0, 1, 10 for SATA and RAID 0, 1 for NVMe |
|
| Audio | 1x Front Audio (JAUD) | |
| Wireless Communication module | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) Bluetooth 5.4 Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (up to 2.9Gbps) |
|
| TPM (Trusted Platform Module ) | 1x TPM Pin Header (Supports TPM 2.0) | |
| RAID | Supports RAID 0, 1, 10 for SATA Supports RAID 0, 1 for NVMe |
|
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED PCIe 5.0 Ready DDR5 Memory Overclocking Wi-Fi 7 & 5G LAN MSI Click BIOS 5 |
|
| Bundled Software | MSI Center, MSI LAN Manager, Audio Boost Software | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

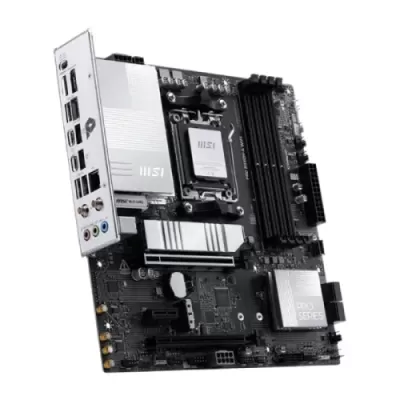

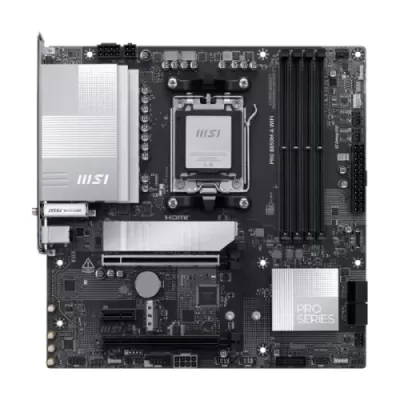

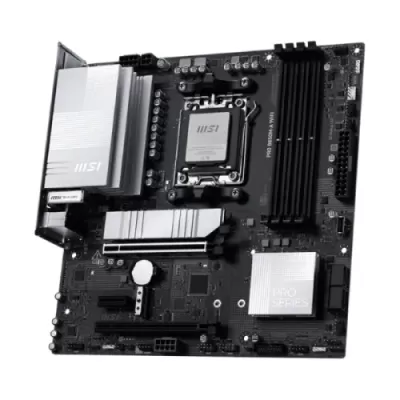

The MSI PRO B850M-A WIFI AM5 mATX Motherboard is designed for professionals and gamers who demand top-tier performance, connectivity, and reliability. Equipped with the latest AMD B850 chipset and support for Ryzen 9000, 8000, and 7000 series processors, this motherboard is built to handle next-generation workloads with ease. Whether you’re building a high-performance workstation or a powerful gaming setup, the MSI PRO B850M-A ensures fast speed, stable power delivery, and modern connectivity in a compact mATX form factor.
This motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors, offering unmatched multi-core performance for gaming, rendering, and content creation. The AM5 socket brings PCIe 5.0 and DDR5 memory compatibility, ensuring cutting-edge speed and efficiency for all your computing needs.
With four DDR5 DIMM slots supporting up to 256GB of memory and speeds up to 8200MHz (OC), the MSI PRO B850M-A WIFI delivers incredible memory bandwidth and responsiveness. It supports AMD EXPO technology for easy memory overclocking, allowing users to push performance limits effortlessly.
For faster data transfer and smoother system performance, the motherboard includes two M.2 slots—one supporting PCIe 5.0 x4 and another supporting PCIe 4.0 x4. This allows ultra-fast NVMe SSD performance for boot drives and storage applications. It also supports RAID 0, 1, and 10 for both M.2 and SATA devices, ensuring optimal storage configuration flexibility.
The MSI PRO B850M-A WIFI motherboard comes with Realtek 8126VB 5G LAN for lightning-fast wired networking and the latest Wi-Fi 7 + Bluetooth 5.4 combo for cutting-edge wireless communication. Whether you’re gaming online or transferring large files, enjoy lag-free, high-speed connectivity that keeps you productive anywhere.
Featuring one HDMI 2.1 port and one DisplayPort 1.4, the motherboard supports up to 4K resolution at 60Hz. These outputs deliver stunning clarity and color accuracy for modern displays and professional monitors—ideal for creators, developers, and gamers alike.
Powered by the Realtek ALC897 codec, the MSI PRO B850M-A WIFI provides 7.1-channel high-definition audio. Enjoy crystal-clear sound quality whether you’re in a gaming session, editing videos, or streaming your favorite content.
MSI integrates high-quality power phases and durable components for consistent performance under heavy loads. The motherboard also features multiple fan headers, pump connectors, and EZ Debug LEDs for effortless monitoring and cooling customization. Its advanced PCB design ensures stability even during extreme overclocking.
With multiple USB ports including USB 10Gbps Type-C and Type-A connectors, this motherboard ensures maximum compatibility with modern peripherals. Additionally, its PCIe 5.0 x16 slot supports the latest GPUs, while extra PCIe 4.0 and PCIe 3.0 slots provide room for future upgrades such as capture cards or sound cards.
Designed with a sleek black PCB and refined silver accents, the MSI PRO B850M-A WIFI looks professional and modern. Its reinforced slots and solid capacitors guarantee long-term reliability and protection against electrical surges, making it ideal for both business and home use.
Potaka IT is one of the most trusted computer hardware retailers in Bangladesh, offering authentic MSI motherboards at competitive prices. When you purchase the MSI PRO B850M-A WIFI AM5 mATX Motherboard from Potaka IT, you get guaranteed original products, expert after-sales support, and nationwide delivery. Build your dream PC today with confidence and the latest technology — only from Potaka IT.
The latest price of MSI PRO B850M-A WIFI AM5 Motherboard in Bangladesh is 27,000৳. You can buy the MSI PRO B850M-A WIFI AM5 Motherboard at best price from our website or visit any of our showrooms.
