| Basic Information | ||
| Supported CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD X870 | |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
|
| Memory | ||
| Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Supported Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
|
| LAN Port (s) | Realtek® 8126VB 5G LAN | |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
|
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| RAID | Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
| Others | ||
| Special Features | OPERATING SYSTEM: Support for Windows® 11 64-bit LED FEATURE: 4x EZ Debug LED |
|

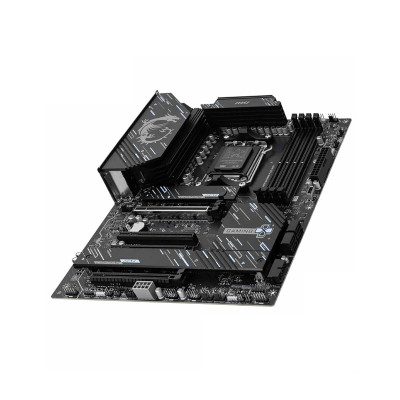

The MSI X870 Gaming Plus WiFi AM5 Motherboard is built for gamers, creators, and power users who want rock-solid stability, lightning-fast connectivity, and full support for AMD’s latest Ryzen 9000, 8000, and 7000 Series desktop processors. With PCIe 5.0, DDR5 RAM support, Wi-Fi 7, and a sleek modern design, this is more than just a motherboard—it’s the foundation for your high-performance AMD gaming PC.
Optimized for AMD’s Ryzen 9000, 8000, and 7000 Series processors, the MSI X870 Gaming Plus delivers top-tier performance using the AM5 socket and the advanced AMD X870 chipset. Whether you're gaming, streaming, or editing, expect seamless multitasking and future-ready capabilities.
Enjoy ultra-fast data speeds with PCIe 5.0 x16 support and DDR5 RAM up to 8200+ MT/s. The motherboard offers 4 DDR5 slots, with a max capacity of 256GB, perfect for demanding games and creative workloads. Overclocking is fully supported, along with AMD EXPO profiles for easy performance tuning.
For ultra-fast loading and file access, this board includes three M.2 slots, including one that supports PCIe 5.0 x4 NVMe SSDs. Whether you’re building a gaming PC or a workstation, the MSI X870 ensures blazing storage speeds and RAID 0/1/5 support for added performance and data protection.
Stay ahead of the game with Wi-Fi 7 for blazing wireless speeds up to 5.8Gbps, plus Realtek 8126VB 5G LAN for ultra-low latency networking. Perfect for competitive gamers, streamers, or anyone who needs fast, stable internet at all times. Equipped with a wide range of USB ports, including USB4 (40Gbps), USB 3.2 Gen 2x2 (20Gbps), and multiple USB 3.2 Gen 1 and Gen 2 ports, the MSI X870 Gaming Plus makes it easy to connect high-speed storage, peripherals, and external displays—future-proofing your setup for years to come.
Display options include HDMI 2.1 and USB-C with DisplayPort 1.4, both capable of outputting 4K at 60Hz. This is especially useful for multi-monitor setups, creators using high-res displays, or gamers running integrated graphics on Ryzen APUs.
With six system fan headers, a dedicated CPU fan, and combo support for AIO water cooling, this motherboard is built to keep your system cool and stable during intense workloads or extended gaming sessions. Integrated RGB and addressable headers make it easy to sync your lighting setup. From EZ Debug LEDs for quick troubleshooting to TPM 2.0 support for enhanced Windows 11 security, the board is designed to offer smooth usability and a hassle-free building experience. Additional connectors for fans, RGB, and audio give builders full customization control.
At Potaka IT, we only offer genuine MSI motherboards, straight from authorized distributors. You can buy with confidence knowing your product is original and warranty-protected. We provide the best deals on MSI motherboards in Bangladesh, with regular offers and bundle discounts. Whether you're upgrading your rig or building from scratch, you’ll get value for every taka spent. Need help choosing the right components or compatibility advice? Our knowledgeable team at Potaka IT is here to assist you before and after your purchase. We're not just sellers—we're PC enthusiasts like you.
The latest price of MSI X870 Gaming Plus WiFi Motherboard in Bangladesh is 39,000৳. You can buy the MSI X870 Gaming Plus WiFi Motherboard at best price from our website or visit any of our showrooms.
