| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors | |
| Chipset | AMD X670 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x THB_U4 add-in card connector 1 x power button 1 x reset button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|

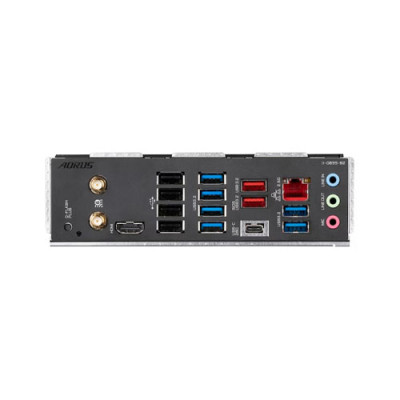

| USB (s) | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 4 x SATA 6Gb/s connectors |
|
| Audio | 3 x audio jacks | |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

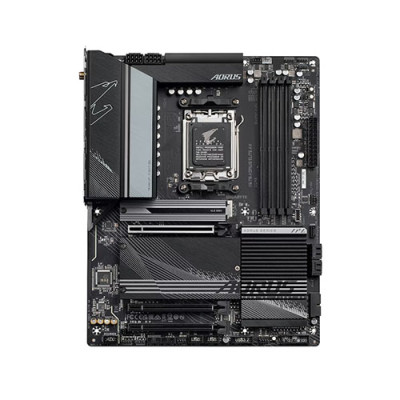

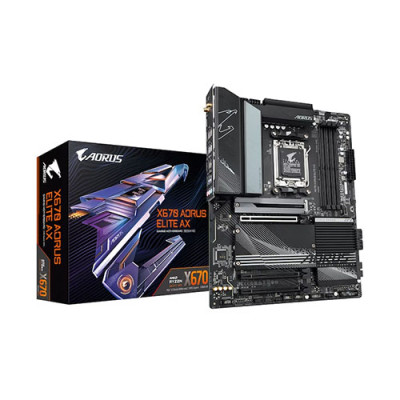

The GIGABYTE X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard is built for serious gamers and PC enthusiasts who demand top-tier performance, future-proof technology, and unmatched connectivity. Designed for AMD Ryzen 7000 and 8000 series processors on the AM5 socket, this high-end ATX motherboard delivers blazing-fast speed, superior stability, and robust expansion options. Whether you're building a next-gen gaming rig or a high-performance workstation, the X670 chipset ensures your system can handle it all with ease.
Compatible with AMD Ryzen 7000 and 8000 series processors, providing powerful performance on the latest AM5 socket platform.
Supports up to 128GB of ultra-fast DDR5 RAM, including EXPO and XMP profiles for optimized overclocking and multitasking.
Equipped with 4x M.2 slots and 4x SATA ports, offering support for PCIe 5.0 and PCIe 4.0 NVMe SSDs, along with RAID 0, 1, and 10 configurations.
Features multiple PCIe x16 slots with support for AMD CrossFire, making it ideal for multi-GPU setups and heavy graphical workloads.
Integrated Realtek high-definition audio supports 2/4/5.1/7.1-channel configurations for rich, immersive sound quality.
Offers a wide range of USB options including USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1, and USB 2.0 ports, both front and rear.
Includes Realtek 2.5GbE LAN for ultra-fast wired connections and Wi-Fi 6E with Bluetooth 5.2 for seamless wireless connectivity.
Multiple fan headers, water cooling support, and RGB LED strip headers allow for personalized cooling and lighting solutions.
Designed with durable ATX form factor components, offering long-lasting reliability and compatibility with most PC cases.
Enjoy advanced utilities like Q-Flash, Smart Backup, and support for the GIGABYTE Control Center for easier system management.
Potaka IT offers the best price in Bangladesh for the GIGABYTE X670 AORUS ELITE AX DDR5 motherboard, along with genuine warranty and trusted customer service. Whether you're upgrading or building a new setup, buying from Potaka IT ensures authentic products, expert support, and fast delivery. Don’t miss the chance to power up your PC with one of the most advanced AMD AM5 motherboards available in BD today!
The latest price of GIGABYTE X670 AORUS ELITE AX Motherboard in Bangladesh is 42,500৳. You can buy the GIGABYTE X670 AORUS ELITE AX Motherboard at best price from our website or visit any of our showrooms.
