| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD X670 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
|
| Display Port (s) | 1x DisplayPort | |
| USB (s) | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 5 x Audio jacks | |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 |
|
| RAID | AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 | |
| Others | ||
| Special Features | TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization - DIGI+ VRM - Turbo app - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

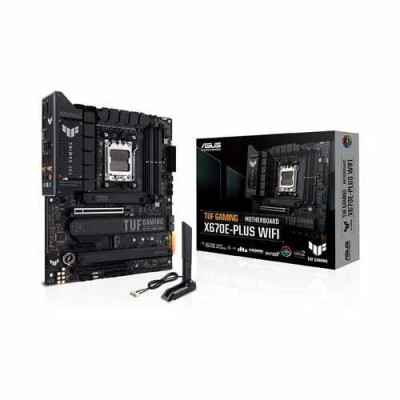

The Asus TUF GAMING X670E-PLUS WIFI DDR5 AM5 ATX Motherboard is built for gamers and power users who demand top-tier performance, durability, and seamless connectivity. Powered by the AMD X670 chipset and designed for the latest Ryzen 8000 and 7000 Series processors, this ATX motherboard is ready for next-gen performance. With DDR5 memory support, Wi-Fi 6E, PCIe 5.0 slots, and enhanced cooling solutions, this board is tailored for both high-speed gaming and professional workloads.
Designed for the latest Ryzen CPUs, this motherboard supports the high-performance AM5 socket to deliver exceptional processing power and multi-core efficiency.
Take full advantage of cutting-edge technologies with PCIe 5.0 support for ultra-fast data transfer and future-proof hardware compatibility.
Experience next-generation memory speeds with DDR5 support up to 6400+(OC), optimized for stability and performance with EXPO and OptiMem II technology.
Stay cool under pressure with VRM heatsinks, multiple fan headers, and an AIO pump header, all managed through AI Cooling II in Armoury Crate.
Enjoy premium audio with high-fidelity playback, noise reduction features, and superior audio shielding that deliver immersive gaming and media experiences.
Get blazing-fast and stable internet connections with integrated Wi-Fi 6E and a Realtek 2.5Gb LAN port enhanced by ASUS LANGuard for superior networking.
Supports multiple ultra-fast M.2 NVMe SSDs including PCIe 5.0, PCIe 4.0, and SATA modes, ensuring seamless multitasking and lightning-fast storage access.
Built to last with military-grade TUF components, stainless-steel back I/O, DIGI+ VRM, ESD guards, and SafeSlot Core+ to ensure long-term durability.
Convenient features like M.2 Q-Latch, Q-DIMM, and Q-LED simplify the building and troubleshooting process, ideal for first-time builders and enthusiasts alike.
Personalize your rig with ASUS AURA Sync, offering multiple RGB headers and support for Addressable Gen 2 lighting for vibrant, synchronized effects.
If you're looking for the ultimate gaming motherboard with future-ready features, the Asus TUF GAMING X670E-PLUS WIFI is a powerful, durable choice. Whether you're building a high-performance gaming rig or a professional workstation, this motherboard covers all the essentials and more. At Potaka IT, we offer the best deals and authentic products in Bangladesh, ensuring a worry-free purchase experience with a 3-year manufacturer warranty. Buy your Asus TUF GAMING X670E-PLUS WIFI DDR5 AM5 ATX Motherboard now from Potaka IT and upgrade your system with confidence.
The latest price of Asus TUF GAMING X670E-PLUS WIFI DDR5 in Bangladesh is 47,500৳. You can buy the Asus TUF GAMING X670E-PLUS WIFI DDR5 at best price from our website or visit any of our showrooms.
