| Case Types | ||
| Type | Mid-Tower | |
| Motherboard Support | E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX | |
| Tempered Glass Panel | Yes | |
| External Features | ||
| Color(s) | Black | |
| Pre- Installed Fans | Front: 1 x 120 mm Rear: 1 x 120 mm |
|
| Fan Support | Front: 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included) Top: 2 x 120 mm / 2 x 140 mm Bottom: 2 x 120 mm Rear: 1 x 120 mm (1 x F120Q Case Version included) |
|
| Radiator Support | Front: Up to 360 mm Top: Up to 240 mm (280mm with low-profile memory only) |
|
| Front Ports | 1 x USB 3.2 Type-A 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps) 1 x Headset Audio Jack |
|
| Drive Bays | 2.5": 2 3.5": 1 |
|
| Material | SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only) | |
| I/O Port | USB 3.2 Type-A: 1 USB 3.2 Gen2x2 Type-C: 1 |
|
| Dimensions | Height (with feet): 465 mm / 18.31 in Width: 225 mm / 8.86 in Depth: 430 mm / 16.93 in |
|
| Expansion Slots | Standard: 7 | |
| Weight | 7.28 kg / 16.04 lb | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 170 mm | |
| Maximum Graphics Card Length | Up to 410 mm | |
| Maximum PSU Length | Up to 200 mm | |
| Warranty | ||
| Warranty | No Warranty | |

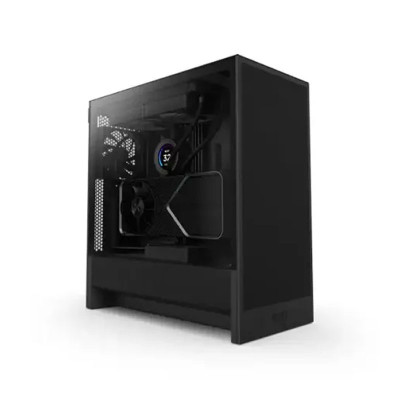

The NZXT H5 Flow 2024 Compact Mid-Tower Airflow Casing Black is designed for PC builders who want a clean black gaming case with flexible cooling options and generous room for modern components. It supports E-ATX motherboards up to 277mm wide, ATX, Micro-ATX, and Mini-ITX boards, while offering graphics card clearance of up to 410mm and CPU cooler clearance of 170mm. With tempered glass, multiple fan mounting positions, and front USB-C connectivity rated at 20Gbps, this NZXT PC case balances a compact mid-tower format with practical build flexibility.
Planning a gaming PC with strong airflow starts with choosing a case that accommodates the right fan and radiator layout. The NZXT H5 Flow 2024 supports up to three 120mm or two 140mm fans at the front, two 120mm or 140mm fans at the top, two 120mm fans at the bottom, and one 120mm fan at the rear. One 120mm F120Q case-version fan is listed for the front and another for the rear.
For builders considering an AIO liquid CPU cooler, the case supports radiators up to 360mm at the front and up to 240mm at the top. A 280mm top radiator is supported only with low-profile memory. Compared with a case offering fewer radiator mounting choices, this layout gives you more flexibility when planning your cooling configuration. Always check radiator thickness, fan dimensions, and component clearance before installation.
The NZXT H5 Flow 2024 offers up to 410mm of graphics card clearance, a maximum CPU cooler height of 170mm, and PSU clearance of up to 200mm. These dimensions help when selecting a large gaming GPU, a tower air cooler, or a full-size power supply. Its seven standard expansion slots and support for four motherboard sizes make it suitable for a range of gaming and productivity builds.
The black finish combines SGCC steel with ultra-clear tempered glass and dark-tinted tempered glass. The glass panel gives your completed PC a visible showcase, while the black exterior works well with understated or RGB-equipped components. Front I/O includes one USB 3.2 Type-A port, one USB 3.2 Gen 2x2 Type-C port rated at 20Gbps, and a headset audio jack.
| Specification | Details |
|---|---|
| Case Type | Compact Mid-Tower |
| Color | Black |
| Motherboard Support | E-ATX up to 277mm wide, ATX, Micro-ATX, Mini-ITX |
| Panel | Tempered glass |
| Included Fans | 1 x 120mm front, 1 x 120mm rear |
| Front Fan Support | 3 x 120mm or 2 x 140mm |
| Top Fan Support | 2 x 120mm or 2 x 140mm |
| Bottom Fan Support | 2 x 120mm |
| Rear Fan Support | 1 x 120mm |
| Radiator Support | Front up to 360mm; top up to 240mm, or 280mm with low-profile memory only |
| GPU Clearance | Up to 410mm |
| CPU Cooler Clearance | Up to 170mm |
| PSU Clearance | Up to 200mm |
| Drive Bays | 2 x 2.5-inch, 1 x 3.5-inch |
| Front I/O | 1 x USB 3.2 Type-A, 1 x USB 3.2 Gen 2x2 Type-C (20Gbps), headset audio jack |
| Expansion Slots | 7 |
| Dimensions | 465 x 225 x 430mm (H x W x D, with feet) |
| Weight | 7.28kg |
| Materials | SGCC steel, ultra-clear tempered glass, dark-tinted tempered glass |
This case is worth considering if you're building a gaming PC, upgrading an existing desktop, or planning a system with a large graphics card and front-mounted 360mm radiator. Before buying in Bangladesh, measure your components and confirm your preferred motherboard fits the E-ATX width limit. Also check the radiator and fan layout against RAM height and other installed hardware.
Compare more options in PC casings, browse NZXT casings, explore the NZXT collection, or shop PC components to plan your next build.
It supports E-ATX boards up to 277mm wide, ATX, Micro-ATX, and Mini-ITX motherboards.
Yes. It supports a radiator up to 360mm at the front. Top radiator support is up to 240mm, with 280mm support only when using low-profile memory.
The listed maximum graphics card clearance is 410mm. Check the exact GPU dimensions and installation space before purchasing.
Visit Potaka IT to check the product listing and explore other PC cases and components for your build.
The latest price of NZXT H5 Flow 2024 Mid Tower Case in Bangladesh is 10,500৳. You can buy the NZXT H5 Flow 2024 Mid Tower Case at best price from our website or visit any of our showrooms.
