| Key Features | ||
| Continuous Power | 200W | |
| Fan Size | 120mm | |
| Others | 1x IDE, 2x SATA / 550mm; P8 (4+4) / 450mm; 24-pin (20+4P) / 400mm | |
| Output | ||
| Total Power | 200W | |
| Modular Type | Non-Modular | |
| AC Input | 220V | |
| Connector | ||
| CPU | 1x P8 (4+4-pin) / 450mm | |
| SATA | 2x / 550mm | |
| Molex | 1x IDE / 550mm | |
| Main Power | 24-pin (20+4P) / 400mm | |
| Input | ||
| Voltage | 220V | |
| Warranty Information | ||
| Manufacturing Warranty | 2 Years | |

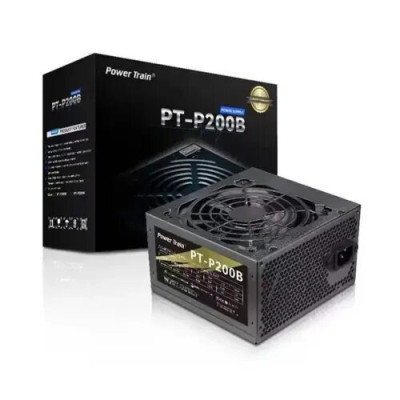

The Potaka IT Power Train PT-P200B 200W Power Supply is a practical power solution for basic desktop computers, office PCs, entry-level systems, and low-power builds. It provides 200W of continuous power with a 220V input and uses a non-modular cable design for straightforward installation. The built-in 12cm temperature-control fan helps manage heat during normal operation, while the included 24-pin, P8 4+4-pin, SATA, and IDE connectors provide compatibility with commonly used desktop components.
If you are building or upgrading a budget desktop, the PT-P200B can be paired with suitable processors, storage devices, and other PC components when the system's total power requirement is within its 200W capacity.
The main advantage of the Power Train PT-P200B is its simple, budget-focused design. With a 200W continuous power rating, it is intended for systems that do not require a high-capacity gaming PSU. Its non-modular construction keeps the cable layout straightforward, making it suitable for basic desktop assembly and replacement applications.
The PT-P200B delivers up to 200W of continuous power, making it appropriate for low-power desktop configurations. It is better suited to office computers, everyday productivity systems, basic home PCs, and other builds without demanding dedicated graphics hardware.
A built-in 12cm temperature-control fan provides active cooling for the power supply. The larger 120mm fan format is designed to help move heat away from the PSU during operation while adjusting cooling according to temperature conditions.
The Power Train PT-P200B includes a 24-pin (20+4P) main motherboard connector, P8 (4+4) processor power connector, two SATA connectors, and one IDE connector. The listed cable lengths are 400mm for the 24-pin connector, 450mm for the P8 connector, and 550mm for the SATA/IDE connection configuration.
| Name | Details |
|---|---|
| Brand | Power Train |
| Model | PT-P200B |
| Type | Power Supply |
| Continuous Power | 200W |
| Input Voltage | 220V |
| Modular Type | Non-Modular |
| Fan Size | 12cm / 120mm |
| Cooling | Temperature-Control Fan |
| IDE Connector | 1x IDE |
| SATA Connector | 2x SATA |
| P8 Connector | 4+4 Pin / 450mm |
| Main Power Connector | 24 Pin (20+4P) / 400mm |
| SATA/IDE Cable Length | 550mm |
The connector and power specifications above are consistent with current Bangladesh listings for the Power Train PT-P200B.
When choosing a power supply, the most important consideration is whether its available power is sufficient for the complete PC configuration. The PT-P200B is designed around a 200W continuous power capacity, so it is most appropriate for low-power systems rather than performance-oriented gaming PCs.
For a basic desktop using integrated graphics, modest processor power consumption, standard desktop memory, and one or more low-power storage drives, a 200W PSU can be a practical option when the calculated system requirement remains comfortably below the PSU's rated capacity.
The PT-P200B is a sensible consideration for everyday computing systems used for web browsing, document work, accounting, educational applications, media playback, and other light workloads.
If an older desktop needs a replacement power supply and its hardware requirements are within the 200W range, this model provides the essential motherboard, CPU, SATA, and IDE connectivity needed by many conventional desktop configurations.
The PT-P200B is not intended as a high-power gaming PSU. A modern gaming PC with a dedicated graphics card, high-performance processor, multiple drives, or other power-hungry components can require substantially more power. For such systems, calculate the total power requirement and select a PSU with appropriate capacity and suitable headroom.
For a gaming build, users should generally consider a higher-capacity power supply rather than selecting a 200W unit based only on the PC's purchase budget.
The Power Train PT-P200B uses a non-modular design, meaning its power cables are permanently attached to the PSU. This approach is straightforward for budget PC assembly because there is no need to connect individual modular cables before installation.
The trade-off is that cable management can be less flexible than with a modular or semi-modular PSU. For a basic desktop where simplicity and cost are more important than advanced cable management, the non-modular design can be perfectly practical.
Choose the Power Train PT-P200B 200W Power Supply if you need a budget-oriented PSU for a low-power desktop and your complete system's power demand is comfortably within 200W.
Before buying, check your motherboard connector, processor power connector, storage connectors, and estimated total system consumption. If your PC includes a dedicated graphics card or high-performance processor, compare the required wattage carefully instead of choosing a PSU solely by price.
Compared with 300W, 450W, 500W, or higher-capacity PSUs, the PT-P200B is focused on lower-power computing. Its 200W capacity makes it more appropriate for simple desktop systems, while higher-wattage models provide additional capacity for more demanding processors, graphics cards, storage devices, and future upgrades.
In other words, the PT-P200B is best selected when the PC genuinely has a low power requirement. Choosing a higher-wattage PSU is preferable when you plan to install a dedicated GPU or upgrade to significantly more powerful hardware.
The Power Train PT-P200B has a continuous power capacity of 200W, making it suitable for basic and low-power desktop computer systems.
No. The PT-P200B is a non-modular power supply, so its power cables are permanently attached to the PSU.
The PT-P200B features one 12cm or 120mm temperature-control fan for active cooling.
The Power Train PT-P200B includes one IDE connector, two SATA connectors, a P8 (4+4-pin) processor power connector, and a 24-pin (20+4P) motherboard power connector.
It can only be considered for a gaming PC when the complete system has a genuinely low power requirement. Most modern gaming systems with dedicated graphics cards should use a higher-capacity PSU selected according to the CPU and GPU power requirements.
Yes. Its 200W capacity and basic connector selection make it a practical option for compatible low-power office, home, educational, and everyday desktop computers.
The listed input voltage for the PT-P200B is 220V.
The Power Train PT-P200B 200W Power Supply is a budget-focused choice for users looking for a straightforward PSU for a low-power desktop computer. With 200W continuous power, a 120mm temperature-control fan, non-modular construction, and essential motherboard, CPU, SATA, and IDE connectors, it covers the fundamental requirements of many basic PC configurations.
For buyers in Bangladesh, the key consideration is matching the PSU to the actual power requirements of the complete system. If your PC is a basic low-power configuration and does not require a dedicated high-power graphics card, the PT-P200B can be a practical replacement or entry-level power supply option.
For current availability and the latest Potaka IT pricing in Bangladesh, check the product listing before purchasing.
The latest price of Power Train PT-P200B 200W Power Supply in Bangladesh is 1,500৳. You can buy the Power Train PT-P200B 200W Power Supply at best price from our website or visit any of our showrooms.
