| Basic Information | ||
| Supported CPU | Dual AMD EPYC™ 7003/7002 Series Processors, Socket SP3 | |
| Chipset | System on Chip | |
| BIOS | AMI 256Mb SPI Flash EEPROM | |
| Form Factor | EATX | |
| Expansion Slots | ||
| M.2 Socket | 1 x PCIe 4.0 x4, M-Key, 2280/22110 | |
| Memory | ||
| Type | DDR4 3200MHz Registered ECC | |
| Slots | 16 DIMM Slots | |
| Supported Memory | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB DDR4 ECC | |
| Maximum Memory | Up to 4TB | |
| Graphics | ||
| Graphics | ASPEED AST2600 BMC | |
| Connector & Ports | ||
| Internal I/O Ports | 4 x USB 3.0 headers, 4 x PCIe 4.0 NVMe x4, 2 x SATA DOM power connectors, TPM 2.0 header, 8 x 4-pin fan headers | |
| USB (s) | 2 x USB 2.0 rear, 4 x USB 3.0 (2 rear, 2 headers) | |
| LAN Port (s) | 2 x 10GBase-T LAN, 1 x RJ45 Dedicated IPMI LAN | |
| Supported Storage | 10 x SATA3 6Gbps, 1 x M.2 PCIe 4.0 x4, 4 x PCIe 4.0 NVMe x4 | |
| VGA (s) | 1 x VGA | |
| TPM (Trusted Platform Module ) | 1 x TPM 2.0 Header | |
| Others | ||
| Special Features | Dual 10GbE LAN, IPMI 2.0, KVM-over-LAN, Virtual Media, PCIe 4.0, Dual Socket SP3 | |
| Bundled Software | Super Doctor 5, SUM | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

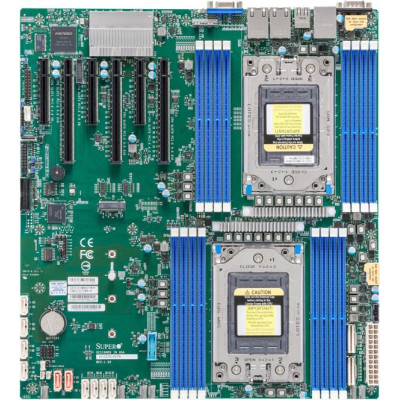

The Supermicro H12DSi-NT6 is a high-performance EATX server motherboard designed for dual AMD EPYC 7002 and 7003 series processors. With support for up to 4TB of Registered ECC DDR4-3200 memory, dual 10GbE networking, PCIe 4.0 expansion, NVMe connectivity, and dedicated IPMI 2.0 management, it is built for demanding server, virtualization, storage, and compute workloads. For businesses and professionals building an enterprise-class system in Bangladesh, this motherboard offers a strong foundation for a scalable dual-socket platform.
The platform combines high memory capacity with server-focused remote management and extensive expansion options. It is especially suitable for data-intensive workloads where reliable ECC memory, high-speed networking, multiple storage interfaces, and flexible PCIe connectivity are important.
The H12DSi-NT6 supports two AMD EPYC 7002 and 7003 series processors through dual Socket SP3 CPU sockets. This dual-socket design is suitable for compute-heavy applications that benefit from high core density and parallel processing. The motherboard supports processors with up to 64 cores, making it a practical choice for virtualization, server applications, enterprise workloads, and professional computing environments.
With 16 DIMM slots and support for up to 4TB of Registered ECC DDR4-3200 SDRAM, this motherboard is designed for large-memory server configurations. ECC memory helps correct single-bit errors and detect double-bit errors, making it valuable for systems where data reliability and operational stability matter.
The Supermicro H12DSi-NT6 integrates two 10GBase-T LAN ports using Broadcom networking controllers, providing high-speed wired connectivity for server and data-intensive environments. A dedicated IPMI LAN port provides remote management capabilities through IPMI 2.0, including KVM-over-LAN and virtual media support.
For remote server administration, this means many management tasks can be handled without direct physical access to the system.
The motherboard provides three PCIe 4.0 x16 slots and three PCIe 4.0 x8 slots for expansion cards. It also includes an M.2 PCIe 4.0 x4 interface supporting 2280 and 22110 M-key drives, along with four internal PCIe 4.0 NVMe x4 connections.
With 10 SATA3 6Gbps ports, four NVMe connections, two SATA DOM power connectors, and an M.2 interface, the H12DSi-NT6 is well suited to storage-heavy server builds. This flexibility allows system builders to combine multiple SATA devices with high-speed NVMe storage depending on workload and capacity requirements.
| Name | Details |
|---|---|
| Brand | Supermicro |
| Model | H12DSi-NT6 |
| Form Factor | EATX |
| Dimensions | 12" x 13.05" (30.5cm x 33.1cm) |
| CPU Support | Dual AMD EPYC 7002 / 7003 Series Processors |
| CPU Socket | Socket SP3 |
| Maximum Cores | Up to 64 Cores |
| Chipset | System on Chip |
| Memory Slots | 16 DIMM Slots |
| Maximum Memory | Up to 4TB Registered ECC DDR4-3200 SDRAM |
| Memory Type | DDR4 3200MHz Registered ECC, 288-pin |
| Memory Voltage | 1.2V |
| SATA | 10 x SATA3 6Gbps |
| LAN | 2 x 10GBase-T LAN |
| Dedicated Management LAN | 1 x RJ45 IPMI LAN |
| USB | 2 x USB 2.0 rear, 4 x USB 3.0 (2 rear, 2 headers) |
| Video Output | 1 x VGA via ASPEED AST2600 BMC |
| PCIe Slots | 3 x PCIe 4.0 x16, 3 x PCIe 4.0 x8 |
| M.2 | 1 x PCIe 4.0 x4, 2280/22110, M-Key |
| NVMe | 4 x PCIe 4.0 NVMe x4 internal ports |
| IPMI | IPMI 2.0 with KVM-over-LAN and virtual media |
| BMC | ASPEED AST2600 |
| Fan Headers | Up to 8 x 4-pin PWM fan headers |
| TPM | TPM 2.0 Header |
| BIOS | AMI 256Mb SPI Flash EEPROM |
| Operating Temperature | 10°C to 35°C |
| Warranty | 3 Years |
Systems that require large memory pools can take advantage of the motherboard's 16 DIMM slots and 4TB maximum memory capacity. This makes it appropriate for virtualization, databases, analytics, scientific workloads, and other applications where memory capacity can directly affect performance and scalability.
Dual 10GbE networking provides significantly higher bandwidth than conventional 1GbE connectivity, making the board a strong fit for servers handling large file transfers, network storage, virtualization traffic, and other bandwidth-intensive workloads.
IPMI 2.0 with dedicated LAN connectivity helps administrators monitor and manage compatible systems remotely. KVM-over-LAN and virtual media support can simplify troubleshooting, maintenance, installation, and recovery tasks when physical access to the server is inconvenient.
The combination of PCIe 4.0 x16 and x8 slots gives server builders room to add high-speed networking, storage controllers, accelerator cards, or other professional expansion hardware as system requirements evolve.
The Supermicro H12DSi-NT6 is best suited to professional and enterprise environments where dual CPU support, large ECC memory capacity, fast networking, and remote management are priorities. Typical use cases include virtualization servers, enterprise applications, database workloads, storage servers, high-performance computing systems, development infrastructure, and compute-intensive professional environments.
It is also a strong option for builders who need a scalable AMD EPYC server platform rather than a conventional single-socket desktop motherboard.
Compared with a standard desktop motherboard, the H12DSi-NT6 is focused on server-level expansion, reliability, memory capacity, and remote administration. Its dual-socket EPYC architecture, Registered ECC DDR4 support, 10GbE networking, IPMI 2.0, and PCIe 4.0 connectivity make it better suited to demanding infrastructure workloads than consumer-oriented platforms.
For customers in Bangladesh looking for a Supermicro dual AMD EPYC motherboard with 4TB ECC memory support and dual 10GbE LAN, the H12DSi-NT6 provides a feature-rich foundation for building a high-capacity enterprise server.
Before purchasing, confirm that your selected AMD EPYC processors are compatible with Socket SP3 and that the chassis, power supply, cooling system, memory modules, and expansion hardware are appropriate for an EATX dual-socket server platform.
For the latest AMD EPYC 7003 processors with AMD 3D V-Cache technology, Supermicro specifies BIOS version 2.3 or newer. Always check processor, memory, chassis, and firmware compatibility for the exact server configuration you plan to build.
The H12DSi-NT6 supports dual AMD EPYC 7002 and 7003 series processors using Socket SP3.
It supports up to 4TB of Registered ECC DDR4-3200 memory across 16 DIMM slots.
Yes. It features two integrated 10GBase-T LAN ports plus a dedicated RJ45 LAN port for IPMI management.
Yes. The motherboard provides four internal PCIe 4.0 NVMe x4 connections and one M.2 PCIe 4.0 x4 interface supporting 2280 and 22110 drives.
Yes. It supports IPMI 2.0 with dedicated LAN connectivity, KVM-over-LAN, and virtual media features for remote server management.
The motherboard uses the EATX form factor and measures 12 x 13.05 inches (30.5 x 33.1cm).
Yes. Its dual EPYC processor support, large ECC memory capacity, high-speed networking, and multiple PCIe and NVMe interfaces make it well suited to virtualization and other resource-intensive server workloads.
You can check the availability and current pricing of the Supermicro H12DSi-NT6 at Potaka IT, along with other server and PC hardware products available in Bangladesh.
When a server build requires dual AMD EPYC processing, massive ECC memory capacity, high-speed networking, fast PCIe 4.0 storage, and reliable remote management, the Supermicro H12DSi-NT6 is engineered for that role. Its enterprise-oriented feature set makes it a practical foundation for scalable servers, virtualization platforms, storage systems, and compute-heavy professional workloads.
Choose the Supermicro H12DSi-NT6 when your priority is a flexible dual-socket AMD EPYC server motherboard capable of supporting large memory configurations, multiple expansion devices, fast networking, and professional remote administration.
Explore compatible Motherboards and Processors at Potaka IT. For AMD-focused server builds, you can also compare AMD Processors, SSD / Storage, and Power Supply options.
The latest price of Supermicro H12DSi NT6 Dual AMD EPYC Server Motherboard in Bangladesh is 180,000৳. You can buy the Supermicro H12DSi NT6 Dual AMD EPYC Server Motherboard at best price from our website or visit any of our showrooms.
