| Basic Information | ||
| Supported CPU | Single AMD EPYC 7002/7003 Series Processor, Socket SP3, Up to 64 Cores | |
| Chipset | System on Chip | |
| BIOS | AMI 256Mb SPI Flash EEPROM | |
| Form Factor | ATX | |
| Expansion Slots | ||
| PCI | 5 x PCIe 4.0 x16, 2 x PCIe 4.0 x8 | |
| M.2 Socket | 2 x M.2 PCIe 4.0 x4, Supports 2280/22110, M-Key | |
| Memory | ||
| Type | DDR4 3200MHz Registered ECC, 288-pin | |
| Slots | 8 x DIMM Slots | |
| Supported Memory | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB Registered ECC DDR4 | |
| Maximum Memory | Up to 2TB | |
| Graphics | ||
| Graphics | ASPEED AST2500 BMC | |
| Connector & Ports | ||
| Internal I/O Ports | 2 x SlimSAS x8, 2 x USB 3.0 Headers, 7 x 4-pin Fan Headers, 1 x TPM 2.0 Header, Chassis Intrusion Header | |
| USB (s) | 6 x USB 3.0 (4 Rear + 2 via Header) | |
| LAN Port (s) | 2 x 10GBase-T LAN, 1 x Dedicated RJ45 IPMI LAN | |
| Supported Storage | SATA3 6Gbps and NVMe via 2 x SlimSAS x8, 2 x PCIe 4.0 x4 M.2 | |
| VGA (s) | 1 x VGA | |
| TPM (Trusted Platform Module ) | 1 x TPM 2.0 Header | |
| Others | ||
| Special Features | IPMI 2.0, KVM-over-LAN, Virtual Media, ASPEED AST2500 BMC, Dual 10GbE LAN, ECC Memory Support, Dual Cooling Zone, PWM Fan Control, Chassis Intrusion Detection | |
| Bundled Software | Super Doctor 5, Watch Dog, NMI, SUM | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

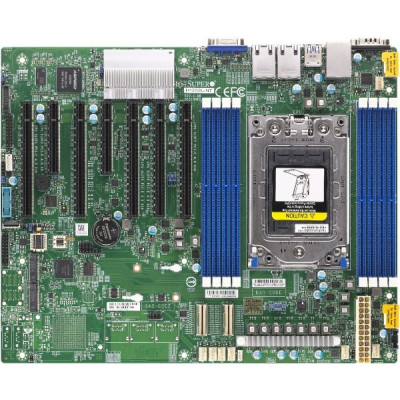

The Supermicro H12SSL-NT is a high-performance AMD EPYC server motherboard designed for enterprise servers, virtualization, data centers, storage systems, and demanding professional workloads. Supporting a single AMD EPYC 7002 or 7003 Series processor on the SP3 socket, this ATX server motherboard delivers up to 64 CPU cores, ECC DDR4 memory support, PCIe 4.0 expansion, dual 10GbE networking, and advanced IPMI remote management.
For businesses building powerful server infrastructure in Bangladesh, the H12SSL-NT provides excellent compute performance, memory reliability, storage flexibility, and high-speed networking. Its dual 10GBase-T LAN is ideal for data-intensive environments, while extensive PCIe 4.0 connectivity provides flexibility for enterprise expansion. Explore compatible Motherboard options and professional PC Component solutions from Potaka IT.
| Feature | Details |
|---|---|
| Processor Support | Single AMD EPYC 7002/7003 Series Processor |
| CPU Socket | SP3 |
| Maximum CPU Cores | Up to 64 Cores |
| Memory Slots | 8 DIMM Slots |
| Maximum Memory | Up to 2TB Registered ECC DDR4 3200MHz |
| Memory Architecture | 8-Channel |
| Network | Dual 10GBase-T LAN via Broadcom BCM57416 |
| Management | IPMI 2.0, KVM-over-LAN, Virtual Media |
| BMC | ASPEED AST2500 |
| PCIe Slots | 5 x PCIe 4.0 x16 and 2 x PCIe 4.0 x8 |
| M.2 | 2 x PCIe 4.0 x4, 2280/22110, M-Key |
| Storage Connectivity | 2 x SlimSAS x8 Hybrid with SATA3 or NVMe Support |
| USB | 6 x USB 3.0 |
| Form Factor | ATX |
| Dimensions | 12 x 9.6 inches (30.5 x 24.4 cm) |
The Supermicro H12SSL-NT supports a single AMD EPYC 7002 or 7003 Series processor, making it an excellent choice for compute-intensive workloads where high core counts and dependable server performance are essential. With support for processors offering up to 64 cores, this platform can handle virtualization, private cloud infrastructure, databases, enterprise applications, and high-performance computing.
For AMD EPYC 7003 processors featuring AMD 3D V-Cache technology, BIOS version 2.3 or newer is required. The SP3 server platform provides a reliable foundation for scalable AMD-based infrastructure.
The H12SSL-NT features eight DIMM slots and officially supports up to 2TB of Registered ECC DDR4 3200MHz memory with an eight-channel memory bus. ECC memory helps correct single-bit errors and detect double-bit errors, helping improve reliability during continuous server workloads.
This makes the motherboard suitable for memory-intensive virtualization, large databases, analytics, and multi-user enterprise environments. Browse compatible RAM Desktop solutions while ensuring the selected modules meet the required Registered ECC DDR4 specifications.
The Supermicro H12SSL-NT includes dual 10GBase-T LAN powered by the Broadcom BCM57416 network controller. High-bandwidth networking is useful for fast file transfers, virtualization clusters, NAS environments, storage servers, and enterprise network infrastructure.
A dedicated RJ45 IPMI LAN port separates remote server management from normal network traffic. This helps administrators manage compatible systems remotely without requiring physical access to the server.
The integrated ASPEED AST2500 BMC supports IPMI 2.0 with KVM-over-LAN and virtual media functionality. Administrators can remotely monitor and manage the server, access the system console, and perform important management tasks from another location.
This feature is valuable for data centers, office server rooms, remote infrastructure, and businesses requiring efficient server administration. The platform also supports Super Doctor 5 and additional system management features.
The H12SSL-NT provides seven PCIe 4.0 expansion slots, including five x16 slots and two x8 slots. This provides extensive flexibility for configuring enterprise hardware according to workload requirements.
The board also includes two PCIe 4.0 x4 M.2 slots supporting 2280 and 22110 M-Key drives. For high-speed storage, explore compatible SSD options based on your server configuration.
Two SlimSAS x8 connectors provide flexible hybrid SATA and NVMe connectivity, allowing storage configurations based on application requirements. This is useful for file servers, database servers, virtualization hosts, and storage-heavy enterprise workloads.
The combination of PCIe 4.0 M.2 support and SlimSAS connectivity gives system builders greater flexibility when designing storage for performance, capacity, and scalability.
The Supermicro H12SSL-NT is built for users who need a genuine server-class motherboard rather than a conventional desktop platform. It combines AMD EPYC processor support, Registered ECC memory, dual 10GbE networking, dedicated IPMI management, and extensive PCIe 4.0 expansion.
It is an excellent choice for businesses, IT professionals, system integrators, hosting environments, and organizations building reliable AMD EPYC servers. Check compatible Processor options and verify compatibility with the AMD EPYC SP3 platform before building your system.
The high-core-count AMD EPYC platform, eight-channel ECC memory architecture, and extensive PCIe expansion make this motherboard suitable for virtualization hosts running multiple virtual machines.
Large ECC memory capacity, PCIe 4.0 connectivity, and high-speed networking make the H12SSL-NT suitable for demanding database and enterprise application workloads.
Dual 10GbE LAN and flexible SATA and NVMe connectivity make this motherboard a strong foundation for high-performance file servers and shared storage environments.
IPMI with KVM-over-LAN allows administrators to remotely access and manage compatible server systems, making it useful for branch offices, colocated servers, and data center deployments.
Before buying the Supermicro H12SSL-NT, confirm your processor, memory, chassis, storage, cooling, and expansion requirements. This motherboard requires a compatible AMD EPYC 7002 or 7003 Series CPU using Socket SP3 and Registered ECC DDR4 memory.
You should also plan your build based on required network speed, storage interfaces, PCIe expansion cards, cooling requirements, and power delivery. For a complete server build, consider compatible Power Supply options according to your system requirements.
For the latest Supermicro H12SSL-NT server motherboard price in Bangladesh and product availability, choose Potaka IT for professional IT and server hardware solutions.
The Supermicro H12SSL-NT supports one AMD EPYC 7002 or AMD EPYC 7003 Series processor using Socket SP3, including CPUs with up to 64 cores.
The official specification for the H12SSL-NT lists support for up to 2TB of Registered ECC DDR4 3200MHz memory across eight DIMM slots. Although the supplied product title mentions 4TB, the official motherboard specification lists 2TB as the maximum supported memory capacity.
Yes. It includes dual 10GBase-T LAN ports powered by the Broadcom BCM57416 network controller.
Yes. The motherboard supports Registered ECC DDR4 3200MHz memory and provides single-bit error correction and double-bit error detection when compatible ECC memory is installed.
Yes. It supports IPMI 2.0, KVM-over-LAN, and virtual media through the integrated ASPEED AST2500 BMC with a dedicated IPMI LAN port.
Yes. AMD EPYC processor support, up to 64 CPU cores, eight-channel ECC memory, PCIe 4.0 expansion, and dual 10GbE networking make it suitable for virtualization and enterprise server workloads.
The latest price of Supermicro H12SSL NT AMD EPYC Server Motherboard in Bangladesh is 0৳. You can buy the Supermicro H12SSL NT AMD EPYC Server Motherboard at best price from our website or visit any of our showrooms.
