| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H470 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm ) |
|
| Expansion Slots | ||
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|
| USB (s) | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

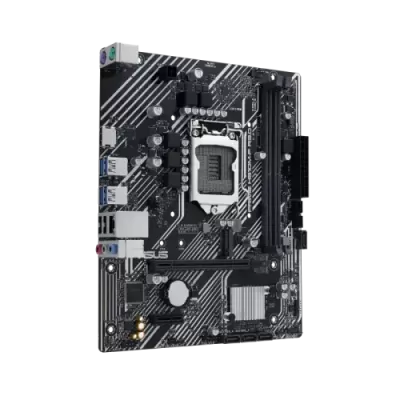

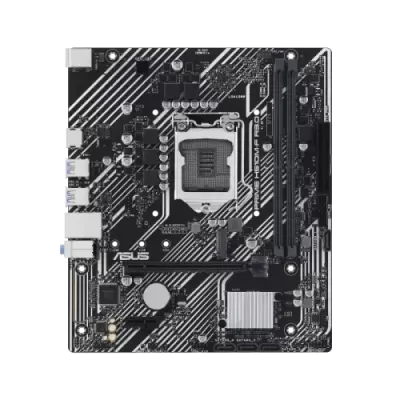

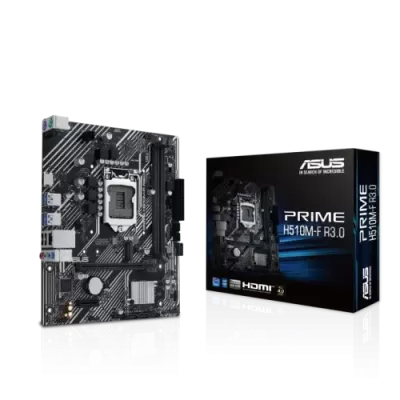

The ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard is a reliable and performance-focused solution for Intel 10th and 11th Generation processors. Designed for gamers, office users, and PC builders, this motherboard offers stable performance, advanced connectivity, and efficient cooling support. With support for DDR4 RAM up to 64GB, PCIe expansion, M.2 storage, and ASUS exclusive protection features, this motherboard is a perfect choice for building a modern desktop PC in Bangladesh.
The ASUS PRIME H510M-F R3.0 supports Intel LGA1200 socket processors including Intel Core, Pentium Gold, and Celeron CPUs. It is compatible with both 10th and 11th Generation Intel processors, delivering excellent processing power for gaming, multitasking, content creation, and daily computing tasks. The motherboard also supports Intel Turbo Boost Technology for improved system responsiveness.
This ASUS motherboard features 2 DIMM slots with support for up to 64GB DDR4 RAM. Users can enjoy memory speeds up to 3200MHz overclocked for smooth multitasking and faster system performance. The dual-channel memory architecture and Intel XMP support help maximize memory efficiency for demanding applications and gaming.
The ASUS PRIME H510M-F R3.0 comes with 1 M.2 slot and 4 SATA 6Gb/s ports, allowing users to build a fast and efficient storage setup. The M.2 slot supports PCIe 3.0 x4 SSDs for high-speed data transfer and quick system boot times. It also includes a PCIe x16 slot for installing dedicated graphics cards and a PCIe x1 slot for additional expansion devices.
The motherboard includes an HDMI port that supports high-resolution display output. With compatible 11th Gen Intel processors, users can enjoy 4K resolution at 60Hz for better visual clarity and smooth media playback. This makes it suitable for entertainment, office work, and multimedia setups.
Equipped with Realtek 1Gb Ethernet, the ASUS PRIME H510M-F R3.0 provides stable and fast wired network connectivity for gaming and online work. The motherboard also features Realtek 7.1 Surround Sound High Definition Audio for immersive sound quality. ASUS audio shielding and dedicated PCB layers help reduce interference for a cleaner audio experience.
This motherboard offers multiple USB connectivity options including USB 5Gbps and USB 2.0 ports for connecting peripherals and storage devices. It also features front USB headers for additional connectivity. The rear panel includes HDMI, Ethernet, audio jacks, PS/2 ports, and multiple USB ports for convenient setup.
ASUS has integrated its advanced 5X Protection III technology into this motherboard to ensure long-term durability and stable operation. Features like DIGI+ VRM, LANGuard, SafeSlot Core, Overvoltage Protection, and Stainless-Steel Back I/O help protect the system from power fluctuations and hardware damage.
The ASUS PRIME H510M-F R3.0 includes aluminum heatsinks and fan headers for efficient cooling performance. ASUS Q-DIMM, Q-Slot, and Q-LED Core features make installation and troubleshooting easier for PC builders. The user-friendly UEFI BIOS and ASUS EZ Flash 3 also simplify system configuration and BIOS updates.
Potaka IT offers genuine ASUS motherboards at competitive prices in Bangladesh. You will get authentic products, reliable customer support, and fast delivery service across the country. Potaka IT is trusted for providing the latest PC components, gaming products, and accessories with excellent after-sales service. Order the ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard from Potaka IT for a dependable PC building experience.
The latest price of ASUS PRIME H510M-F R3.0 Micro-ATX Motherboard in Bangladesh is 0৳. You can buy the ASUS PRIME H510M-F R3.0 Micro-ATX Motherboard at best price from our website or visit any of our showrooms.
