| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H470 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
|
| Expansion Slots | ||
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates | |
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| VGA (s) | 1x VGA port | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

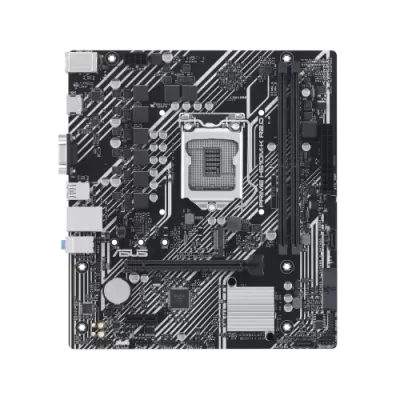

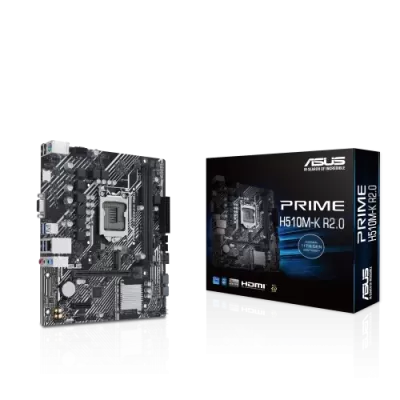

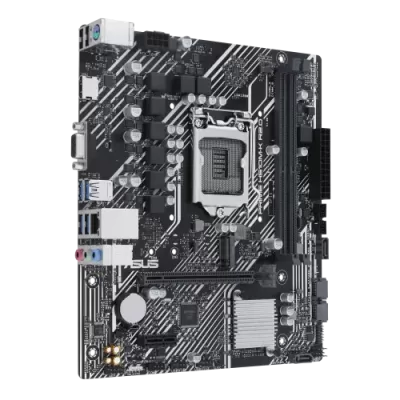

The ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard is designed for desktop PC builders who need dependable everyday performance, flexible storage options and compatibility with supported Intel processors. Featuring an LGA1200 socket, two DDR4 memory slots supporting up to 64GB, an M.2 storage slot and Gigabit Ethernet, this ASUS motherboard provides a practical foundation for home, office and entry-level gaming computers. If you are planning to build or upgrade an Intel-based desktop, explore the available processors to find a compatible CPU for your configuration.
The ASUS PRIME H510M-K R2.0 uses the Intel LGA1200 socket and supports compatible 10th and 11th Gen Intel desktop processors. Depending on your intended workload, you can choose an appropriate supported CPU for office applications, web browsing, programming, multimedia use or a budget gaming setup.
Before buying a processor, check the exact CPU model against the motherboard's official support list. Socket compatibility alone does not guarantee that every processor will work, and integrated graphics availability varies by CPU. A processor without integrated graphics requires a compatible dedicated graphics card if you need display output.
For office work and everyday computing, a compatible Intel Core i3 or supported Pentium Gold processor may be sufficient. Users running multiple applications, development tools or more demanding workloads may benefit from a compatible Core i5 or another supported processor that meets their performance requirements. Review the supported Intel processors and confirm CPU compatibility before purchasing.
This ASUS Micro-ATX motherboard features two DDR4 DIMM slots and supports up to 64GB of non-ECC, unbuffered memory in a dual-channel configuration. Supported memory data rates include 2133MHz, 2400MHz, 2666MHz, 2800MHz, 2933MHz, 3000MHz and 3200MHz, depending on the processor and memory configuration. Higher listed speeds may require overclocking or an appropriate memory profile.
For a general-purpose desktop, a suitable memory configuration can help keep everyday applications responsive and support multitasking. Users working with development environments, numerous browser tabs or creative applications should select their RAM capacity according to actual workload requirements.
When selecting memory, check the motherboard's memory compatibility information and install matched modules where appropriate to use dual-channel operation. Browse compatible desktop RAM options before finalizing your build.
The ASUS PRIME H510M-K R2.0 provides one M.2 Key M slot for compatible 2242, 2260 and 2280 storage devices. The slot supports PCIe 3.0 x4 and SATA modes, making it important to check the drive's interface before installation. The motherboard also includes four SATA 6Gb/s ports for compatible SATA SSDs and hard drives.
An M.2 SSD can reduce boot and application-loading times compared with many traditional hard drives, while additional SATA storage is useful for documents, media files, project backups and larger data collections. Actual performance depends on the selected drive, interface and system configuration.
Compare compatible SSD storage options to choose the capacity and interface that suit your needs. Check the drive specifications before installation, as M.2 describes a physical form factor and does not by itself guarantee NVMe compatibility.
The motherboard includes one PCIe x16 expansion slot for a compatible dedicated graphics card. With a supported 11th Gen Intel processor, the slot can operate at PCIe 4.0 x16; with a supported 10th Gen processor, it operates at PCIe 3.0 x16. The actual performance of a graphics card depends on the card, processor and complete system configuration.
For everyday desktop use, the HDMI and VGA outputs can support compatible displays when the installed processor includes integrated graphics. The available display output and maximum resolution depend on the processor and supported graphics capabilities. A dedicated graphics card is required when the processor lacks integrated graphics or when your chosen workload needs separate graphics hardware.
For users planning a gaming or graphics-focused desktop, compare compatible graphics cards and check physical clearance, power-supply requirements and overall system compatibility before purchasing.

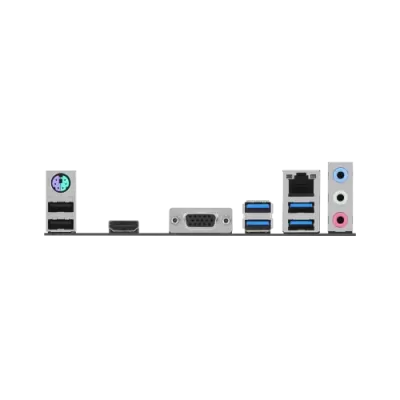

The rear I/O panel includes four USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports. Internal headers support up to two additional USB 3.2 Gen 1 ports and four additional USB 2.0 ports through compatible case connections. The number of accessible front-panel ports depends on your PC case and its available connectors.
The onboard Realtek Gigabit Ethernet port supports wired network connections for internet access, file transfers, remote work and online communication. Network performance also depends on your router, network service and connected devices.
The motherboard uses a Realtek 7.1-channel High Definition Audio CODEC and supports up to 24-bit/192kHz playback. Its audio features include shielding, premium audio capacitors and dedicated audio PCB layers. Full multichannel output requires compatible speakers, connections and an appropriate case audio module.
ASUS 5X Protection III brings together hardware-level protection features intended to help safeguard compatible system components. The listed features include DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core and stainless-steel back I/O. These features contribute to the board's protection design, but they do not eliminate the need for a suitable power supply, proper installation, adequate cooling and safe operating conditions.
The motherboard also includes a CPU fan header and a chassis fan header for connecting compatible cooling fans. Plan your cooling setup around the selected processor, case airflow and workload to help maintain appropriate operating temperatures.
Build a desktop for document editing, spreadsheets, web browsing, video calls and routine office applications using a compatible processor, suitable DDR4 RAM and SSD storage.
The motherboard can form the basis of a computer for coding, web development, database exercises and general IT coursework. Choose the CPU, RAM and storage capacity according to the development tools and applications you intend to run.
Pair the board with a supported Intel processor and a compatible dedicated graphics card to create an entry-level or midrange gaming configuration. Gaming performance depends primarily on the chosen CPU, GPU, memory, game settings and cooling rather than the motherboard alone.
Use compatible integrated graphics or a dedicated GPU for supported video playback, streaming and general multimedia tasks. Confirm that the selected processor provides the graphics capabilities required for your display setup.
Before buying this motherboard in Bangladesh, consider the following compatibility and planning points:
If you are upgrading an existing desktop, verify the current CPU, RAM, storage and case compatibility before replacing the motherboard. A motherboard upgrade may also require checking operating-system activation, existing Windows installation requirements and any necessary driver updates.
The price of the ASUS PRIME H510M-K R2.0 Motherboard in Bangladesh can vary with stock availability, seller pricing and warranty coverage. Check the current listing at Potaka IT for the latest price and availability before making your purchase.
When comparing motherboard prices, consider the complete package rather than price alone. Confirm the exact model revision, included accessories, warranty terms, processor compatibility and return policy. This helps you select a suitable motherboard for your planned desktop build while avoiding unexpected compatibility costs.
| Specification | Details |
|---|---|
| Brand | ASUS |
| Model | PRIME H510M-K R2.0 |
| CPU Socket | Intel LGA1200 |
| Supported Processors | Compatible 10th and 11th Gen Intel Core, Pentium Gold and Celeron processors |
| Chipset | Intel H470, according to the supplied model-specific specifications |
| Form Factor | Micro-ATX |
| Dimensions | 22.6 × 20.3 cm (8.9 × 8.0 inches), according to the supplied specifications |
| Memory Type | DDR4, non-ECC, unbuffered |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 64GB |
| Memory Speeds | 2133, 2400, 2666, 2800, 2933, 3000 (OC) and 3200 (OC) MHz, subject to CPU and configuration |
| Memory Architecture | Dual-channel; Intel XMP support |
| Expansion Slots | 1 × PCIe 4.0/3.0 x16; 1 × PCIe 3.0 x1 |
| M.2 Slot | 1 × M.2 Key M; 2242/2260/2280; PCIe 3.0 x4 and SATA modes |
| SATA Ports | 4 × SATA 6Gb/s |
| Display Outputs | 1 × HDMI, 1 × VGA |
| HDMI Capability | Up to 4K at 60Hz with supported 11th Gen CPU graphics; up to 4K at 30Hz with other supported configurations, subject to processor capabilities |
| Rear USB Ports | 4 × USB 3.2 Gen 1 Type-A; 2 × USB 2.0 Type-A |
| Front USB Header Support | Up to 2 × USB 3.2 Gen 1 and 4 × USB 2.0 ports through compatible case connections |
| Ethernet | Realtek 1Gb Ethernet |
| Audio | Realtek 7.1-channel High Definition Audio CODEC; up to 24-bit/192kHz playback |
| Fan Headers | 1 × CPU fan header; 1 × chassis fan header |
| Power Connectors | 1 × 24-pin main power; 1 × 8-pin +12V power |
| Internal Connectors | RGB, Clear CMOS, COM, front-panel audio, S/PDIF Out, speaker, system panel and SPI TPM headers |
| Protection Features | ASUS 5X Protection III, DIGI+ VRM, LANGuard, overvoltage protection and SafeSlot Core |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manufacturing Warranty | 3 years, according to the supplied information; confirm the seller's applicable warranty terms |
The motherboard supports compatible 10th and 11th Gen Intel Core processors, as well as supported Pentium Gold and Celeron processors, using the LGA1200 socket. Check the official CPU support list for the exact processor model.
It supports up to 64GB of DDR4 memory across two DIMM slots. Supported memory speeds depend on the installed processor, memory modules and system configuration.
Its M.2 Key M slot supports compatible PCIe 3.0 x4 storage devices and SATA-mode M.2 drives. Check that your chosen SSD uses a supported interface and physical size before installation.
Yes. It has one PCIe x16 slot for a compatible graphics card. The slot supports PCIe 4.0 with supported 11th Gen processors and PCIe 3.0 with supported 10th Gen processors. Check the graphics card's size and power requirements.
You can use the motherboard's display output when the installed processor includes compatible integrated graphics. A processor without integrated graphics requires a dedicated graphics card for display output.
The listed specifications include Realtek Gigabit Ethernet for wired networking but do not list built-in Wi-Fi. If wireless connectivity is required, check compatible expansion or USB adapter options.
It can be used in a compatible gaming PC with a suitable Intel processor, sufficient DDR4 memory and a compatible graphics card. Actual gaming performance depends on the selected components and game requirements.
The supplied product information states a three-year manufacturing warranty. Confirm the actual warranty coverage, conditions and service arrangements with the seller before purchasing.
The ASUS PRIME H510M-K R2.0 offers a compact motherboard platform with support for compatible Intel LGA1200 processors, up to 64GB of DDR4 memory, M.2 and SATA storage, PCIe graphics expansion, Gigabit Ethernet and practical USB connectivity. It can suit home, office, study and entry-level gaming desktops when its specifications match your component requirements.
Before finalizing your build, verify the exact model specifications, CPU support, memory compatibility, storage interface and warranty terms. For current product information and availability, visit Potaka IT.
The latest price of ASUS PRIME H510M-K R2.0 Motherboard in Bangladesh is 10,700৳. You can buy the ASUS PRIME H510M-K R2.0 Motherboard at best price from our website or visit any of our showrooms.
