| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel H610 Chipset |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
|
| Memory | ||
| Type | DDR4 |
|
| Slots | 2 x DIMM |
|
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| USB (s) | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
|
| Supported Storage | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 2 x SATA 6Gb/s ports |
|
| Audio | 3 x Audio jacks |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - EPU - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

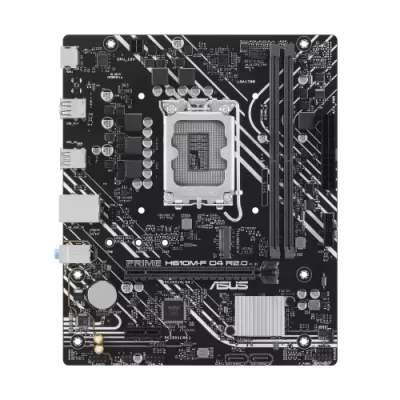

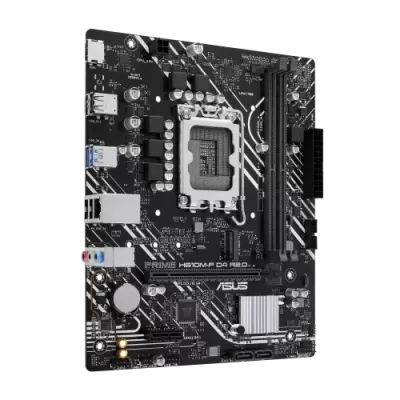

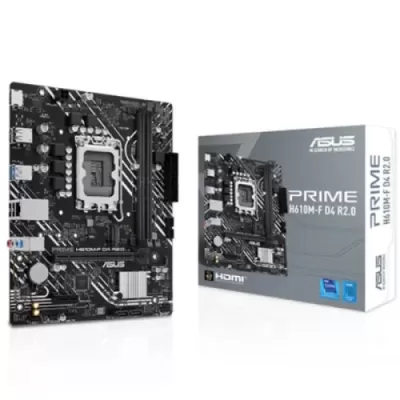

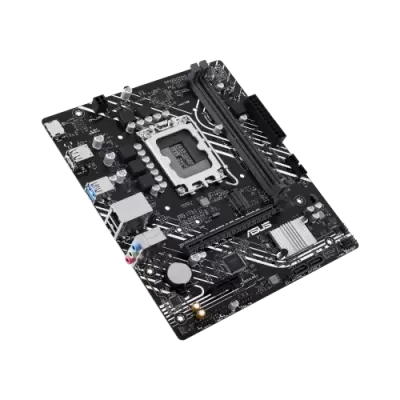

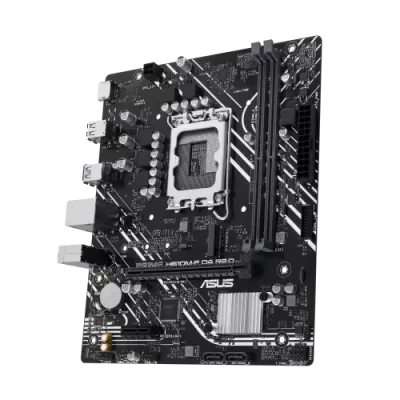

The ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard is a reliable and budget-friendly motherboard designed for Intel 14th Gen, 13th Gen, and 12th Gen processors. Built with the Intel H610 chipset, this motherboard delivers stable performance, efficient cooling, and essential connectivity features for everyday computing, office work, and entry-level gaming setups. With support for DDR4 memory, PCIe 4.0, high-speed M.2 storage, and ASUS 5X Protection III technology, it offers excellent durability and performance for modern PC users in Bangladesh.
The ASUS PRIME H610M-F D4 R2.0 motherboard supports Intel LGA1700 socket processors including Intel Core 14th Gen, 13th Gen, and 12th Gen CPUs along with Pentium Gold and Celeron processors. It is optimized for stable daily performance and supports Intel Turbo Boost Technology for faster processing power during demanding workloads.
This ASUS DDR4 motherboard comes with 2 DIMM slots supporting up to 64GB DDR4 RAM. It supports multiple memory frequencies including 3200MHz, 3000MHz, 2933MHz, and more. The dual-channel memory architecture ensures smooth multitasking, faster application loading, and improved system responsiveness for gaming and productivity tasks.
The ASUS PRIME H610M-F D4 R2.0 features one PCIe 4.0 x16 slot for modern graphics cards, allowing faster data transfer and improved gaming performance. It also includes one M.2 slot supporting PCIe 3.0 x4 NVMe SSDs for high-speed storage performance. Additionally, the motherboard provides two SATA 6Gb/s ports for extra storage devices.
The motherboard includes an HDMI port with support for 4K resolution at 60Hz through HDMI 2.1. This feature delivers sharp visuals and smooth video playback, making it suitable for entertainment, office tasks, and multimedia applications.
The ASUS PRIME H610M-F D4 R2.0 is equipped with Realtek 1Gb Ethernet for stable and fast wired internet connectivity. It also features Realtek 7.1 Surround Sound High Definition Audio for immersive sound quality during gaming, movies, and music playback. ASUS premium audio capacitors and audio shielding help reduce noise and improve audio clarity.
ASUS has integrated 5X Protection III technology into this motherboard for enhanced durability and safety. Features like DIGI+ VRM, LANGuard, SafeSlot Core, overvoltage protection, and stainless-steel back I/O improve long-term reliability. The aluminum heatsink design helps maintain stable temperatures during extended use.
This mATX motherboard offers multiple USB connectivity options including USB 5Gbps ports and USB 2.0 ports for connecting peripherals and storage devices. Internal headers provide support for additional USB ports, cooling fans, and front panel connectivity. Its compact micro-ATX form factor makes it ideal for small and efficient PC builds.
Potaka IT offers genuine ASUS motherboards at competitive prices in Bangladesh. You will get authentic products, reliable customer support, fast delivery service, and updated PC components for gaming and professional use. Potaka IT is a trusted destination for building custom PCs, upgrading hardware, and buying the latest ASUS motherboard solutions in Bangladesh.
The latest price of ASUS PRIME H610M-F D4 R2.0 LGA1700 mATX Motherboard in Bangladesh is 0৳. You can buy the ASUS PRIME H610M-F D4 R2.0 LGA1700 mATX Motherboard at best price from our website or visit any of our showrooms.
