| Basic Information | ||
| Chipset | Intel B760 | |
| Memory | ||
| Supported Memory | Supports Dual Channel DDR5 – 6000+(OC) / 6000(OC) /5800(OC) / 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 4 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module Support Intel® Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list. |
|
| Connector & Ports | ||
| Internal I/O Ports | 4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type-C Header (each header supports 1 USB 3.2 (Gen2) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 2 x LED Header (5V) 1 x LED Header (12V) * M.2 (E key) Wi-Fi card is not provided |
|

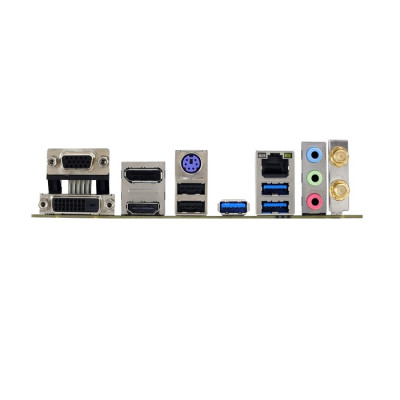

| USB (s) | 1 x USB 3.2 (Gen2) Type-C port (1 via internal header) 5 x USB 3.2 (Gen1) port (3 on rear I/Os and 2 via internal header) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal header) |
|
| LAN Port (s) | Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability |
|
| Supported Storage | Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports Intel 12th/13th/14th Processors 1 x M.2 (M Key) Socket (M2M_CPU): Supports M.2 Type 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) – NVMe SSD Intel B760 Chipset 1 x M.2 (M Key) Socket (M2M_SB): Supports M.2 Type 2242/2260/2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) – NVMe SSD 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology |
|
| Others | ||
| Special Features | VIVID LED DJ BIO-FLASHER A.I FAN LED ROCK ZONE |
|
| Bundled Software | BullGuard | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

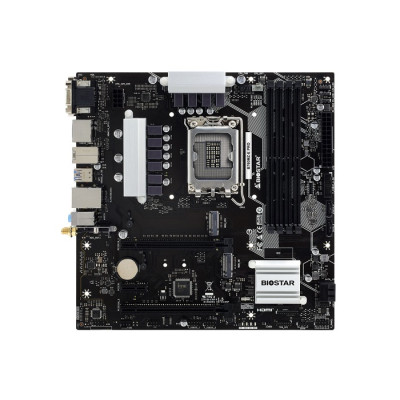

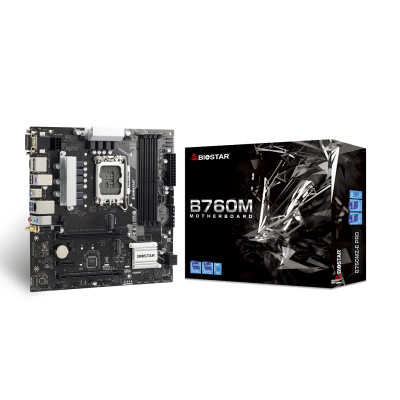

The Biostar B760MZ-E PRO DDR5 14th Gen M-ATX Motherboard is a powerful and reliable motherboard designed for modern Intel processors. Built with the Intel B760 chipset, this motherboard supports Intel 12th, 13th, and 14th Gen processors, making it a great choice for gamers, content creators, and PC enthusiasts in Bangladesh. With advanced DDR5 memory support, high-speed storage options, and fast connectivity, the Biostar B760MZ-E PRO delivers excellent performance and stability for modern desktop builds. Its Micro-ATX form factor allows it to fit into a wide range of PC cases while still offering powerful features and expansion options.
The Biostar B760MZ-E PRO motherboard supports Intel’s latest 12th, 13th, and 14th Generation processors, giving users access to cutting-edge performance and efficiency. Whether you are building a gaming PC, workstation, or everyday desktop, this motherboard provides the processing power required for multitasking, gaming, and productivity tasks.
This motherboard features four DDR5 DIMM slots and supports up to 192GB of DDR5 memory. With support for memory speeds up to 6000MHz (OC), users can enjoy faster data transfer, improved system responsiveness, and enhanced multitasking performance. It also supports Intel Extreme Memory Profile technology, allowing users to easily enable optimized memory performance.
The Biostar B760MZ-E PRO offers flexible storage support with two M.2 sockets and four SATA III ports. The M.2 slots support high-speed PCIe 4.0 NVMe SSDs, delivering ultra-fast data transfer speeds for operating systems, games, and large files. Additionally, the SATA III ports allow users to connect traditional SSDs and HDDs while supporting RAID configurations for better storage management.
This motherboard is equipped with the Realtek RTL8125B 2.5G LAN controller, providing high-speed and stable internet connectivity. The faster network speed is ideal for online gaming, streaming, large file transfers, and professional workloads that require reliable network performance.
The Biostar B760MZ-E PRO motherboard includes a wide range of USB connectivity options to support modern peripherals. It features USB 3.2 Gen2 Type-C, USB 3.2 Gen1 ports, and USB 2.0 ports through both rear I/O and internal headers. These ports allow users to connect high-speed devices such as external storage drives, gaming accessories, and other USB peripherals.
For improved thermal management, the motherboard includes dedicated connectors for CPU fans, system fans, and water cooling solutions. With built-in features like A.I FAN control, users can optimize cooling performance to maintain stable system temperatures even during heavy workloads or gaming sessions.
The Biostar B760MZ-E PRO also includes VIVID LED DJ and LED ROCK ZONE technology for RGB lighting customization. Users can personalize their PC setup with different lighting effects, creating a visually appealing gaming or workstation environment.
This motherboard includes essential connectors such as USB headers, TPM header, COM port header, LED headers, and front panel connectors. The Micro-ATX design makes it suitable for compact PC builds while still offering powerful expansion capabilities.
Potaka IT is one of the trusted destinations in Bangladesh for authentic computer components and accessories. When you purchase the Biostar B760MZ-E PRO DDR5 14th Gen motherboard from Potaka IT, you get genuine products, competitive pricing, and reliable customer support. Potaka IT offers a wide range of PC components including processors, motherboards, graphics cards, and gaming accessories. Customers can order online from anywhere in Bangladesh and enjoy convenient delivery and excellent service.
The latest price of Biostar B760MZ-E PRO Motherboard in Bangladesh is 13,700৳. You can buy the Biostar B760MZ-E PRO Motherboard at best price from our website or visit any of our showrooms.
