| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel Q570 Chipset | |
| BIOS | 128+64 Mb Flash ROM | |
| Form Factor | mATX Form Factor | |
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
|
| Expansion Slots | ||
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel 11th processors support PCIe 4.0 x16 mode Intel 10th processors support PCIe 3.0 x16 mode Intel Q570 Chipset 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | Intel 11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Q570 Chipset M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4x DIMM | |
| Supported Memory | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively. |
|
| Maximum Memory | Max. 128GB | |
| Graphics | ||
| Graphics | Graphics specifications may vary between CPU types. Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME jumper 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMITM 3 x Audio jacks 1 x Intel® I219-LM 1Gb Ethernet 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port |
|
| Display Port (s) | 2 x DisplayPort | |
| USB (s) | 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) |
|
| LAN Port (s) | 1 x Intel I219-LM 1Gb Ethernet | |
| Supported Storage | Intel 11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Q570 Chipset M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used. RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. |
|
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| TPM (Trusted Platform Module ) | TPM 2.0 IC onboard | |
| Others | ||
| Special Features | ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection |
|
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

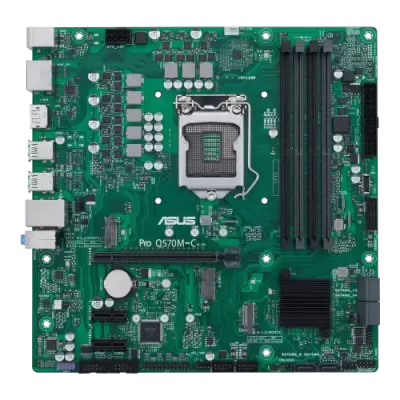

The ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard is a business-focused motherboard designed for professional desktop computers, office workstations, and reliable business PC builds. Powered by the Intel Q570 chipset, it supports compatible 10th and 11th Gen Intel Core processors, Pentium Gold processors, and Celeron processors with the LGA1200 socket. With four DDR4 memory slots supporting up to 128GB of RAM, dual M.2 slots, six SATA 6Gb/s ports, and Intel Gigabit Ethernet, this ASUS motherboard provides flexible connectivity and storage options for demanding business environments. Explore the available motherboards at Potaka IT to find suitable hardware for your next PC build.
The ASUS Pro Q570M-C/CSM combines practical expansion options, business-oriented management features, and dependable connectivity in a compact microATX design. It is suitable for organizations and individual professionals who need a configurable desktop platform for daily productivity, multitasking, and office applications.
The ASUS Pro Q570M-C/CSM is built around the Intel Q570 chipset and supports compatible 10th and 11th Gen Intel Core processors, along with supported Pentium Gold and Celeron models. Its LGA1200 socket makes it appropriate for users building or upgrading a compatible Intel desktop system.
Processor selection matters because supported memory speeds, PCIe functionality, and display output capabilities vary between CPU generations and individual processor models. Before purchasing, verify that your chosen CPU is supported by the motherboard's official CPU compatibility list and BIOS requirements.
If you are selecting a compatible processor for this motherboard, browse the available Intel processors and compare the specifications before finalizing your build.
Overall system performance depends primarily on the installed processor, memory configuration, storage device, and software workload. The motherboard provides the platform and connectivity needed to assemble a suitable system for office productivity, business applications, web development, multitasking, and other compatible workloads. It does not independently determine CPU performance.
This ASUS business motherboard features four DDR4 DIMM slots and supports up to 128GB of non-ECC, unbuffered memory. Its dual-channel memory architecture helps compatible systems handle multiple applications and simultaneous workloads efficiently.
Supported memory frequencies include 2133MHz, 2400MHz, 2666MHz, 2800MHz, 2933MHz, and up to 3200MHz through overclocking, subject to processor compatibility and configuration. Intel Extreme Memory Profile (XMP) support is also available.
For the best compatibility, check the supported memory specifications for your specific processor. Not every CPU supports every listed frequency natively, and the advertised maximum memory speed may require a compatible configuration. You can compare compatible options in the desktop RAM category.
The ASUS Pro Q570M-C/CSM provides two M.2 Key M slots for compatible 2242, 2260, and 2280 storage devices, along with six SATA 6Gb/s ports. This combination allows users to configure fast SSD storage alongside additional SATA drives for documents, applications, projects, and business data.
The first M.2 slot supports PCIe 4.0 x4 operation only with compatible 11th Gen Intel Core processors. This slot is disabled when used with other supported CPU types. The second M.2 slot supports PCIe 3.0 x4 and SATA modes, offering flexibility when selecting a compatible SSD.
One important installation detail is that using a SATA-mode drive in the second M.2 slot disables the SATA6G_2 connector. Plan your storage configuration accordingly if you intend to install several SATA drives. For compatible storage upgrades, explore the available SSD options.
The motherboard includes one PCIe x16 slot and two PCIe 3.0 x1 slots. With an 11th Gen Intel processor, the primary x16 slot supports PCIe 4.0 operation; with a compatible 10th Gen processor, it operates at PCIe 3.0. This provides expansion flexibility for compatible graphics cards and other PCIe devices, subject to physical clearance, power requirements, and device compatibility.

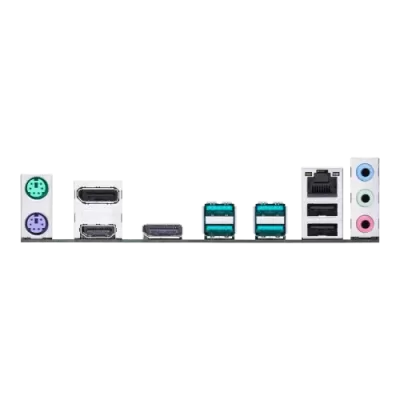

The ASUS Pro Q570M-C/CSM offers a useful selection of display, networking, peripheral, and audio connections for a professional desktop environment.
Display capabilities depend on the installed processor. Compatible 11th Gen Intel processors support HDMI 2.0 output up to 4K at 60Hz, while supported 10th Gen processors provide HDMI 1.4 output up to 4K at 30Hz. DisplayPort specifications and actual output capabilities should also be checked against the processor and display being used.
Motherboard display outputs generally require a processor with supported integrated graphics. If you install a CPU without integrated graphics, you may need a compatible discrete graphics card to obtain video output.
Designed with business environments in mind, the ASUS Pro Q570M-C/CSM includes features that help administrators and system builders manage compatible desktop deployments.
These features can be valuable for organizations managing multiple desktop computers, but actual management capabilities depend on software versions, operating systems, network configuration, and compatible hardware.
This motherboard is suitable for compatible desktop systems used for office productivity, document processing, accounting software, communication, and routine business applications. Its wired Gigabit Ethernet, multiple USB ports, and memory expansion options support a practical workplace setup.
Web developers, programmers, and technical professionals can use a compatible system built around this motherboard for coding, browser-based development, local testing, and multitasking. The ability to install up to 128GB of DDR4 memory and multiple storage devices can be useful for demanding workloads, depending on the selected processor and software requirements.
Businesses and IT teams may appreciate the onboard TPM 2.0, BIOS-related features, and support for compatible centralized management software. These capabilities make the motherboard worth considering for planned desktop deployments where compatibility and maintainability are important.
The microATX form factor is suitable for compatible compact desktop cases. Before choosing a case, verify its motherboard support, cooling options, expansion clearance, and power supply requirements.
Before buying the ASUS Pro Q570M-C/CSM motherboard in Bangladesh, consider the following points to make sure it meets your requirements.
As this is a platform for 10th and 11th Gen Intel processors, it is not compatible with newer Intel CPU generations that use different sockets. If you are building a new PC from scratch, compare the total system cost and upgrade requirements against other available platforms before making your decision.
| Specification | Details |
|---|---|
| Brand | ASUS |
| Product Model | Pro Q570M-C/CSM |
| Motherboard Type | Business motherboard |
| CPU Socket | Intel LGA1200 |
| Supported Processors | Compatible 11th Gen and 10th Gen Intel Core, Pentium Gold, and Celeron processors |
| Chipset | Intel Q570 |
| Form Factor | microATX (mATX) |
| Memory Type | DDR4 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 128GB |
| Memory Speed | Up to 3200MHz (OC), subject to CPU and memory configuration |
| Memory Architecture | Dual-channel |
| Memory Support | Non-ECC, unbuffered; Intel XMP support |
| PCIe x16 Slot | 1 × PCIe 4.0/3.0 x16, depending on processor |
| Additional Expansion Slots | 2 × PCIe 3.0 x1 |
| M.2 Slots | 2 × M.2 Key M for compatible storage devices |
| M.2 Form Factors | 2242, 2260, 2280 |
| M.2_1 Interface | PCIe 4.0 x4 with compatible 11th Gen Intel Core processors; disabled with other CPU types |
| M.2_2 Interface | PCIe 3.0 x4 and SATA modes |
| SATA Ports | 6 × SATA 6Gb/s |
| RAID Support | Intel Rapid Storage Technology support for compatible configurations |
| Graphics Outputs | 2 × DisplayPort, 1 × HDMI |
| Maximum DisplayPort Resolution | Up to 4096 × 2304 at 60Hz, subject to CPU support |
| HDMI Version | HDMI 2.0 with supported 11th Gen processors; HDMI 1.4 with supported 10th Gen processors |
| Maximum HDMI Resolution | Up to 4K at 60Hz with supported 11th Gen processors; up to 4K at 30Hz with supported 10th Gen processors |
| Audio Codec | Realtek ALC897 |
| Audio Support | Up to 7.1-channel HD audio; up to 24-bit/192kHz playback |
| LAN Controller | Intel I219-LM |
| LAN Speed | 10/100/1000Mbps Gigabit Ethernet |
| Rear USB Ports | 4 × USB 3.2 Gen 2 Type-A, 2 × USB 2.0 Type-A |
| Internal USB Connectivity | USB 3.2 Gen 1 front-panel Type-C support, 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers |
| Rear Audio Ports | 3 × audio jacks |
| Legacy Ports | 1 × PS/2 keyboard, 1 × PS/2 mouse |
| CPU Fan Header | 1 × 4-pin |
| Chassis Fan Headers | 2 × 4-pin |
| Power Connectors | 1 × 24-pin main power, 1 × 8-pin +12V CPU power |
| Security | Onboard TPM 2.0 IC |
| Business Features | ASUS Self-Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS Kit, ASUS Control Center Express support |
| Other Features | Anti-moisture design, overcurrent protection, 24/7 reliability design |
| Manufacturing Warranty | 3 years, subject to seller and regional warranty terms |
The ASUS Pro Q570M-C/CSM supports compatible 11th Gen and 10th Gen Intel Core processors, as well as supported Pentium Gold and Celeron processors using the LGA1200 socket. Check the official CPU support list before purchasing a processor.
The motherboard supports up to 128GB of DDR4 memory across four DIMM slots. Supported frequencies depend on the installed processor, memory modules, and system configuration.
Yes. Its M.2 slots support compatible PCIe NVMe SSDs. The first M.2 slot supports PCIe 4.0 x4 only with compatible 11th Gen Intel Core processors, while the second supports PCIe 3.0 x4 and SATA modes.
Yes. It has two DisplayPort outputs and one HDMI output. Supported resolutions and HDMI version depend on the installed processor and its graphics capabilities.
The motherboard provides two DisplayPort outputs and one HDMI output, but the actual number of simultaneously supported displays depends on the installed processor's graphics capabilities and the display configuration. Verify the specifications of your CPU before planning a multi-monitor setup.
It can support compatible gaming configurations with a suitable processor, memory, and graphics card. However, it is primarily a business-focused motherboard rather than a gaming-specific model. Gaming performance depends on the complete system configuration.
No. This motherboard supports DDR4 memory and is not compatible with DDR5 modules.
It uses the microATX form factor. Choose a PC case that supports microATX motherboards and provides sufficient space for your cooling system, graphics card, and other components.
The listed specifications do not identify built-in Wi-Fi. The motherboard includes Intel I219-LM Gigabit Ethernet for wired networking. If wireless connectivity is required, verify the complete product configuration or use a compatible Wi-Fi expansion solution.
The provided product information specifies a three-year manufacturing warranty. Confirm the applicable warranty coverage, conditions, and service arrangements with the seller in Bangladesh before purchasing.
If you need a business-oriented Intel motherboard with LGA1200 CPU support, expandable DDR4 memory, dual M.2 storage connectivity, multiple SATA ports, and Gigabit Ethernet, the ASUS Pro Q570M-C/CSM is worth considering for a compatible desktop build.
Before making your purchase, compare processor compatibility, memory requirements, storage configuration, and display needs to ensure the motherboard fits your intended workload. Check the current price, stock availability, and warranty terms at Potaka IT when considering this ASUS motherboard in Bangladesh.
