| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 | |
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot with Q-Rlease Slim |
|
| M.2 Socket | 2 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8400+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x HDMI™ port 1 x USB 10Gbps ports support USB Type-C® display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4a VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Extra Flow Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Back Panel I/O Ports 1 x USB 20Gbps port(s) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 3 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x FlexKey button |
|
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port(s) (1 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* * Specifications vary by CPU types. |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 |
|
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
The Asus ROG STRIX B850-I GAMING WIFI7 W AM5 Mini-ITX Motherboard is a powerful compact solution designed for gamers and PC enthusiasts who want high-end performance in a small form factor build. Powered by the AMD B850 chipset and supporting the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this Mini-ITX motherboard delivers next-generation gaming performance, ultra-fast DDR5 memory, PCIe 5.0 connectivity, and advanced Wi-Fi 7 networking. With premium ROG features, intelligent cooling, and AI-powered optimization tools, it is an ideal motherboard for building a high-performance small form factor gaming PC.
The Asus ROG STRIX B850-I GAMING WIFI7 W motherboard is built with the advanced AMD AM5 socket, allowing support for AMD Ryzen 9000, 8000, and 7000 Series processors. This ensures exceptional computing power for gaming, content creation, streaming, and productivity tasks. The AMD B850 chipset provides stable power delivery and improved system efficiency, enabling users to push their CPU performance further while maintaining system reliability.
This ROG STRIX Mini-ITX motherboard supports next-generation DDR5 memory technology for faster speeds and better system responsiveness. With two DIMM slots supporting up to 128GB of DDR5 RAM, users can take advantage of memory speeds up to 8400+ MT/s (overclocked). It also supports AMD EXPO memory profiles and ASUS Enhanced Memory Profile (AEMP), making memory overclocking easier and more stable. The dual-channel architecture improves data bandwidth, delivering smoother multitasking and better gaming performance.
Despite its compact Mini-ITX form factor, the Asus ROG STRIX B850-I GAMING WIFI7 W provides powerful expansion capabilities. It includes a PCIe 5.0 x16 slot for the latest high-performance graphics cards, ensuring maximum GPU bandwidth for modern gaming and creative workloads. The Q-Release Slim design allows easy installation and removal of GPUs without hassle. The motherboard also features two high-speed M.2 slots for NVMe SSD storage. With support for PCIe 5.0 x4 speeds on Ryzen 7000 and 9000 processors, users can experience extremely fast storage performance, reducing load times and improving overall system responsiveness. Additionally, two SATA 6Gb/s ports provide extra storage options for SSDs or traditional hard drives.
Connectivity is a major highlight of the Asus ROG STRIX B850-I GAMING WIFI7 W motherboard. It features the latest Wi-Fi 7 technology with support for 2.4GHz, 5GHz, and 6GHz frequency bands, delivering ultra-fast wireless speeds up to 2.9Gbps and lower latency for gaming and streaming. For wired networking, the motherboard includes an Intel 2.5Gb Ethernet port with ASUS LANGuard protection, ensuring faster and more stable internet connectivity. Combined with Bluetooth 5.4 support, users can easily connect wireless peripherals such as gaming headsets, keyboards, and controllers.

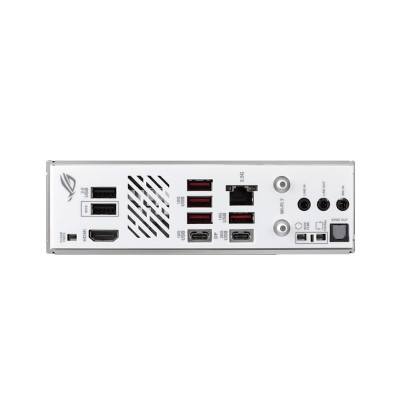

The motherboard offers extensive connectivity options including USB 20Gbps Type-C and multiple USB 10Gbps ports for fast data transfer and peripheral connectivity. The rear I/O panel includes eight USB ports, making it easy to connect gaming devices, external storage drives, and accessories. For display connectivity, the motherboard includes an HDMI 2.1 port and USB-C DisplayPort output support, allowing users to enjoy up to 4K resolution at 60Hz depending on the processor's integrated graphics capabilities.
The Asus ROG STRIX B850-I GAMING WIFI7 W motherboard delivers immersive audio powered by the ROG SupremeFX ALC4080 high-definition audio codec. With up to 120 dB signal-to-noise ratio playback and 110 dB recording quality, the system produces crystal-clear sound for gaming, streaming, and entertainment. Premium audio components including Savitech amplifiers, SupremeFX shielding technology, high-quality capacitors, and optical S/PDIF output provide rich and detailed audio output, enhancing the overall gaming experience.
To ensure stable performance during heavy workloads and gaming sessions, the motherboard includes advanced cooling solutions such as dedicated M.2 heatsinks and optimized thermal layouts. Multiple fan headers including CPU fan, chassis fan, AIO pump, and extra flow fan headers allow users to build efficient cooling systems even inside compact PC cases. ASUS EZ DIY features such as BIOS FlashBack, Clear CMOS button, pre-mounted I/O shield, SafeSlot PCIe protection, and SafeDIMM technology make PC building easier and safer for both beginners and experienced builders.
The Asus ROG STRIX B850-I GAMING WIFI7 W motherboard comes with a powerful suite of ASUS and ROG software tools designed to enhance performance and system control. Armoury Crate allows users to manage RGB lighting, cooling profiles, and system monitoring from a single interface. Additional software including Aura Sync, Aura Creator, Fan Xpert 4, GameFirst networking optimization, and Dolby Atmos audio technology provides a fully customizable and immersive gaming setup. These tools help gamers optimize system performance and create a personalized RGB lighting ecosystem.
Potaka IT is a reliable destination for authentic gaming components and high-performance PC hardware in Bangladesh. When you purchase the Asus ROG STRIX B850-I GAMING WIFI7 W AM5 Mini-ITX Motherboard from Potaka IT, you receive a genuine ASUS product with official warranty support and competitive pricing. Potaka IT is committed to delivering the latest gaming motherboards, processors, graphics cards, and PC accessories with excellent customer service. Our experienced team helps customers choose the right components for gaming PCs, workstations, and compact builds. If you are planning to build a powerful Mini-ITX gaming system, Potaka IT ensures a trusted buying experience with authentic products and dependable support.
The latest price of Asus ROG STRIX B850-I GAMING WIFI7 W Motherboard in Bangladesh is 49,500৳. You can buy the Asus ROG STRIX B850-I GAMING WIFI7 W Motherboard at best price from our website or visit any of our showrooms.
