| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z890 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 2 x PCIe 4.0 x16 slots (supports x4 mode) |
|
| M.2 Socket | 4 x M.2 slots and 4 x SATA 6Gb/s ports | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DIMM slots | |
| Supported Memory | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| Internal I/O Ports | Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header support 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
|
| Display Port (s) | 1 x DisplayPort 1.4 | |

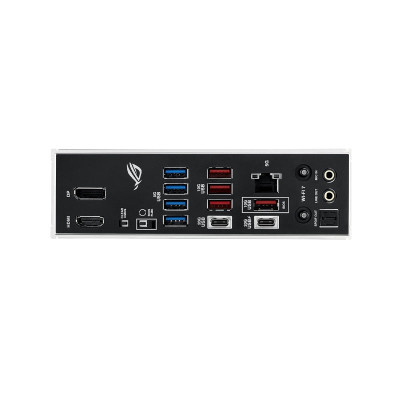

| USB (s) | Rear USB (Total 10 ports) 2 x USB 20Gbps ports (1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps (1 x USB Type-C) 1 x USB 5Gbps header support 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
|
| LAN Port (s) | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |
|
| Audio | 2 x Gold-plated audio jacks | |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. | |
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Rear USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A - Compatible with PD3.0 |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving - ASUS AI Advisor - ASUS Driver Hub - ASUS GlideX - USB Wattage Watcher - TurboV Core - Adobe Creative Cloud (Free Trial) - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

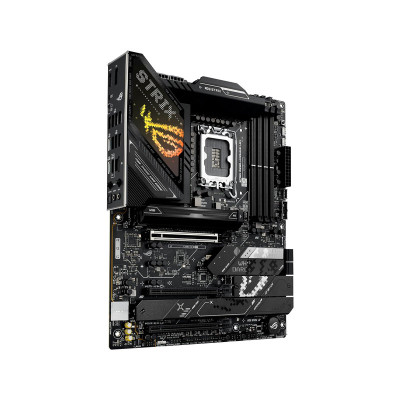

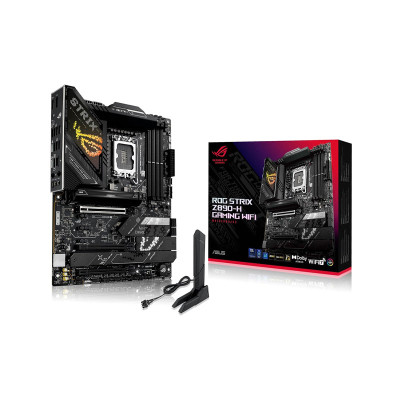

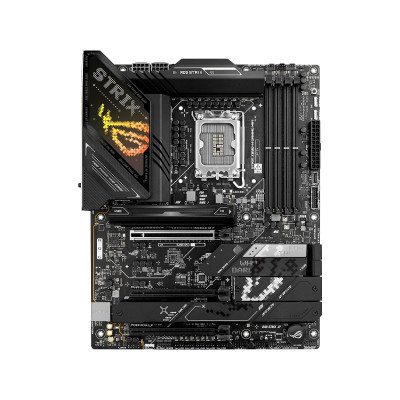

The ASUS ROG STRIX Z890-H GAMING WIFI LGA1851 ATX Motherboard is a premium gaming motherboard built for next-generation performance, advanced connectivity, and powerful system customization. Designed for Intel Core Ultra Series 2 processors, this motherboard combines PCIe 5.0 technology, DDR5 memory support, Wi-Fi 7 networking, and advanced cooling features to create the perfect platform for gaming, streaming, and professional workloads.
Powered by the Intel Z890 chipset and the latest LGA1851 socket, the ASUS ROG STRIX Z890-H GAMING WIFI delivers exceptional performance for gamers and creators. It supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, ensuring smooth multitasking, faster processing speeds, and reliable performance during demanding workloads.
This motherboard supports up to 256GB of DDR5 memory with overclocking speeds reaching 9066+ MT/s. ASUS technologies such as AEMP III, DIMM Flex, NitroPath DRAM Technology, and Intel XMP support help maximize memory efficiency and stability. Whether you are gaming competitively, editing videos, or running heavy applications, this motherboard delivers ultra-fast responsiveness and improved multitasking capabilities.
The ASUS ROG STRIX Z890-H GAMING WIFI features a PCIe 5.0 x16 slot for the latest graphics cards and high-speed expansion devices. It also includes four M.2 slots with PCIe 5.0 and PCIe 4.0 SSD support, ensuring lightning-fast storage performance for modern gaming and professional applications. Intel Rapid Storage Technology and RAID support provide additional flexibility for high-speed storage configurations and data protection.
Enjoy ultra-fast wireless networking with integrated Wi-Fi 7 technology, supporting 2.4GHz, 5GHz, and 6GHz frequency bands with speeds up to 5.8Gbps. Bluetooth 5.4 support ensures stable wireless connections for modern accessories and peripherals. The Realtek 5Gb Ethernet port provides high-speed wired networking for online gaming, streaming, and professional workloads with reduced latency and reliable performance.
Equipped with the Realtek ALC1220P 7.1-channel audio codec, this motherboard delivers high-definition sound with crystal-clear audio quality. ASUS SupremeFX shielding technology, premium capacitors, Savitech amplifier support, and gold-plated audio jacks provide immersive gaming audio and enhanced multimedia experiences for gamers and content creators.
The ASUS ROG STRIX Z890-H GAMING WIFI is engineered with efficient thermal solutions, including VRM heatsinks, M.2 heatsinks, multiple fan headers, and AI Cooling II support. These features help maintain stable temperatures during intensive gaming and overclocking sessions, ensuring reliable long-term performance.
This motherboard offers extensive connectivity with USB 20Gbps Type-C ports, USB 10Gbps ports, and Thunderbolt header support for high-speed data transfer and advanced device compatibility. It also supports up to 30W USB Power Delivery fast charging, making it convenient for charging compatible devices directly from your PC.
ASUS includes several premium features such as Q-Release, Q-Latch, BIOS FlashBack, Aura Sync RGB lighting, SafeSlot, and pre-mounted I/O shielding to simplify PC building and customization. ROG-exclusive software like Armoury Crate, Aura Sync, Fan Xpert 4, and AI Overclocking tools help users optimize system performance and personalize their gaming setup easily.
When you purchase the ASUS ROG STRIX Z890-H GAMING WIFI LGA1851 ATX Motherboard from Potaka IT, you receive a 100% genuine ASUS product at a competitive price. Potaka IT provides trusted customer support, authentic gaming components, and reliable after-sales service, ensuring a safe and hassle-free shopping experience for PC enthusiasts and gamers.
The latest price of ASUS ROG STRIX Z890-H GAMING WIFI ATX Motherboard in Bangladesh is 58,000৳. You can buy the ASUS ROG STRIX Z890-H GAMING WIFI ATX Motherboard at best price from our website or visit any of our showrooms.
