| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel B760 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th& 13th& 12th Gen) 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th& 13th& 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 7800+ OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile II (AEMP II) |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (F-AUDIO) 1 x20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt™ (USB4®) header |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 8 ports) 1 x USB 10Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®Core™Processors (14th& 13th& 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) Intel®B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 5 x Audio jacks | |
| RAID | Intel Rapid Storage Technology supportsSATA RAID 0/1/5/10. | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC CleanerTUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years warranty | |

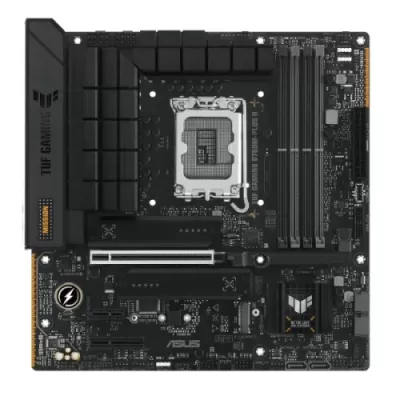

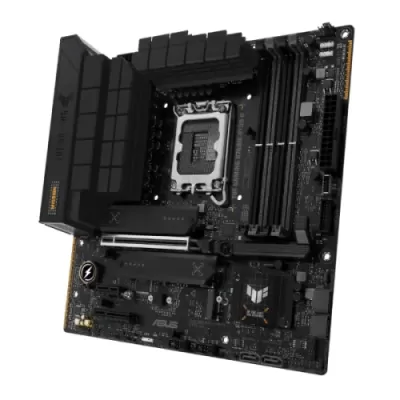

The ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard is a performance-focused DDR5 motherboard designed for gamers, content creators, PC enthusiasts, and professionals who want reliable power delivery, next-generation connectivity, and long-term durability. Built around the Intel B760 chipset, this motherboard supports Intel 14th Gen, 13th Gen, and 12th Gen processors, making it an excellent foundation for high-performance gaming PCs and productivity workstations.
Whether you are building a competitive gaming setup, a streaming machine, or a future-ready workstation, the ASUS TUF GAMING B760M-PLUS II delivers premium features such as PCIe 5.0 support, DDR5 memory compatibility up to 7800+ MHz (OC), triple M.2 storage slots, Realtek 2.5Gb Ethernet, advanced thermal solutions, and ASUS-exclusive reliability enhancements.
The ASUS TUF GAMING B760M-PLUS II combines military-inspired durability with modern gaming features. Unlike many entry-level B760 motherboards, it offers robust power delivery, PCIe 5.0 expansion, advanced cooling support, and high-speed DDR5 memory compatibility that helps maximize the performance of Intel Core processors.
| Specification | Details |
|---|---|
| Model | ASUS TUF GAMING B760M-PLUS II |
| CPU Socket | LGA1700 |
| Supported Processors | Intel 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Capacity | Up to 192GB |
| Memory Speed | Up to 7800+ MHz (OC) |
| Expansion Slot | 1 x PCIe 5.0 x16 |
| M.2 Slots | 3 x M.2 NVMe |
| SATA Ports | 4 x SATA 6Gb/s |
| Networking | Realtek 2.5Gb Ethernet |
| Display Outputs | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Audio | Realtek 7.1 HD Audio |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
The ASUS TUF GAMING B760M-PLUS II is engineered to unlock the full potential of Intel Core processors. The LGA1700 platform supports Intel Core i9, Core i7, Core i5, and Core i3 CPUs, providing flexibility for users who want to build anything from an affordable gaming PC to a high-end productivity workstation.
Combined with ASUS DIGI+ VRM power design and premium power components, the motherboard ensures stable operation under heavy gaming, rendering, multitasking, and content creation workloads.
Modern games and applications benefit greatly from faster memory. This motherboard supports up to 192GB of DDR5 RAM and memory speeds up to 7800+ MHz through overclocking.
If you are planning to upgrade to the latest NVIDIA GeForce RTX or AMD Radeon graphics cards, the PCIe 5.0 x16 slot provides exceptional bandwidth for future hardware. This makes the motherboard an excellent long-term investment for gaming enthusiasts looking to maximize GPU performance.
Storage speed directly impacts system responsiveness. The ASUS TUF GAMING B760M-PLUS II features three M.2 NVMe slots alongside four SATA ports, allowing users to build high-capacity storage configurations without sacrificing speed.
Online gaming, streaming, and large file transfers require reliable networking. The integrated Realtek 2.5Gb Ethernet controller delivers significantly faster wired networking performance than standard Gigabit connections, helping reduce latency and improve overall connectivity.
Heat management is critical for maintaining stable performance. ASUS integrates multiple cooling technologies into the TUF GAMING B760M-PLUS II, including dedicated VRM heatsinks, M.2 heatsinks, intelligent fan controls, and multiple fan headers.
The TUF Gaming series is known for durability and reliability. ASUS incorporates multiple protection technologies designed to safeguard your investment and improve long-term system stability.
The onboard Realtek 7.1 High Definition Audio solution delivers clear, detailed sound for gaming, movies, and music. Dedicated audio PCB layers, premium capacitors, and audio shielding help minimize interference and enhance audio quality.
Perfect for competitive gamers seeking stable performance, PCIe 5.0 graphics support, DDR5 memory, and reliable networking.
Suitable for video editors, designers, streamers, and creators who require high-speed storage, large memory capacity, and efficient multitasking.
The support for DDR5, PCIe 5.0, and Intel's latest processors makes this motherboard a strong choice for users planning long-term upgrades.
If you are searching for a DDR5 motherboard in Bangladesh that balances gaming performance, durability, expansion capability, and future upgrade potential, the ASUS TUF GAMING B760M-PLUS II is one of the strongest options in the Intel B760 category.
Compared to many mainstream alternatives, it provides premium TUF protection technologies, PCIe 5.0 readiness, three M.2 slots, robust cooling, and high-speed networking that can support both gaming and professional workloads for years.
Looking for the latest ASUS TUF GAMING B760M-PLUS II price in Bangladesh? Purchase from Potaka IT for a genuine ASUS motherboard backed by official warranty support. Whether you are upgrading an existing PC or building a new DDR5 gaming system, this motherboard offers the features, reliability, and performance modern users demand.
Yes. It supports Intel Core 14th Gen, 13th Gen, and 12th Gen processors using the LGA1700 socket.
Yes. It supports DDR5 memory up to 192GB with speeds reaching 7800+ MHz through overclocking.
The motherboard includes three M.2 slots for NVMe SSD installation and four SATA ports for additional storage devices.
Yes. PCIe 5.0 support, DDR5 compatibility, advanced cooling, 2.5Gb Ethernet, and durable TUF components make it an excellent gaming motherboard.
No. This specific model focuses on wired networking through a Realtek 2.5Gb Ethernet controller.
The motherboard includes one HDMI 2.1 port and one DisplayPort 1.4 output with support for up to 4K resolution at 60Hz.
Yes. The combination of DDR5 memory support, multiple M.2 slots, PCIe expansion, and Intel processor compatibility makes it highly capable for video editing, graphic design, streaming, and productivity workloads.
The ASUS TUF GAMING B760M-PLUS II comes with a 3-year manufacturing warranty.
The latest price of ASUS TUF GAMING B760M-PLUS II LGA1700 Motherboard in Bangladesh is 23,500৳. You can buy the ASUS TUF GAMING B760M-PLUS II LGA1700 Motherboard at best price from our website or visit any of our showrooms.
