| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | 3 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
|
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Specifications vary by CPU types. |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
|
| Wireless Communication module | Wi-Fi 7 (MediaTek MT7925) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, |
|
| RAID | AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types. |
|
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable RGB Gen2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
The ASUS TUF GAMING B850M-PLUS WIFI7 W DDR5 mATX Motherboard is designed for modern AMD Ryzen systems that need fast connectivity, high-speed storage, DDR5 memory, and practical expansion in a compact micro-ATX platform. Built around the AMD B850 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, with up to 256GB DDR5 memory and support for memory speeds up to 8000+ MT/s (OC), depending on the processor. For gamers, creators, and performance-focused PC builders in Bangladesh, this ASUS TUF motherboard combines Wi-Fi 7, PCIe 5.0, 2.5Gb Ethernet, multiple M.2 slots, and ASUS TUF protection features in a 24.4 × 24.4 cm design.
The motherboard uses the AMD AM5 socket and supports Ryzen 9000, 8000, and 7000 Series desktop processors. Four DDR5 DIMM slots support up to 256GB, dual-channel memory, AMD EXPO, and ASUS AEMP, making it suitable for gaming PCs, multitasking systems, and demanding applications.
For compatible Ryzen 9000 and 7000 processors, the primary PCIe x16 slot supports PCIe 5.0 x16 mode. The board also provides three M.2 slots, including a PCIe 5.0 x4 M.2 slot with supported processors, plus four SATA 6Gb/s ports. This gives builders flexible options for fast NVMe storage and additional drives.
Integrated MediaTek MT7925 2x2 Wi-Fi 7 supports 2.4GHz, 5GHz, and 6GHz bands with 160MHz bandwidth, while Bluetooth 5.4 provides convenient wireless connectivity. A Realtek 2.5Gb Ethernet port with TUF LANGuard adds a high-speed wired networking option.

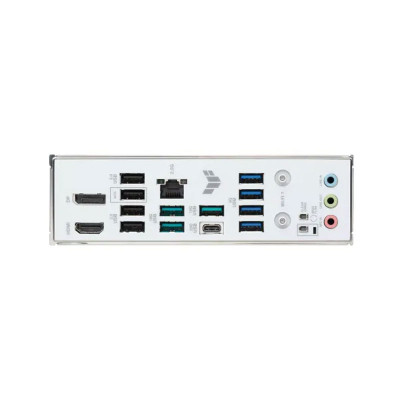

The rear panel provides 12 USB ports, including USB 20Gbps Type-C, three USB 10Gbps Type-A, four USB 5Gbps Type-A, and four USB 2.0 ports. Display connectivity includes DisplayPort 1.4 and HDMI 2.1. BIOS FlashBack and Clear CMOS buttons also make system maintenance easier.
ASUS TUF protection includes DIGI+ VRM with DrMOS, ESD Guards, overvoltage protection, TUF LANGuard, SafeSlot, and a stainless-steel back I/O. ASUS Q-Design features such as M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, Q-Antenna, and Q-Dashboard simplify installation and troubleshooting. M.2 and VRM heatsinks help support thermal management around key components.
This motherboard is a practical choice for users building an AM5 gaming PC, high-speed productivity workstation, or compact performance system. It is particularly suitable when you want DDR5 memory, Wi-Fi 7, 2.5Gb networking, PCIe 5.0, multiple NVMe drives, and modern USB connectivity without moving to a full ATX motherboard.
| Specification | Details |
|---|---|
| Socket | AMD AM5 |
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen 9000, 8000 & 7000 Series |
| Form Factor | Micro-ATX, 24.4 × 24.4 cm |
| Memory | 4 × DDR5 DIMM, up to 256GB |
| Memory Speed | Up to 8000+ MT/s (OC) |
| M.2 | 3 × M.2 |
| SATA | 4 × SATA 6Gb/s |
| Networking | Wi-Fi 7, Bluetooth 5.4, 2.5Gb Ethernet |
| Audio | Realtek ALC1220P 7.1-channel HD Audio |
| Display | DisplayPort 1.4, HDMI 2.1 |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
Explore motherboards for more motherboard options, browse ASUS AMD motherboards for compatible ASUS platforms, or visit the ASUS collection for more ASUS hardware. You can also explore PC components to build a complete system.
It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.
Yes. It includes a MediaTek MT7925 2x2 Wi-Fi 7 module with support for 2.4GHz, 5GHz, and 6GHz bands and 160MHz bandwidth.
The board provides three M.2 slots and four SATA 6Gb/s ports. M.2 capabilities vary according to the installed Ryzen processor.
You can check availability and purchase this ASUS TUF GAMING motherboard from Potaka IT.
