| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* | |
| Chipset | AMD X870 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode)** AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** Specifications vary by CPU types. **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
|
| M.2 Socket | Total Supports 4 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
|
| USB (s) | Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®)* 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)** 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
|
| Audio | 5 x Audio jacks | |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A - Compatible with PD3.0 |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

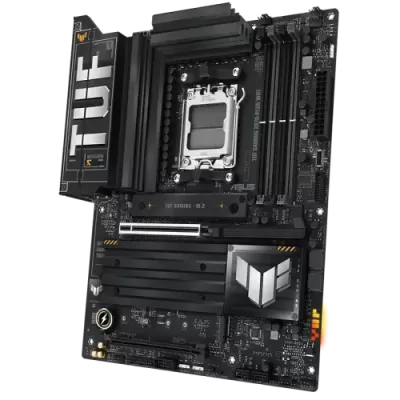

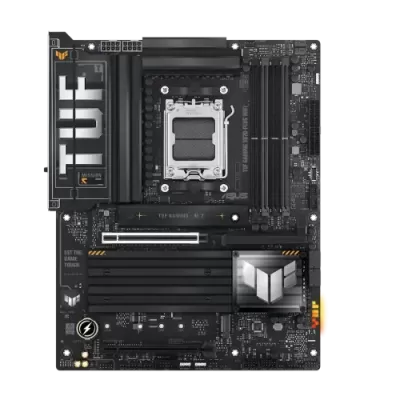

The Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard is designed for gamers, creators, and PC enthusiasts who demand power, stability, and next-level connectivity. Built with the AMD X870 chipset and AM5 socket, it supports the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors. Featuring DDR5 memory support, PCIe 5.0 slots, and ultra-fast Wi-Fi 7, this motherboard ensures you get top-tier performance for gaming, content creation, and multitasking.
With support for AMD Ryzen 9000, 8000, and 7000 series processors, the TUF GAMING X870-PLUS WIFI offers exceptional processing capabilities. Whether you're gaming at high refresh rates or editing 4K videos, you can rely on its high-speed architecture and overclocking features.
This motherboard supports up to 256GB of DDR5 RAM with speeds of 8000+MT/s (OC). With dual-channel architecture and ASUS Enhanced Memory Profile (AEMP) support, you can achieve smooth multitasking and responsive performance for demanding applications.
Enjoy cutting-edge connectivity with 2 x USB4 (40Gbps) ports, USB 20Gbps Type-C, and multiple USB 10Gbps and 5Gbps ports for fast data transfer. Display outputs include DisplayPort and HDMI 2.1, supporting up to 8K@30Hz or 4K@60Hz resolutions.
Experience ultra-low latency and stable online gameplay with Realtek 2.5Gb Ethernet and Wi-Fi 7 support. Built-in Bluetooth v5.4 lets you connect wireless peripherals seamlessly.
The TUF GAMING X870-PLUS WIFI comes with four M.2 slots (PCIe 5.0/4.0) and two SATA 6Gb/s ports, supporting both PCIe and SATA RAID configurations. This allows gamers and professionals to enjoy massive storage capacity with lightning-fast loading speeds.
Featuring ROG SupremeFX 7.1 Surround Sound with ALC4080 codec, premium capacitors, and SupremeFX Shielding Technology, this motherboard delivers crystal-clear audio for gaming, music, and streaming.
Engineered with military-grade components, the TUF series ensures reliability under extreme conditions. Features like SafeSlot PCIe protection, reinforced DIMM slots, and ProCool II power connectors extend the board’s lifespan and stability.
ASUS Q-Design features such as M.2 Q-Latch, PCIe Slot Q-Release, and BIOS FlashBack make building and upgrading your PC hassle-free. Pre-mounted I/O shields save time and improve durability during installation.
Sync your lighting effects across compatible devices with ASUS Aura Sync. Multiple addressable Gen 2 headers allow you to create your personalized lighting setup.
At Potaka IT, we provide authentic products, competitive prices, and expert customer support. We ensure you get the latest Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard with secure delivery across Bangladesh. Shop with us for trusted service, genuine warranty, and hassle-free after-sales support.
The latest price of Asus TUF GAMING X870-PLUS ATX Motherboard in Bangladesh is 52,900৳. You can buy the Asus TUF GAMING X870-PLUS ATX Motherboard at best price from our website or visit any of our showrooms.
