| Basic Information | ||
| Supported CPU | AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
|
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 64 GB | |
| Graphics | ||
| Graphics | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2 |
|
| Max Shared Memory | 2 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
|
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
|
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

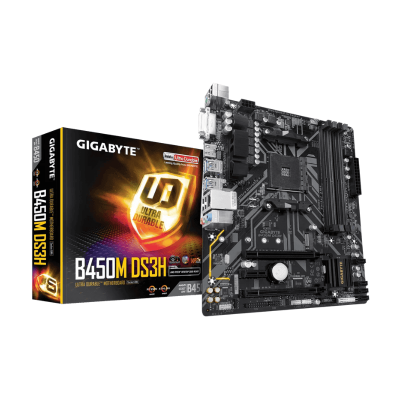

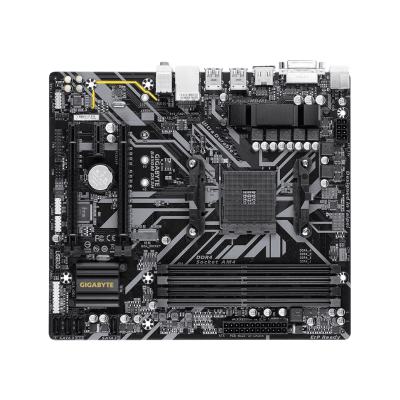

The Gigabyte B450M DS3H AMD Micro ATX motherboard is an excellent choice for users seeking a reliable and high-performance platform for their AMD Ryzen processors. Built on the AMD B450 chipset, this motherboard supports a range of Ryzen processors, including those with Radeon Vega graphics, ensuring seamless performance for gaming, content creation, and daily computing. Its Micro ATX form factor makes it a great fit for compact PC builds without sacrificing essential features.
Designed for AMD Ryzen 1st and 2nd generation processors, as well as Ryzen CPUs with Radeon Vega graphics, this motherboard ensures top-tier compatibility and performance.
With four DIMM slots supporting up to 64GB of DDR4 RAM, users can enjoy high-speed memory performance with XMP support for extreme overclocking.
Equipped with an M.2 slot and four SATA 6Gb/s connectors, this motherboard allows for lightning-fast data access and efficient storage solutions, including RAID support.
The PCIe x16 slot supports PCIe 3.0 for high-performance graphics cards, ensuring smooth gaming and rendering capabilities.
Featuring HDMI and DVI-D outputs, this motherboard supports up to 4K resolution, providing stunning visuals for gaming and multimedia applications.
Enjoy fast and stable internet connectivity with the Realtek Gigabit LAN chip, ensuring seamless online gaming and browsing.
Powered by the Realtek ALC887 codec, this motherboard delivers 7.1-channel HD audio, enhancing your entertainment experience with immersive sound.
Customize your PC aesthetics with an RGB LED strip header, allowing users to create a personalized lighting setup.
If you're looking for a feature-rich, budget-friendly motherboard for your AMD Ryzen build, the Gigabyte B450M DS3H AMD motherboard is a top choice. With its reliable performance, high-speed connectivity, and robust expansion options, it provides a solid foundation for any PC. Get yours today from Potaka IT in Bangladesh and enjoy the best deals on high-quality computer components!
