| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for AMD Ryzen 9000, 8000 & 7000 Series Processors | |
| Chipset | AMD X870 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |

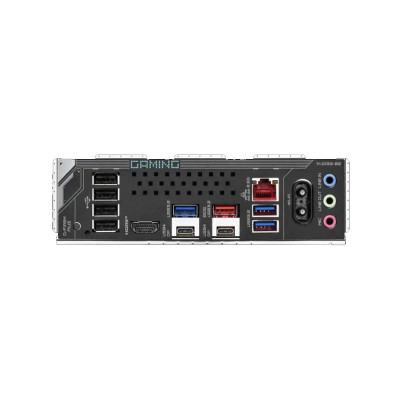

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port(Note) 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
| USB (s) | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when a PCIe 4.0 x4 SSD is installed in the M2B_SB connector. 4 x SATA 6Gb/s connectors |
|
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
The GIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard is a feature-rich AMD X870 motherboard designed for modern Ryzen-based gaming PCs, high-performance workstations and enthusiast builds. Supporting AMD Ryzen 9000, 8000 and 7000 Series processors, DDR5 memory up to 256GB, PCIe 5.0 storage and high-speed USB4 connectivity, this GIGABYTE AM5 motherboard in Bangladesh provides a strong foundation for a new-generation PC build.
Built around the AMD X870 chipset and AM5 socket, this ATX motherboard combines current-generation connectivity with flexible expansion. Ryzen 9000 and 7000 Series processors can use the primary PCIe slot at PCIe 5.0 x16, while the platform also supports Ryzen 8000 Series processors with processor-dependent PCIe configurations.
The board features four DDR5 DIMM slots with dual-channel memory architecture and supports memory speeds up to DDR5-8000 MT/s through overclocking, depending on the CPU and memory configuration. AMD EXPO and XMP support makes it easier to configure compatible high-performance memory kits.
For fast storage and expansion, the GIGABYTE X870 GAMING X WIFI7 includes three M.2 connectors, including CPU-connected PCIe 5.0 support, plus four SATA 6Gb/s connectors. Two rear USB4 Type-C ports support USB4 and DisplayPort video output, making the board suitable for high-speed external devices and modern displays.
| Specification | Details |
|---|---|
| Socket / CPU Support | AMD AM5; Ryzen 9000, 8000 and 7000 Series |
| Chipset | AMD X870 |
| Form Factor | ATX, 30.5cm x 24.4cm |
| Memory | 4 x DDR5 DIMM, up to 256GB, Dual Channel |
| Memory Speed | Up to DDR5-8000 MT/s (OC) |
| Expansion | PCIe 5.0 x16 CPU-connected slot; 2 x PCIe 3.0 x16 slots at x1 |
| Storage | 3 x M.2, 4 x SATA 6Gb/s |
| USB | 2 x USB4 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 |
| LAN | Realtek 2.5GbE |
| Wireless | AMD Wi-Fi 6E RZ616, Bluetooth 5.2 |
| Audio | Realtek High Definition Audio, up to 7.1-channel |
| Graphics Outputs | HDMI, USB4 Type-C DisplayPort |
This motherboard is a strong platform for building an AM5 gaming PC around a compatible Ryzen processor, fast DDR5 memory and a modern graphics card. PCIe 5.0 support and multiple M.2 connections also provide room for high-speed storage configurations.
With 2.5GbE networking, Wi-Fi 6E, USB4, multiple storage interfaces and extensive fan and RGB headers, the board suits users building feature-rich desktop systems where connectivity and expansion matter.
Choose the GIGABYTE X870 GAMING X WIFI7 if you are building a modern AMD AM5 PC and want DDR5, PCIe 5.0, multiple M.2 storage options, USB4 and fast wired and wireless networking. Check the CPU and memory compatibility lists before purchase because supported memory speeds and PCIe configurations can vary by processor and DIMM configuration.
Compare this board with other options in the motherboard collection. You can also explore GIGABYTE AMD motherboards, browse the GIGABYTE collection, or visit Potaka IT for PC components and hardware in Bangladesh.
It supports AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series processors on the AM5 platform.
The motherboard has four DDR5 DIMM slots and supports up to 256GB of system memory, with memory speeds up to DDR5-8000 MT/s through overclocking depending on configuration.
It provides three M.2 connectors for compatible NVMe SSDs, along with four SATA 6Gb/s connectors.
Yes. It provides two rear USB4 Type-C ports supporting USB4 and DisplayPort video output.
Yes. The supplied specification lists AMD Wi-Fi 6E and Bluetooth 5.2, along with Realtek 2.5GbE wired networking.
