| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000, 8000, 7000 Series Processors |
|
| Chipset | AMD X870M | |
| BIOS | 1 x 256 Mbit flash Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek ALC1220 CODEC |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 (CPU) Ryzen™ 9000/7000: PCIe 5.0 x16 Ryzen™ 8000-Phoenix 1: PCIe 4.0 x8 Ryzen™ 8000-Phoenix 2: PCIe 4.0 x4 1 x PCI Express x16 (chipset), PCIe 4.0 x4 1 x PCI Express x16 (chipset), PCIe 3.0 x4 |
|
| M.2 Socket | 1 x M.2 (M2A_CPU, PCIe 5.0/4.0/3.0) 2 x M.2 (M2B_CPU, M2C_CPU, PCIe 5.0/4.0) 1 x M.2 (M2D_SB, PCIe 4.0 x4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | DDR5 4400–8200 MT/s (OC), AMD EXPO & XMP supported, non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 | |
| Maximum Memory | Up to 256 GB (64 GB per DIMM) | |
| Graphics | ||
| Graphics | 1 x HDMI 2.1, max 4096x2160@60Hz 2 x USB4 Type-C (DisplayPort supported) |
|
| Max Shared Memory | Depends on CPU | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port |
|
| Display Port (s) | via USB4 Type-C ports | |
| USB (s) | 2 x USB4 Type-C (back panel, DisplayPort supported) 1 x USB 3.2 Gen 2 Type-A (red, back) 1 x USB Type-C internal header (USB 3.2 Gen 2x2) 2 x USB 3.2 Gen 2 Type-A (red, back) 7 x USB 3.2 Gen 1 (3 back, 4 internal) 8 x USB 2.0/1.1 (4 back, 4 internal) |
|
| LAN Port (s) | Realtek 2.5GbE LAN (2.5/1/0.1 Gbps) | |
| Supported Storage | 4 x SATA 6Gb/s connectors M.2 connectors as listed above |
|
| Audio | Realtek ALC1220 CODEC High Definition Audio: 2/4/5.1/7.1-channel |
|
| Wireless Communication module | Realtek Wi-Fi 7 RTL8922AE: 2.4/5/6 GHz, Bluetooth 5.4 MediaTek Wi-Fi 7 MT7925: 2.4/5/6 GHz, Bluetooth 5.4 |
|
| TPM (Trusted Platform Module ) | 1 x TPM header (GC-TPM2.0 SPI compatible) | |
| RAID | RAID 0, 1, 5, 10 support for NVMe SSDs (RAID 5 only Ryzen 9000) RAID 0, 1, 10 support for SATA storage |
|
| Others | ||
| Special Features | GIGABYTE Control Center (GCC) support Q-Flash, Q-Flash Plus, Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

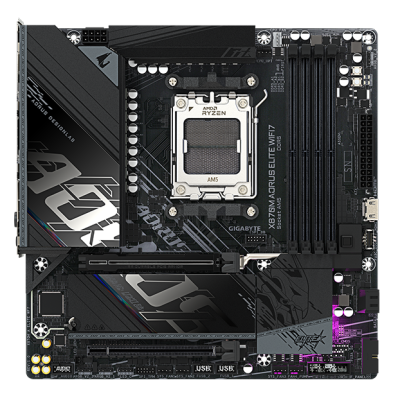

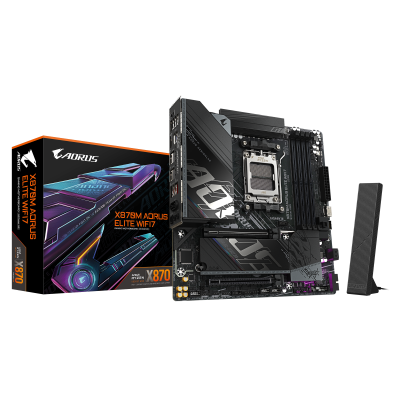

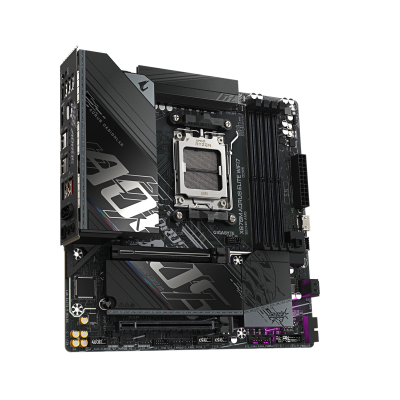

The GIGABYTE X870M AORUS ELITE WIFI7 is a high-performance AMD AM5 ATX motherboard, designed for gamers, content creators, and tech enthusiasts. It supports AMD Ryzen™ 9000, 8000, and 7000 series processors, ensuring unmatched computing power and reliability. This motherboard combines the latest DDR5 memory support, advanced connectivity, and innovative design to provide a seamless experience for demanding tasks and gaming setups.
Featuring AMD Socket AM5, this motherboard supports AMD Ryzen™ 9000, 8000, and 7000 series processors. For the latest CPU compatibility, users can refer to GIGABYTE’s official CPU support list.
Equipped with the AMD X870 chipset, the X870M AORUS ELITE WIFI7 delivers robust performance, overclocking capabilities, and optimized system efficiency for high-end computing.
This motherboard supports DDR5 memory modules from 4400 MT/s up to 8200 MT/s (OC), featuring 4 DIMM slots capable of handling up to 256GB of system memory. It supports dual-channel architecture, AMD EXPO™, and XMP profiles, ensuring flexible memory overclocking and enhanced system performance.
Integrated AMD Radeon™ graphics support allows users to connect via multiple ports: 2 USB4® Type-C® ports supporting DisplayPort outputs, 1 HDMI port (up to 4096x2160@60Hz), and 1 front HDMI port. DisplayPort 1.4 and HDMI 2.1 with HDR support provide crisp visuals and smooth frame rates.
The motherboard features Realtek® ALC1220 HD Audio with support for 2/4/5.1/7.1 channel output. It also includes S/PDIF Out support and customizable audio jack functionality for immersive sound experience.
With Realtek® 2.5GbE LAN and Realtek® Wi-Fi 7 RTL8922AE module, this motherboard ensures ultra-fast wired and wireless connectivity. Bluetooth 5.4 and support for 802.11a/b/g/n/ac/ax/be standards enable reliable high-speed networking for gaming and streaming.
Includes PCIe slots for graphics cards and NVMe SSDs: 1 x PCIEX16 supporting PCIe 5.0/4.0 depending on CPU, and 1 x PCIEX4. Storage interfaces include 2 M.2 slots and 2 SATA 6Gb/s connectors, with RAID 0, 1, 5, and 10 support for NVMe and SATA devices.
Multiple USB ports are available, including 2 x USB4® Type-C®, 1 x USB 3.2 Gen 2x2 Type-C®, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, and 8 x USB 2.0/1.1 ports. Internal headers include USB Type-C, USB 3.2, USB 2.0, RGB, fan headers, and audio connectors for complete customization.
GIGABYTE Control Center (GCC) support, Q-Flash, Q-Flash Plus, Smart Backup, and licensed AMI UEFI BIOS provide advanced control over system configuration. Integrated iTE® I/O Controller allows voltage, temperature, and fan speed monitoring along with H/W alerts.
Micro ATX form factor (24.4cm x 24.4cm) fits into a variety of cases while offering full ATX features, making it perfect for compact high-performance builds.
Potaka IT offers authentic GIGABYTE products with secure online ordering and delivery across Bangladesh. Shop with confidence knowing you get the latest technology, competitive prices, and professional customer support for all your PC building needs.
The latest price of GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard in Bangladesh is 40,000৳. You can buy the GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard at best price from our website or visit any of our showrooms.
