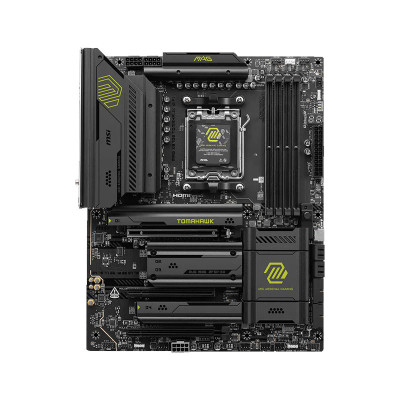

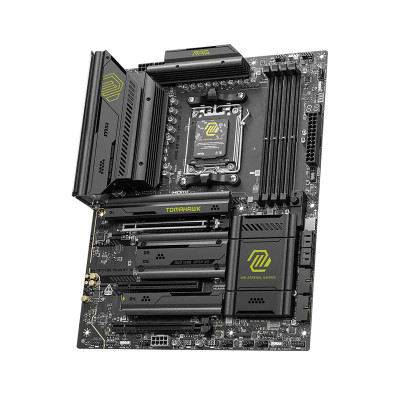

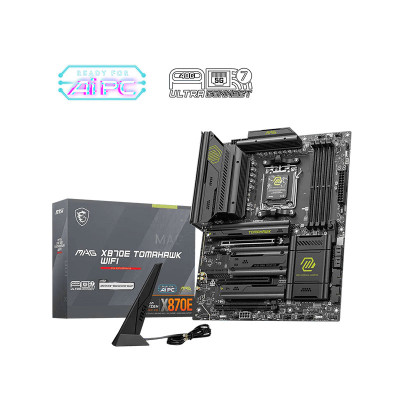

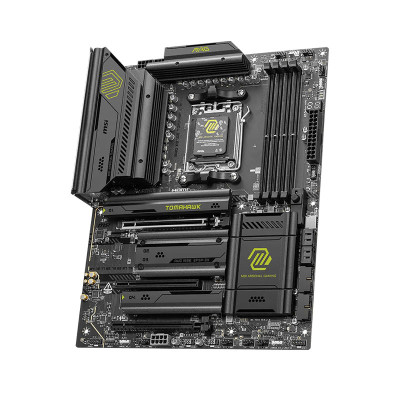

MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard

Price:

53,000৳

Stock :

In Stock

Model :

MAG X870E TOMAHAWK WIFI

SKU :

Brand :

MSI

53,000৳

Key Features

Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 8400 (OC) MT/s
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Features: Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4

Specification
Description
Reviews
Questions

Basic Information
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD X870E
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
Expansion Slots
PCI	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket	4x M.2
Memory
Type	DDR5
Slots	4x DIMMs
Supported Memory	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory	256GB
Graphics
Graphics	1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Display Port (s)	2x Type-C DisplayPort

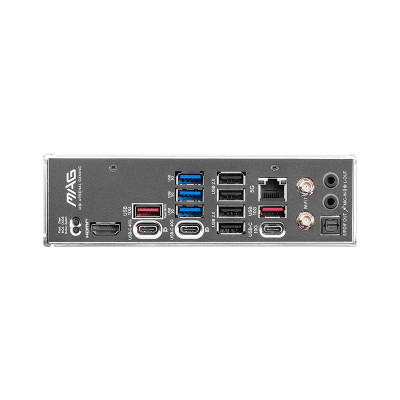

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s)	1x Realtek 8126 5G LAN
Supported Storage	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen 9000 series processors. RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.
Others
Special Features	4x EZ Debug LED 1x EZ Digit Debug LED
Warranty Information
Manufacturing Warranty	3 Years

Description

MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard

The MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard is a feature-rich AMD X870E motherboard built for Ryzen 9000, 8000, and 7000 Series desktop processors. With AM5 support, DDR5 memory up to 8400+ MT/s through overclocking, PCIe 5.0 expansion, four M.2 sockets, Wi-Fi 7, 5G LAN, USB4, and robust connectivity, it is designed for high-performance gaming PCs, content creation workstations, and enthusiast builds. For buyers in Bangladesh looking for a future-ready AM5 motherboard, the MAG X870E TOMAHAWK WIFI combines modern platform support with extensive storage, networking, and expansion options.

MSI MAG X870E TOMAHAWK WIFI Features

AMD X870E Platform with AM5 Ryzen Support

Built around the AMD X870E chipset, this ATX motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket. That makes it a strong foundation for a new Ryzen gaming PC or a performance workstation where CPU upgrade flexibility and modern connectivity matter.

DDR5 Memory up to 8400+ MT/s

Four DDR5 DIMM slots support up to 256GB of non-ECC, unbuffered memory. The board supports AMD EXPO memory overclocking and rated DDR5 speeds from 5600 to 8400 MT/s and beyond depending on configuration. For Ryzen 9000 processors, supported configurations can reach up to 8400+ MT/s with suitable memory and settings.

PCIe 5.0 and Four M.2 NVMe Slots

The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 or 7000 Series processors. Four M.2 sockets provide extensive NVMe storage options, including two CPU-connected PCIe 5.0 x4 slots and two chipset-connected PCIe 4.0 x4 slots. Four SATA 6Gb/s ports further expand storage flexibility.

Wi-Fi 7, 5G LAN and High-Speed USB Connectivity

Networking is a major strength of the MSI MAG X870E TOMAHAWK WIFI. Its pre-installed Wi-Fi 7 module supports 2.4GHz, 5GHz, and 6GHz bands with 320MHz channel support, MLO, 4KQAM, and Bluetooth 5.4. A Realtek 8126 5G LAN controller provides high-speed wired networking for gaming, large file transfers, and workstation workloads.

Connectivity includes USB4 Type-C ports with DisplayPort capability, USB 20Gbps Type-C, USB 10Gbps Type-A and Type-C, USB 5Gbps ports, HDMI 2.1 FRL, and Type-C DisplayPort outputs. This gives the board considerable flexibility for modern peripherals, displays, external storage, and high-bandwidth accessories.

MSI MAG X870E TOMAHAWK WIFI Specifications

Specification	Details
CPU Support	AMD Ryzen 9000 / 8000 / 7000 Series
Socket	AM5
Chipset	AMD X870E
Form Factor	ATX, 243.84 × 304.8mm
Memory	4 × DDR5 DIMM, up to 256GB
Memory Speed	DDR5 8400–5600 MT/s OC / 5600–4800 MT/s JEDEC
Expansion	3 × PCIe x16 slots
Primary PCIe	PCIe 5.0 x16
M.2	4 × M.2, up to PCIe 5.0 x4
SATA	4 × SATA 6G
LAN	Realtek 8126 5G LAN
Wireless	Wi-Fi 7, Bluetooth 5.4
Audio	Realtek ALC4080, 7.1-channel USB High Performance Audio
Display Output	HDMI 2.1, 2 × Type-C DisplayPort
Debug Features	EZ Debug LED, EZ Digit Debug LED

Who Should Buy the MSI MAG X870E TOMAHAWK WIFI?

This motherboard is a strong choice for enthusiasts building a Ryzen 9000 gaming PC, high-end workstation, creator system, or long-term AM5 platform. It makes particular sense for users who need multiple NVMe drives, high-speed networking, DDR5 overclocking, PCIe 5.0 support, and extensive USB connectivity. Compared with a basic AM5 motherboard, its X870E platform provides substantially more connectivity and expansion flexibility.

Buying Guide: What to Check Before Buying

Choose this board if you need the feature set of an X870E platform rather than a simpler AM5 motherboard. Confirm your CPU generation, DDR5 kit compatibility, case support for ATX boards, GPU requirements, and storage configuration. For Wi-Fi 7 and 5G networking, compatible client devices and network infrastructure are also required to achieve their full potential.

Buy MSI MAG X870E TOMAHAWK WIFI in Bangladesh

Looking for the MSI MAG X870E TOMAHAWK WIFI AM5 motherboard in Bangladesh? Explore motherboards at Potaka IT for AMD and Intel platforms. You can also browse MSI AMD motherboards, explore the MSI collection, or find other PC components for your next performance build.

Why Buy from Potaka IT?

Potaka IT helps PC builders in Bangladesh find motherboards, processors, memory, storage, graphics cards, and other essential components for custom systems. Visit Potaka IT to explore compatible hardware for your next gaming or workstation build.

Frequently Asked Questions

What CPUs are compatible with the MSI MAG X870E TOMAHAWK WIFI?

It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.

How much RAM does the MSI MAG X870E TOMAHAWK WIFI support?

The motherboard has four DDR5 DIMM slots and supports up to 256GB of non-ECC, unbuffered memory.

Does the MSI MAG X870E TOMAHAWK WIFI support PCIe 5.0?

Yes. Its primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and 7000 Series processors, while two M.2 slots support PCIe 5.0 x4.

Does this MSI motherboard have Wi-Fi 7?

Yes. It includes a pre-installed Wi-Fi 7 module with support for 2.4GHz, 5GHz, and 6GHz operation, plus Bluetooth 5.4.

How many M.2 slots does it have?

The MSI MAG X870E TOMAHAWK WIFI has four M.2 sockets, including two CPU-connected PCIe 5.0 x4 slots and two chipset-connected PCIe 4.0 x4 slots.

What is the price of MSI MAG X870E TOMAHAWK WIFI Motherboard in Bangladesh?

The latest price of MSI MAG X870E TOMAHAWK WIFI Motherboard in Bangladesh is 53,000৳. You can buy the MSI MAG X870E TOMAHAWK WIFI Motherboard at best price from our website or visit any of our showrooms.
