| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 10th and 11th Generation Processors Turbo Boost Max 3.0 Technology |
|
| Chipset | Z590 | |
| Form Factor | ATX | |
| Audio | Realtek ALC1220 Codec 8-Channel High Definition Audio 32-bit / 192kHz DAC Playback Nichicon Fine Gold Series Capacitors |
|
| Expansion Slots | ||
| PCI | 1x PCIe x16 (x16 mode) (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0) 1x PCIe x16 (x4 mode) 3x PCIe 3.0 x1 |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM Slots (Dual-channel Memory Architecture) | |
| Supported Memory | OC Frequency (11th Gen CPUs): 4600+ MHz OC Frequency (10th Gen CPUs): 4400+ MHz Base Frequency (11th Gen CPUs): 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Base Frequency (10th Gen CPUs): 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Intel XMP 2.0 Support |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Intel Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs) HDMI 2.0 / HDMI 1.4b HDMI Max Resolution: 4096x2160@60Hz AMD 2-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0 | |
| Internal I/O Ports | 1x M.2 (M Key), Type 2242/2260/2280 1x M.2 (E Key) (For wireless cards) 4x SATA 6Gbps Ports 1x USB 3.2 Gen 2 Header (Type-C) 2x USB 3.2 Gen 1 Header (Up to 4 ports) 3x USB 2.0 Header (Up to 6 ports) 1x Front Panel Audio 1x CPU_FAN Connector (Up to 24W) 1x AIO_PUMP Connector (Up to 24W) 5x SYS_FAN Connector (Up to 24W) 2x NZXT RGB LED Header 1x 5V ARGB Header 1x 12V RGB Header 1x 24-pin EATX Power 1x 8-pin ATX 12V Power 1x 4-pin ATX 12V Power 1x Power Button 1x Reset Button 4x POST LEDs |
|
| LAN Port (s) | Realtek RTL8125BG 2.5G | |
| Supported Storage | 1x M.2 Type 2242/2260/2280 (PCIe x4 mode) 1x M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) 4x SATA 6Gb/s RAID 0/1/5/10 Support Intel Smart Response Technology Intel Rapid Storage Technology Intel Optane Memory |
|
| Wireless Communication module | Intel Dual-Band Wireless: AX210 Wi-Fi 6E Protocol: 802.11 a/b/g/n/ac/ax Frequency Bands: 2.4 / 5 / 6 GHz MU-MIMO Support Bluetooth V5.2 |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

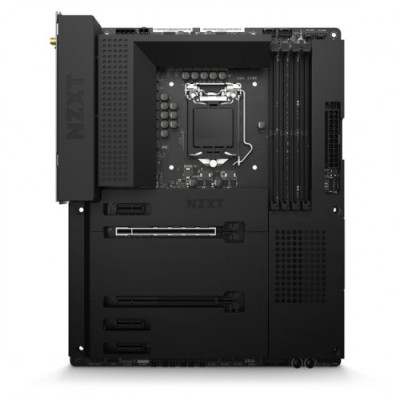

The NZXT N7 Z590 Matte Black motherboard is a premium ATX board built for Intel's 11th and 10th Gen processors using the powerful LGA1200 socket. Designed with an elegant matte black finish and solid metal cover, this motherboard is perfect for PC enthusiasts looking for a balance between performance, aesthetics, and connectivity. Whether you're gaming, streaming, or multitasking, the N7 Z590 delivers uncompromised performance and seamless control with integrated Wi-Fi 6E, Bluetooth 5.2, and powerful overclocking support.
This motherboard supports Intel’s 11th and 10th generation processors with LGA1200 socket and Turbo Boost Max 3.0 technology. With support for memory overclocking up to 4600+ MHz on 11th Gen CPUs and 128GB DDR4 RAM, it ensures blazing-fast performance for demanding tasks and gaming workloads.
NZXT N7 Z590 features a robust 12+2 DrMOS power phase design that provides stable power delivery for efficient overclocking. Combined with premium components, the board ensures long-lasting durability and smoother power transitions even during heavy workloads or gaming marathons.
Stay ahead with Intel Wi-Fi 6E and Bluetooth v5.2 for ultra-fast wireless connections. The Realtek 2.5G LAN ensures low-latency and high-speed wired internet. Equipped with dual M.2 slots, PCIe 4.0 support for 11th Gen CPUs, HDMI 2.0, and multiple USB 3.2 Gen headers, this board has every connection you need for modern builds.
Enjoy immersive sound with Realtek ALC1220 8-channel high-definition audio codec, 32-bit/192kHz DAC playback, and Nichicon Fine Gold series capacitors for superior audio clarity whether you're gaming or listening to music.
With support for AMD CrossFireX, Intel Xe/UHD Graphics, and PCIe 4.0/3.0 slots, users can install multiple GPUs or high-speed SSDs with ease. The board also supports up to 4K HDMI output at 60Hz, offering exceptional visual clarity for content creators and gamers alike.
The N7 Z590 is packed with internal I/O options including headers for USB 3.2 Gen2 (Type-C), USB 3.2 Gen1, multiple fan connectors (up to 24W each), RGB/ARGB headers, and dual NZXT RGB LED headers. It's ideal for building a high-end, fully customizable gaming rig.
At Potaka IT, we ensure 100% authentic NZXT motherboards at the best price in Bangladesh. Our expert support team, reliable delivery service, and regular offers make us the go-to tech shop for gamers and PC builders. Shop now and upgrade your rig with confidence from a trusted local tech brand — Potaka IT.
The latest price of NZXT N7 Z590 Matte Black Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard in Bangladesh is 25,300৳. You can buy the NZXT N7 Z590 Matte Black Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard at best price from our website or visit any of our showrooms.
