| Basic Information | ||
| Supported CPU | AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors ** *Refer to www.asus.com for CPU support list. **System boot may take longer with Threadripper 9000 series CPUs due to memory calibration. This behavior is normal. Please allow sufficient time for the process to complete. |
|
| Chipset | AMD TRX50 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | CEB 12 inch x 11 inch (30.5 cm x 28.0 cm) | |
| Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors 3 x PCIe 5.0 x16 slots 1 x PCIe 4.0 x16 slot |
|
| M.2 Socket | Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM slots, DDR5, ECC Registered Memory 4 Channel Memory Architecture |
|
| Supported Memory | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2*** 4 x SATA 6Gb/s ports SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3*** AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**** SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device**** ** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs *** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa. **** Supported when the Threadripper PRO series CPU is installed |
|
| Connector & Ports | ||

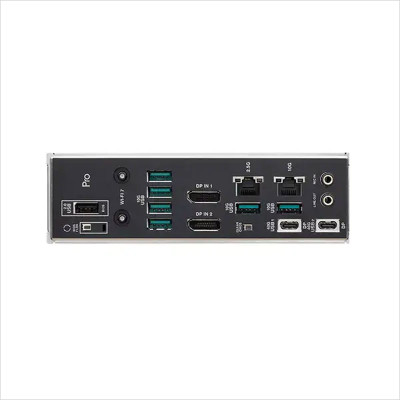

| Internal I/O Ports | Back Panel I/O Ports: 2 x USB4 (40Gbps) ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 2 x DisplayPort IN 1 x Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Power related 1 x 24-pin Main Power connectors 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support an additional 4 USB 2.0 ports Miscellaneous 1 x Addressable RGB Gen 2 header 1 x BMC header 1 x COM Port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button 1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Chassis intrusion header 1 x Thermal Sensor header 7 x ProbeIt Measurement Points |
|
| USB (s) | Rear USB (Total 9 ports) 2 x USB4 (40Gbps) (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A ) 1 x USB 2.0 ports (1 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD)* 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support an additional 4 USB 2.0 ports * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
|
| LAN Port (s) | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel I226-LM 2.5Gb Ethernet |
|
| Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers - Unique de-pop circuit * A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output. * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard. |
|
| Wireless Communication module | Wi-Fi 7 (Realtek RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. **Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country. ** *** The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
| RAID | * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. | |
| Others | ||
| Special Features | ASUS Q-Design - Q-Code - M.2 Q-Latch - M.2 Q-Release - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink and onboard thermal pads - M.2 heatsink backplate - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - Dual DIMM clips - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen 2 header Bespoke Motherboard Design & Business-Focused Features - 24/7 Reliability - Overcurrent Protection |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Aura Sync ASUS CPU-Z ASUS DriverHub IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Replacement Warranty | |

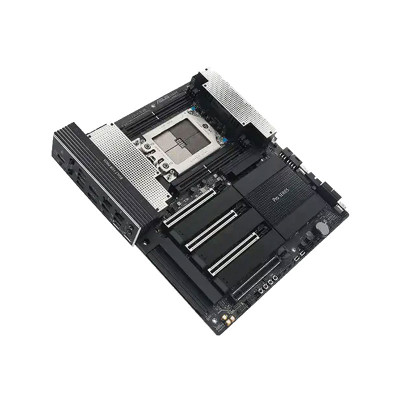

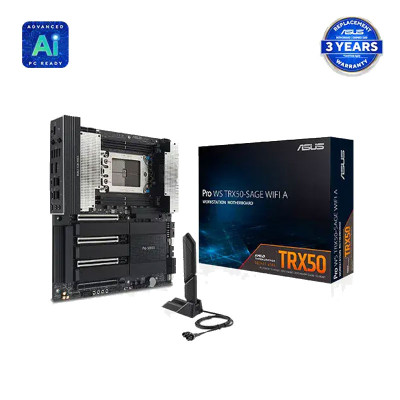

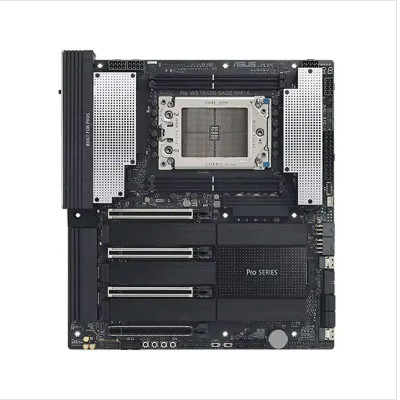

The ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard is designed for professionals who need powerful computing, high-speed connectivity and flexible expansion for demanding workloads. Built on the AMD TRX50 chipset with an AMD sTR5 socket, this workstation motherboard supports AMD Ryzen Threadripper PRO 9000 and 7000 WX-Series processors, along with Ryzen Threadripper 9000 and 7000 Series CPUs. With four-channel DDR5 ECC Registered memory, PCIe 5.0 expansion, multiple M.2 storage slots, Wi-Fi 7 and dual Ethernet ports, it is a suitable foundation for professional workstations used in 3D rendering, engineering, content creation, virtualization and advanced computing.
The AMD sTR5 socket and TRX50 chipset provide a platform for compatible AMD Ryzen Threadripper processors. This makes the motherboard suitable for workstation builders who require substantial CPU resources for complex calculations, professional applications and intensive multitasking. Check the official CPU support list and required BIOS version before choosing your processor.
Four DDR5 DIMM slots support ECC Registered memory in a four-channel configuration. ECC memory can help detect and correct certain memory errors, making it valuable for professional workloads where data integrity matters. Memory compatibility, supported capacity and operating speed depend on the installed processor and memory configuration.
The ASUS Pro WS TRX50-SAGE WIFI A features three PCIe 5.0 x16 slots and one PCIe 4.0 x16 slot. This expansion flexibility helps workstation builders configure compatible graphics cards, professional accelerator cards and other high-bandwidth devices. Always check slot bandwidth allocation and PCIe bifurcation requirements when planning a multi-card workstation.
With four M.2 slots, four SATA 6Gb/s ports and two SlimSAS connectors, this motherboard supports a flexible storage configuration for operating systems, application files, large project libraries and working data. Compatible M.2 slots support PCIe 5.0 x4 or PCIe 4.0 x4, depending on the processor and slot used. AMD RAIDXpert2 also supports PCIe and SATA RAID 0, 1, 5 and 10.
Important: M.2_3 shares bandwidth with SlimSAS_2, so only one of these connections can operate at a time. Some M.2 features also depend on the installed Threadripper processor series.
Built-in Wi-Fi 7 with 2x2 connectivity and Bluetooth 5.4 provides modern wireless networking options. For wired connections, the motherboard includes a 10Gb Ethernet port and a separate 2.5Gb Ethernet port. These interfaces are useful for transferring large files, accessing network storage and connecting to compatible high-speed office or studio networks. Full Wi-Fi 7 functionality on Windows 11 requires version 24H2 or later; operating system and regional restrictions may apply.
Two rear USB4 Type-C ports support transfer speeds of up to 40Gbps. Additional rear USB Type-A ports and front-panel USB headers provide connectivity for external drives, peripherals and other accessories. BIOS FlashBack, Clear CMOS, Q-Design features, onboard VRM cooling and M.2 thermal solutions help simplify setup, troubleshooting and thermal management.
This professional workstation motherboard is a strong option for engineers, architects, 3D artists, video production teams, researchers and developers building a high-performance desktop workstation. Its multi-slot expansion, ECC Registered memory support and extensive storage connectivity can accommodate complex configurations that exceed the needs of a typical home or gaming PC.
For AI development and GPU-intensive projects, the board provides expansion options for compatible accelerators. Actual performance depends on the processor, graphics cards, memory, storage, software and cooling configuration. For everyday office work or a standard gaming build, a more affordable mainstream motherboard may be a better fit.
Build your professional workstation with the ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard from Potaka IT. Explore our motherboard collection, discover compatible options from ASUS AMD motherboards, browse the ASUS product range, or explore other PC components at Potaka IT components. Check current availability, pricing and warranty details before ordering.
It supports AMD sTR5 Ryzen Threadripper PRO 9000 and 7000 WX-Series processors and Ryzen Threadripper 9000 and 7000 Series processors. Check ASUS's official CPU support list for exact model and BIOS compatibility.
Yes. It supports DDR5 ECC Registered memory across four DIMM slots using a four-channel memory architecture. Supported capacity and speed depend on the CPU and memory configuration.
It has four M.2 slots, four SATA 6Gb/s ports and two SlimSAS ports. Supported M.2 interfaces vary by processor, and M.2_3 shares bandwidth with SlimSAS_2.
Yes. It includes Wi-Fi 7, Bluetooth 5.4, one 10Gb Ethernet port and one 2.5Gb Ethernet port. Full Wi-Fi 7 functionality depends on operating system support and regional regulations.
It can support a compatible gaming graphics card, but it is primarily designed for professional workstation builds. If your main goal is gaming, a mainstream gaming motherboard may offer better value for your requirements.
You can check the product listing on Potaka IT for current availability, pricing and purchase information in Bangladesh.
The latest price of ASUS Pro WS TRX50-SAGE WIFI A Motherboard in Bangladesh is 130,500৳. You can buy the ASUS Pro WS TRX50-SAGE WIFI A Motherboard at best price from our website or visit any of our showrooms.
