| Basic Information | ||
| Supported CPU | AMD EPYC 9004/9005 Series Single Socket SP5 |
|
| Chipset | System on Chip | |
| BIOS | AMI 32MB SPI Flash EEPROM BIOS Features: ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support |
|
| Form Factor | ATX | |
| Expansion Slots | ||
| PCI | 3 PCIe 5.0 x16 slots 2 PCIe 5.0 x8 slots |
|
| M.2 Socket | 2 M.2 PCIe 5.0 x4 SATA/NVMe slots (M-key 2280/22110) | |
| Memory | ||
| Type | DDR5 | |
| Slots | 12 DIMM Slots | |
| Supported Memory | DIMM Sizes: RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB | |
| Maximum Memory | Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01) Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0) Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01) |
|
| Connector & Ports | ||
| USB (s) | 2 USB 3.0 port(s) (Header) 4 USB 3.0 port(s) |
|
| LAN Port (s) | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (Realtek RTL8211F PHY) | |
| Wireless Communication module | Dual LAN with Broadcom BCM57416 10GBase-T | |
| VGA (s) | 1 VGA port(s) | |
| TPM (Trusted Platform Module ) | 1 TPM 2.0 Header | |
| Others | ||
| Special Features | Voltage: +12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature LED: BMC/IPMI Heartbeat LED UID/remote UID LED Fan: 6x 4-pin fan headers (up to 6 fans) |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

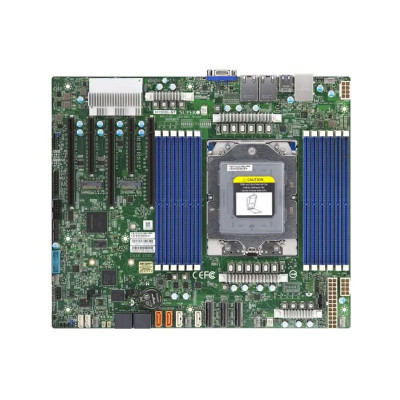

The Supermicro H13SSL-NT SP5 DDR5 ATX Motherboard is a high-performance server motherboard designed for AMD EPYC 9004 and 9005 series processors. Built around a single Socket SP5 platform, it combines 12 DDR5 ECC RDIMM slots, extensive PCIe 5.0 expansion, dual 10GbE networking, dedicated IPMI management, and high-speed M.2 connectivity. This makes the H13SSL-NT a strong foundation for enterprise servers, virtualization platforms, professional workstations, networking systems, storage servers, and demanding compute environments. Supermicro specifies support for CPUs up to 400W TDP and up to 160 cores/320 threads, depending on the processor.
The single-socket SP5 design supports AMD EPYC 9004 and 9005 processors. For EPYC 9005 drop-in support, Supermicro specifies a board revision of 2.x or higher, so buyers should confirm the exact motherboard revision before purchasing.
With 12 DIMM slots, the H13SSL-NT is designed for large-memory server configurations. Depending on CPU and board revision, Supermicro lists up to 3TB of ECC DDR5 RDIMM capacity, with supported speeds reaching 6000MT/s or 6400MT/s on certain EPYC 9005 configurations.
The motherboard provides three PCIe 5.0 x16 slots and two PCIe 5.0 x8 slots, giving professional systems substantial expansion bandwidth. It also includes two M.2 PCIe 5.0 x4 SATA/NVMe sockets supporting 2280 and 22110 form factors.
For server networking, the Supermicro H13SSL-NT features dual 10GBase-T LAN through the Broadcom BCM57416 controller. A separate 1GbE RJ45 port provides dedicated IPMI connectivity through the Realtek RTL8211F PHY, allowing remote server management without relying on the primary network interfaces.
| Specification | Details |
|---|---|
| CPU Support | AMD EPYC 9004/9005 Series |
| CPU Socket | Single Socket SP5 |
| Chipset | System on Chip |
| Form Factor | ATX |
| Memory Type | DDR5 ECC RDIMM |
| Memory Slots | 12 DIMM |
| Maximum Memory | Up to 3TB, depending on CPU and board revision |
| PCIe Slots | 3 × PCIe 5.0 x16, 2 × PCIe 5.0 x8 |
| M.2 | 2 × PCIe 5.0 x4 SATA/NVMe, 2280/22110 |
| LAN | Dual 10GbE + dedicated 1GbE IPMI |
| USB | 4 rear + 2 header USB 3.0 |
| Video | 1 × VGA |
| TPM | TPM 2.0 Header |
| Fan Headers | 6 × 4-pin PWM |
| BIOS | AMI 32MB SPI Flash EEPROM |
This motherboard is intended for professional users building AMD EPYC servers in Bangladesh, virtualization hosts, private-cloud infrastructure, database servers, AI and compute systems, high-memory workstations, and enterprise storage platforms. Its combination of ECC RDIMM support, PCIe 5.0 expansion, 10GbE networking, and remote management makes it substantially different from mainstream consumer desktop motherboards.
Before ordering, verify your exact AMD EPYC processor, motherboard revision, DDR5 ECC RDIMM specifications, chassis compatibility, power requirements, and required expansion cards. This is a server-class ATX motherboard rather than a conventional consumer gaming motherboard. For EPYC 9005 processors in particular, check that the board revision meets Supermicro's stated requirement.
Potaka IT helps businesses, professionals, system integrators, and server builders in Bangladesh source enterprise-grade computing hardware. Explore our motherboard collection, browse server solutions, compare processors, or find compatible DDR5 memory and SSD storage for your next professional system.
The H13SSL-NT supports AMD EPYC 9004 and 9005 series processors using the SP5 socket. EPYC 9005 drop-in support requires an appropriate board revision.
It has 12 DDR5 ECC RDIMM slots and supports up to 3TB in specified 1DPC configurations, depending on the processor and motherboard revision.
Yes. It includes dual 10GBase-T LAN through the Broadcom BCM57416 controller, plus a dedicated 1GbE IPMI management port.
Yes. The board provides three PCIe 5.0 x16 slots, two PCIe 5.0 x8 slots, and two PCIe 5.0 x4 M.2 interfaces.
The latest price of Supermicro H13SSL-NT SP5 Motherboard in Bangladesh is 140,000৳. You can buy the Supermicro H13SSL-NT SP5 Motherboard at best price from our website or visit any of our showrooms.
