| Basic Information | ||
| Supported CPU | Support Intel Core Ultra Processors(Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z890 Chipset | |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Expansion Slots | ||
| PCI | Support Intel Core Ultra Processors(Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes) Intel Z890 Chipset 2 x PCIe 4.0 x4 slots |
|
| M.2 Socket | Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports* Support Intel Core Ultra Processors(Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)** Intel Z890 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM slots | |
| Supported Memory | max. 128GB | |
| Maximum Memory | Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex ASUS Enhanced Memory Profile III (AEMP III) |
|
| Graphics | ||
| Graphics | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. In Thunderbolt4TM mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. |
|
| Connector & Ports | ||

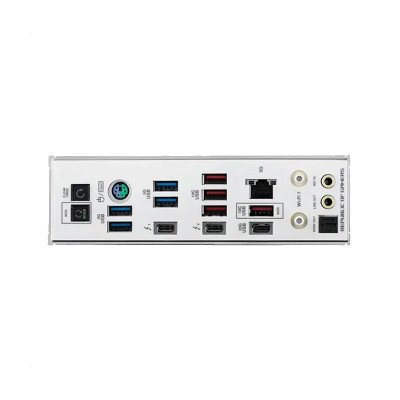

| Internal I/O Ports | Back Panel I/O Ports: 2 x Thunderbolt 4 ports (USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button 1 x PS/2 keyboard/mouse combo port Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 1 x Pause switch 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switches 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
|
| USB (s) | Rear USB (Total 11 ports) 2 x Thunderbolt 4 ports (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)* 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A *USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
|
| LAN Port (s) | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-bit/384 kHz playback on the front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
|
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4 |
|
| Others | ||
| Special Features | Extreme OC Kit - FlexKey button - LN2 Mode - ProbeIt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - SMD Capacitor - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Dual BIOS Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - HWiNFO ASUS AI Advisor ASUS Driver Hub ASUS GlideX Turbo Vcore Adobe Creative Cloud (Free Trial) Thunderbolt Share USB Wattage Watcher WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Replacement Warranty | |

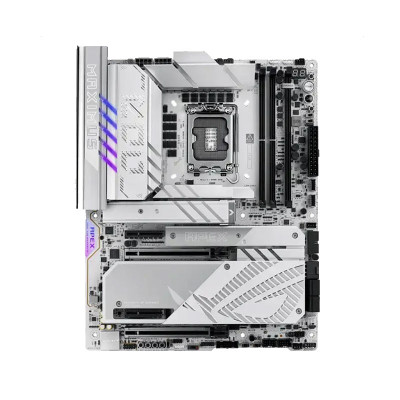

The ASUS ROG MAXIMUS Z890 APEX Intel LGA1851 ATX Gaming Motherboard is engineered for elite gamers, PC enthusiasts, and extreme overclockers who demand cutting-edge performance from their system. Built on the powerful Intel Z890 chipset and designed to support the latest Intel Core Ultra Processors (Series 2), this premium ATX gaming motherboard delivers blazing-fast DDR5 memory speeds, PCIe 5.0 connectivity, advanced cooling solutions, and AI-powered optimization tools. Whether you're building a high-end gaming PC or a powerful workstation, the ROG MAXIMUS Z890 APEX provides unmatched stability, speed, and customization.
The ASUS ROG MAXIMUS Z890 APEX motherboard supports Intel Core Ultra Processors (Series 2) using the latest LGA1851 socket, ensuring exceptional processing power for gaming, streaming, and productivity workloads. With support for Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, the motherboard intelligently pushes your CPU to higher frequencies when needed for improved performance. The Intel Z890 chipset further enhances system efficiency, offering stable power delivery and advanced connectivity features for modern gaming systems.
Designed for overclocking enthusiasts, this ROG APEX motherboard supports DDR5 memory up to an incredible 9600+ MT/s (OC). With two DIMM slots supporting up to 128GB of dual-channel DDR5 RAM, users can experience ultra-fast data transfer speeds and improved system responsiveness. Advanced memory technologies such as Intel XMP, ASUS Enhanced Memory Profile III (AEMP III), DIMM Flex, and DIMM Fit ensure optimized memory performance and stability even during heavy workloads or gaming sessions.
The ASUS ROG MAXIMUS Z890 APEX is built to support next-generation graphics cards and storage devices. It features two PCIe 5.0 x16 slots for maximum GPU bandwidth and additional PCIe 4.0 slots for expansion devices. For storage enthusiasts, the motherboard includes six M.2 slots and four SATA 6Gb/s ports, providing massive storage flexibility. Multiple PCIe 5.0 M.2 slots allow ultra-fast NVMe SSD performance, significantly reducing game loading times and boosting data transfer speeds. The included ROG DIMM.2 module expands storage capabilities further, allowing additional high-speed M.2 drives to be installed with efficient thermal management.
Connectivity is a major highlight of the ASUS ROG MAXIMUS Z890 APEX. It features dual Thunderbolt 4 ports with USB Type-C connectivity that support ultra-fast data transfer, high-resolution displays, and multi-device connectivity. Users can connect 8K displays or dual 4K monitors with impressive bandwidth. The motherboard also includes the latest Wi-Fi 7 technology, delivering speeds up to 5.8Gbps with support for 2.4GHz, 5GHz, and 6GHz bands. Combined with Bluetooth 5.4 and a high-speed Realtek 5Gb Ethernet port, users can enjoy stable and ultra-fast wired or wireless networking for gaming, streaming, and large file transfers.
For immersive gaming and entertainment, the motherboard is equipped with ROG SupremeFX 7.1 Surround Sound powered by the ALC4080 high-definition audio codec. With 120dB signal-to-noise ratio playback and high-quality audio components including Savitech amplifiers and premium capacitors, users can enjoy crystal-clear sound output. Gold-plated audio jacks, optical S/PDIF output, and advanced shielding technology ensure professional-grade audio performance.
The ASUS ROG MAXIMUS Z890 APEX is built specifically for extreme overclocking. It includes an Extreme OC Kit featuring LN2 Mode, Slow Mode, Safe Boot, Start button, ReTry button, and ProbeIt measurement points. These tools allow enthusiasts to push their hardware beyond limits while maintaining precise control over system stability. The motherboard also integrates advanced thermal solutions including VRM heatsinks, M.2 heatsinks with backplates, and multiple fan headers to maintain optimal cooling performance. ASUS AI Cooling II and Fan Xpert 4 intelligently adjust fan curves to maintain system temperatures during intense gaming or overclocking sessions.
This ATX gaming motherboard offers extensive connectivity options including up to 11 rear USB ports and 10 front USB connections, featuring USB 20Gbps Type-C with Quick Charge 4+ support. The front USB Type-C port supports up to 60W fast charging, making it ideal for modern devices. ASUS Q-Design and EZ DIY technologies simplify PC building with features such as PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Connector, Q-LED diagnostics, and BIOS FlashBack. Dual BIOS support ensures safe firmware updates and reliable system recovery.
The ASUS ROG MAXIMUS Z890 APEX includes a powerful suite of software tools designed to enhance performance and system management. Armoury Crate enables unified control of RGB lighting, cooling profiles, and hardware monitoring. AI Overclocking Guide and ASUS AI Advisor help users optimize CPU performance automatically. Additional software like AIDA64 Extreme, Dolby Atmos, GameFirst networking optimization, and Aura Sync RGB lighting control ensures a fully customizable gaming environment.
Potaka IT is a trusted destination for premium PC components and gaming hardware in Bangladesh. When you purchase the ASUS ROG MAXIMUS Z890 APEX Intel LGA1851 ATX Gaming Motherboard from Potaka IT, you receive genuine ASUS products with reliable warranty support and competitive pricing. Our expert team ensures customers get the latest high-performance gaming components along with professional guidance for building powerful PCs. Potaka IT focuses on delivering authentic technology products, fast service, and customer satisfaction. Whether you are building a next-generation gaming PC or upgrading your workstation, Potaka IT provides the latest ASUS ROG motherboards and premium hardware to meet your performance needs.
The latest price of ASUS ROG MAXIMUS Z890 APEX Intel Gaming Motherboard in Bangladesh is 0৳. You can buy the ASUS ROG MAXIMUS Z890 APEX Intel Gaming Motherboard at best price from our website or visit any of our showrooms.
