| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z890 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|
| Expansion Slots | ||
| PCI | Intel® Core™ Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|
| M.2 Socket | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** Intel® Z890 Chipset M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DIMM slots | |
| Supported Memory | Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt™ video outputs Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 8K@60Hz as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | Back Panel I/O Ports 2 x Thunderbolt 4 (2 x USB Type-C) 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge) 3 x USB 5Gbps ports (3 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 7 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over Voltage jumper 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Alteration PCIe mode switch 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Rear USB (Total 14 ports) 2 x Thunderbolt™ 4 (2 x USB Type-C®) 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)** 3 x USB 5Gbps ports (3 x Type-A) Front USB (Total 11 ports) 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports * USB Type-C® power delivery output: 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A. |
|
| LAN Port (s) | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** Intel® Z890 Chipset M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | 2 x Gold-plated audio jacks | |
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. | |
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX TurboV Core USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

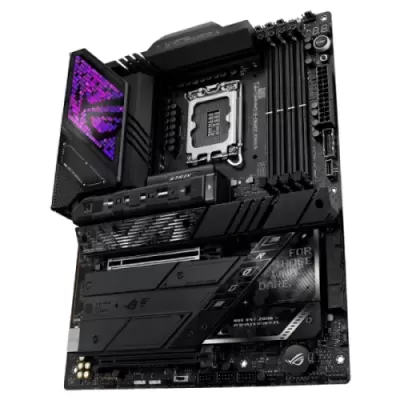

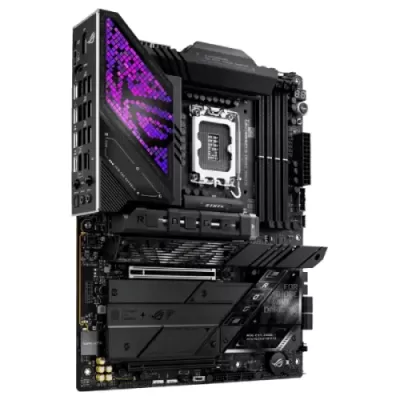

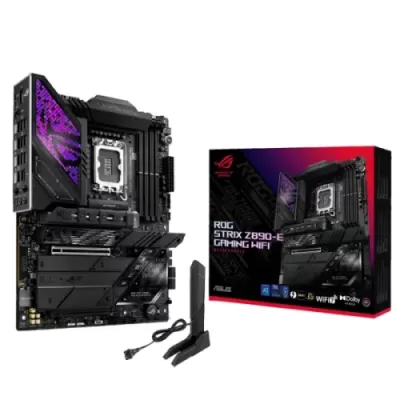

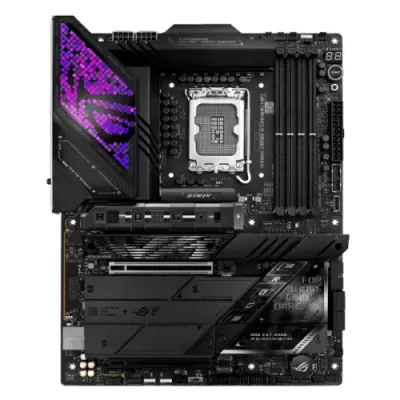

The ASUS ROG STRIX Z890-E GAMING WIFI LGA1851 ATX Motherboard is a premium motherboard designed for high-performance gaming PCs, content creation, and demanding desktop workloads. Powered by the Intel Z890 chipset, it supports compatible Intel Core Ultra Processors (Series 2), DDR5 memory up to 256GB, seven M.2 storage slots, PCIe 5.0 connectivity, Wi-Fi 7, Bluetooth 5.4, and 5Gb Ethernet. For PC enthusiasts in Bangladesh, this ASUS ROG Strix motherboard offers advanced connectivity, flexible storage expansion, and powerful customisation options for a modern desktop build.
Whether you are upgrading your gaming setup or building a workstation for software development, video editing, or multitasking, the ROG STRIX Z890-E GAMING WIFI provides a feature-rich foundation. Its ATX design, advanced cooling features, and high-speed interfaces make it suitable for users who want performance and upgrade flexibility from their next PC.
This motherboard supports compatible Intel Core Ultra Processors (Series 2) through the LGA1851 socket. The Intel Z890 chipset provides a modern platform for high-performance computing, gaming, and productivity. Its advanced power delivery and VRM cooling design help maintain stable operation under demanding workloads when paired with suitable processor cooling and system airflow.
Before purchasing, verify that your chosen processor appears on the official ASUS CPU support list. This ensures compatibility with the motherboard and the installed BIOS version.
The ASUS ROG STRIX Z890-E GAMING WIFI features four DDR5 memory slots with support for up to 256GB of RAM. Compatible memory configurations can reach speeds of 9200+ MT/s through overclocking, depending on the processor, memory kit, BIOS, and system configuration.
Intel XMP support and ASUS memory optimisation technologies help users configure compatible RAM. The available capacity and speed make this motherboard suitable for modern games, demanding applications, software development, and intensive multitasking. For the best results, check the motherboard memory compatibility list before choosing a high-speed DDR5 kit.
One of the key advantages of this motherboard is its seven M.2 storage slots. Three support PCIe 5.0 x4 connectivity, while four support PCIe 4.0 x4, with one of the PCIe 4.0 slots also supporting compatible SATA-mode M.2 drives. Four additional SATA 6Gb/s ports provide options for compatible SATA storage devices.
This extensive storage capacity is ideal for users who want separate drives for Windows, applications, games, creative projects, and large files. PCIe 5.0 SSDs can provide higher bandwidth than PCIe 4.0 models, although actual speeds depend on the installed drive and workload. Integrated M.2 heatsinks help manage drive temperatures during demanding use.
The board includes a PCIe 5.0 x16 slot for compatible graphics cards and a PCIe 4.0 x16 physical slot operating at up to x4 mode. This makes it suitable for gaming PCs and graphics-intensive workstations using compatible expansion hardware.
For a balanced build, pair the motherboard with a compatible Intel processor, suitable cooling, a reliable power supply, and a graphics card that meets your performance requirements.
The integrated 2x2 Wi-Fi 7 module supports the 2.4GHz, 5GHz, and 6GHz frequency bands, subject to regional regulations and compatible equipment. Bluetooth 5.4 supports compatible wireless peripherals, while Realtek 5Gb Ethernet provides high-speed wired networking for supported network configurations.
Wi-Fi performance depends on your router, signal conditions, operating system, and network environment. Full Wi-Fi 7 functionality on Windows 11 requires version 24H2 or later, according to the supplied specifications.

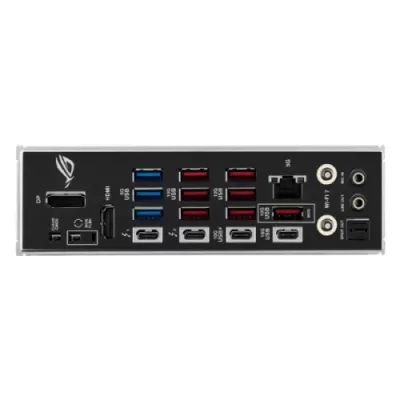

The ASUS ROG STRIX Z890-E GAMING WIFI features two Thunderbolt 4 USB Type-C ports, nine USB 10Gbps ports, and three USB 5Gbps Type-A ports on the rear panel. It also includes HDMI 2.1, DisplayPort 1.4, and an additional USB Type-C port supporting up to 30W Power Delivery fast charging for compatible devices.
These connections are useful for external SSDs, high-speed peripherals, compatible displays, and other modern accessories. Display output and resolution support depend on the connected monitor, interface, and processor graphics capabilities.
The onboard ROG SupremeFX audio system uses the Realtek ALC4080 codec and Savitech SV3H712 amplifier. Audio shielding, premium capacitors, gold-plated audio connections, and optical S/PDIF output contribute to a versatile audio setup for gaming, entertainment, and compatible audio equipment.
ASUS Aura Sync and three Addressable Gen 2 RGB headers allow custom lighting with compatible components. Additional features include BIOS FlashBack, Clear CMOS, Q-LED diagnostics, Q-Code, M.2 heatsinks, and a pre-mounted I/O shield to simplify installation, troubleshooting, and maintenance.
| Name | Details |
|---|---|
| Brand | ASUS |
| Model | ROG STRIX Z890-E GAMING WIFI |
| Chipset | Intel Z890 |
| Supported Processor | Intel Core Ultra Processors (Series 2) |
| CPU Socket | LGA1851 |
| Form Factor | ATX, 30.5 x 24.4cm |
| Memory | 4 x DDR5 DIMM, up to 256GB, up to 9200+ MT/s (OC) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 physical slot (x4 mode) |
| M.2 Slots | 7, including 3 PCIe 5.0 x4 slots |
| SATA | 4 x SATA 6Gb/s |
| Graphics Outputs | 1 x HDMI, 1 x DisplayPort, 2 x Thunderbolt 4 |
| Networking | Wi-Fi 7, Bluetooth 5.4, Realtek 5Gb Ethernet |
| USB Connectivity | 2 x Thunderbolt 4 Type-C, 9 x USB 10Gbps, 3 x USB 5Gbps on rear panel |
| Audio | ROG SupremeFX, Realtek ALC4080 |
| RGB | ASUS Aura Sync, 3 x Addressable Gen 2 headers |
| Warranty | 3 Years, subject to local warranty terms |
It supports compatible Intel Core Ultra Processors (Series 2) using the LGA1851 socket.
It supports up to 256GB of DDR5 memory across four DIMM slots, with speeds up to 9200+ MT/s through supported overclocking configurations.
The motherboard has seven M.2 slots and four SATA 6Gb/s ports. Check the manual for drive compatibility and slot configuration details.
Yes. It includes Wi-Fi 7 and Bluetooth 5.4, with functionality dependent on compatible hardware, operating system support, and regional regulations.
Yes. Its modern Intel platform, PCIe 5.0 graphics support, high-speed DDR5 memory, and extensive SSD connectivity make it suitable for a powerful gaming PC.
The supplied product information lists a three-year manufacturing warranty. Confirm local warranty coverage and service conditions before purchasing.
For the ASUS ROG STRIX Z890-E GAMING WIFI motherboard price in Bangladesh, availability, and warranty information, visit Potaka IT.
The latest price of ASUS ROG STRIX Z890-E GAMING WIFI LGA1851 Motherboard in Bangladesh is 76,950৳. You can buy the ASUS ROG STRIX Z890-E GAMING WIFI LGA1851 Motherboard at best price from our website or visit any of our showrooms.
