| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 | |
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot with Q-Rlease Slim |
|
| M.2 Socket | 2 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8400+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x HDMI™ port*** 1 x USB 10Gbps ports support USB Type-C® display outputs**** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. *** Supports 4K@60Hz as specified in HDMI 2.1. ****Supports max. 4K@60Hz as specified in DisplayPort 1.4a ***** VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Extra Flow Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Back Panel I/O Ports 1 x USB 20Gbps port(s) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 3 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x FlexKey button |
|
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port(s) (1 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* * Specifications vary by CPU types. |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** |
|
| RAID | AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 *Specifications vary by CPU types. |
|
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

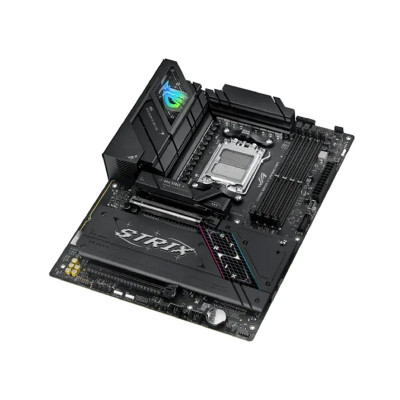

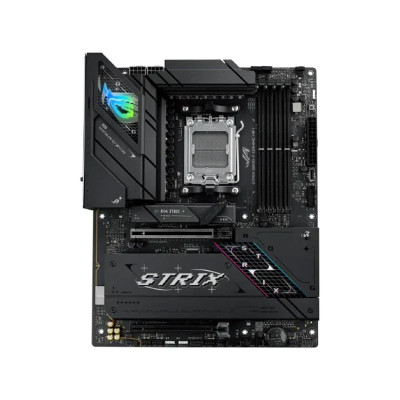

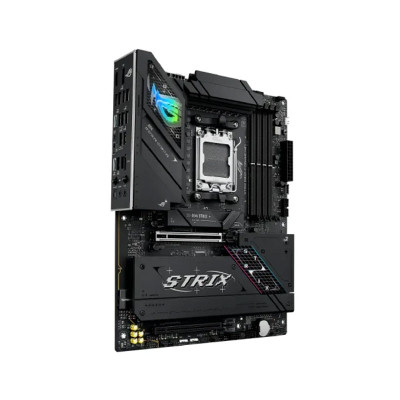

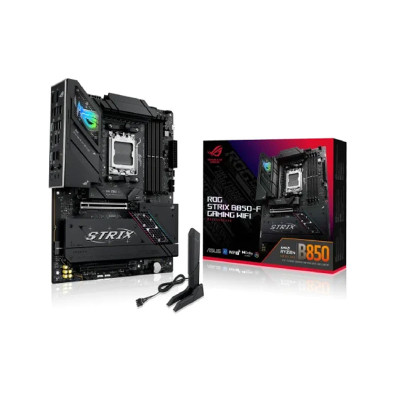

The ASUS ROG STRIX B850-F GAMING WIFI AM5 DDR5 Motherboard is designed for compact, high-performance AMD Ryzen gaming systems that need fast connectivity, next-generation storage, and premium ROG features. Built around the AMD B850 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors and offers two DDR5 DIMM slots with up to 128GB memory and speeds up to 8400+ MT/s (OC). With PCIe 5.0, dual M.2 slots, Wi-Fi 7, Intel 2.5Gb Ethernet, SupremeFX audio, and a compact 17 × 17 cm form factor, it is a strong platform for space-conscious gaming PC builds in Bangladesh.
This ASUS ROG STRIX B850-F GAMING WIFI motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors through the AM5 socket. Its two DDR5 DIMM slots support up to 128GB, dual-channel memory, AMD EXPO, and ASUS Enhanced Memory Profile (AEMP), with supported memory speeds reaching up to 8400+ MT/s (OC).
The primary PCIe x16 slot supports PCIe 5.0 with compatible Ryzen 9000 and 7000 Series processors. Two M.2 slots support PCIe 5.0 x4 with Ryzen 7000 and 9000 processors, while Ryzen 8000 processors provide PCIe 4.0 x4 operation. Two SATA 6Gb/s ports add further storage flexibility.
Integrated 2x2 Wi-Fi 7 supports 2.4GHz, 5GHz, and 6GHz bands with 160MHz bandwidth and a stated transfer rate of up to 2.9Gbps. Bluetooth 5.4 provides wireless peripheral connectivity, while Intel 2.5Gb Ethernet and ASUS LANGuard offer a high-speed wired networking option for gaming and other bandwidth-intensive workloads.

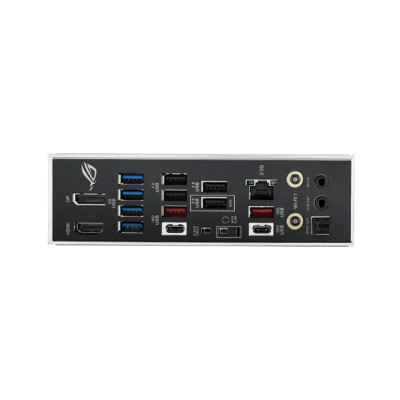

The ROG SupremeFX 7.1-channel audio solution uses the Realtek ALC4080 codec with SupremeFX Shielding Technology, Savitech SV3H712 AMP, premium audio capacitors, an audio cover, and rear optical S/PDIF output. Front-panel playback supports up to 32-bit/384kHz. The rear I/O includes eight USB ports, including USB 20Gbps Type-C and multiple USB 10Gbps ports.
ASUS Q-Design features include M.2 Q-Latch, M.2 Q-Slide, PCIe Slot Q-Release Slim, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, and Q-Slot. BIOS FlashBack, Clear CMOS, a pre-mounted I/O shield, SafeSlot, SafeDIMM, ProCool, and dedicated M.2 thermal solutions make installation and maintenance easier.
This motherboard is suited to users building a compact AM5 gaming PC who still want premium connectivity and modern performance features. It is especially relevant for builds using fast DDR5 memory, PCIe 5.0 components, NVMe SSDs, Wi-Fi 7 networking, and a high-speed wired connection while keeping the motherboard footprint at 17 × 17 cm.
| Specification | Details |
|---|---|
| Socket | AMD AM5 |
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen 9000, 8000 & 7000 Series |
| Form Factor | Mini-ITX, 17 × 17 cm |
| Memory | 2 × DDR5 DIMM, up to 128GB |
| Memory Speed | Up to 8400+ MT/s (OC) |
| PCIe | 1 × PCIe 5.0 x16 |
| M.2 | 2 × M.2 |
| SATA | 2 × SATA 6Gb/s |
| Wireless | 2x2 Wi-Fi 7, Bluetooth 5.4 |
| LAN | Intel 2.5Gb Ethernet |
| Audio | ROG SupremeFX 7.1-channel, Realtek ALC4080 |
| Display | HDMI 2.1, USB Type-C DisplayPort Alt Mode |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
Browse the motherboard collection for more platforms, explore ASUS AMD motherboards for compatible AMD systems, or visit the ASUS collection for more ASUS hardware. You can also explore PC components for other parts for your gaming PC.
It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.
Yes. It includes 2x2 Wi-Fi 7 with 2.4GHz, 5GHz, and 6GHz frequency-band support, 160MHz bandwidth, and a stated transfer rate of up to 2.9Gbps.
It provides two M.2 slots. With Ryzen 7000 and 9000 Series processors, both slots support PCIe 5.0 x4 according to the supplied specifications.
The motherboard has two DDR5 DIMM slots and supports up to 128GB of memory, with supported speeds up to 8400+ MT/s (OC).
You can check availability and purchase this ASUS ROG motherboard from Potaka IT.
The latest price of Asus ROG STRIX B850-F GAMING WIFI Motherboard in Bangladesh is 47,500৳. You can buy the Asus ROG STRIX B850-F GAMING WIFI Motherboard at best price from our website or visit any of our showrooms.
