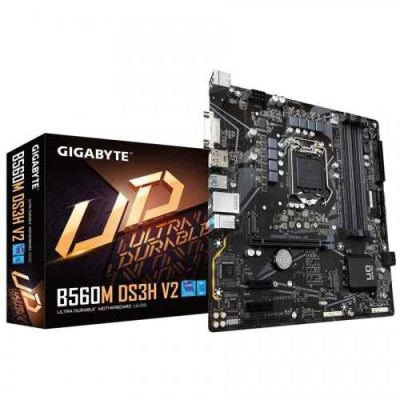

Gigabyte B560M DS3H V2 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M DS3H V2 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M DS3H V2 10th and 11th Gen Micro ATX Motherboard - Ultimate Power, Professional Performance. A combination of powerful features make the Gigabyte B560M DS3H V2 10th and 11th Gen Micro ATX Motherboard the perfect choice for any build. Its BIOS, with a 1 x 256 Mbit flash and use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, sets it apart as both reliable and secure. Based on the Intel B560 Express Chipset, you can use the Micro ATX Form Factor of 24.4cm x 24.4cm in your setup while utilizing an LGA1200 package 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors or 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family, and L3 cache varying with CPU. Expansion slots include 1 x PCI Express x16 slot, running at x16 and conforming to the PCI Express 4.0 standard, 2 x PCI Express x1 slots (conforming to the PCI Express 3.0 standard), and 4 x DDR4 DIMM slots. Graphics support include 1 x Display Port, 1 x DVI-D port, and 1 x HDMI port, supporting resolutions of up to 4096x2304@60 Hz, 1920x1200@60 Hz, and 4096x2160@30 Hz respectively. For audio, there are 3 x audio jacks, while I/O ports include 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V, 6 x SATA 6Gb/s connectors, 2 x M.2 Socket 3 connectors, and 2 x USB 2.0/1.1 headers. Connectivity includes Realtek GbE LAN chip (1 Gbps/100 Mbps), and chipset offering 1 x USB Type-C port on the back panel and 5 x USB 3.2 Gen 1 ports (3 on the back panel, 2 through the internal USB header). Intell Optane Memory is also ready.

Features:

The Gigabyte B560M DS3H V2 is a micro ATX motherboard designed to support 10th and 11th Gen Intel Core processors. Here are some of its key features:

• Supports 11th and 10th Gen Intel®  Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
• Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Overall, the Gigabyte B560M DS3H V2 is a solid choice for a budget micro ATX build that supports the latest Intel processors and offers a good balance of features and performance.
