-400x400.jpg "GIGABYTE X670 GAMING X AX DDR5 AMD AM5 ATX Motherboard")
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors | |
| Chipset | AMD X670 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x THB_U4 add-in card connector 1 x power button 1 x reset button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| USB (s) | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU) (Note) Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 4 x SATA 6Gb/s connectors |
|
| Audio | 3 x audio jacks | |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

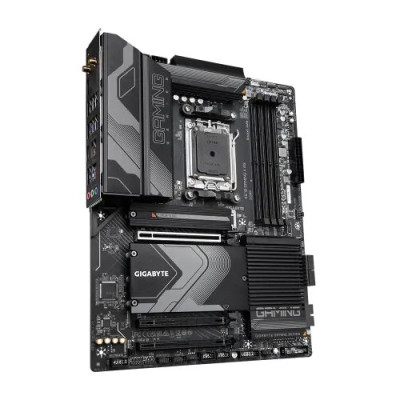

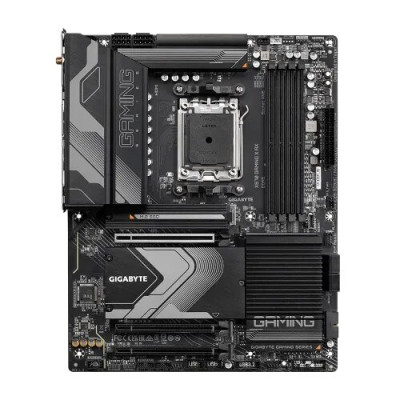

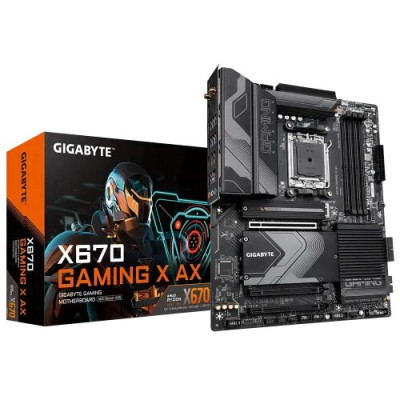

The GIGABYTE X670 GAMING X AX DDR5 AMD AM5 ATX Motherboard is an advanced AM5 ATX motherboard built for next-gen AMD Ryzen 8000 and 7000 Series processors. With support for ultra-fast DDR5 memory, PCIe 5.0 storage, and high-performance Wi-Fi 6E, this motherboard is designed to elevate your gaming and productivity experience. Its robust power delivery, customizable RGB support, and comprehensive I/O make it a future-ready choice for PC enthusiasts and gamers in Bangladesh.
Built to support AMD’s latest processors on the AM5 socket, delivering next-level performance for gaming, streaming, and multitasking.
Features four DDR5 DIMM slots supporting speeds up to 6400MHz (OC), allowing blazing-fast memory bandwidth for smoother performance.
Equipped with four M.2 connectors including one PCIe 5.0 slot for ultra-fast SSDs, ensuring lightning-fast load times and file transfers.
Experience ultra-reliable wireless connectivity with AMD RZ616 Wi-Fi 6E and Bluetooth 5.2, supporting tri-band frequencies for better performance.
Boost your network speeds with the integrated 2.5GbE LAN chip, ideal for competitive online gaming and large data transfers.
Supports multiple PCIe 4.0 slots and AMD CrossFire technology, offering flexibility for multi-GPU setups and future upgrades.
Enjoy high-fidelity audio with 7.1-channel HD support, ideal for gaming and entertainment systems.
Includes a wide array of USB ports including USB 3.2 Gen 2x2 Type-C, making connectivity easy and future-proof.
Customizable RGB headers and fan connectors let you build a visually stunning and thermally optimized rig.
Comes with a 3-year warranty and exclusive features like Q-Flash Plus, Smart Backup, and GIGABYTE Control Center for easier system management.
If you're planning a high-performance build, there's no better place to buy the GIGABYTE X670 GAMING X AX motherboard in Bangladesh than Potaka IT. We offer genuine products with warranty, competitive pricing, and trusted after-sales support. Shop now from Potaka IT for reliable delivery and expert service on your next PC upgrade.
The latest price of GIGABYTE X670 GAMING X AX DDR5 Motherboard in Bangladesh is 41,000৳. You can buy the GIGABYTE X670 GAMING X AX DDR5 Motherboard at best price from our website or visit any of our showrooms.
