| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th Gen, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors |
|
| Audio | 2 x audio jacks | |
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

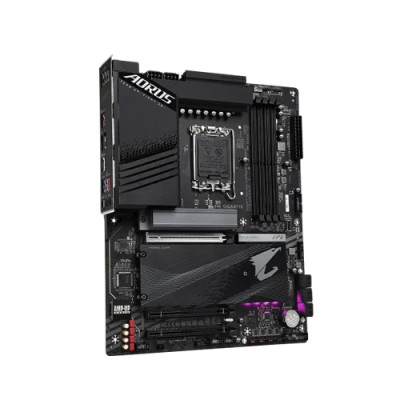

The GIGABYTE Z790 AORUS ELITE ATX Motherboard is built for elite-level performance and stability, designed to handle Intel's latest 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors. Equipped with the powerful Intel Z790 Express Chipset and full support for DDR5 memory, this motherboard ensures next-gen computing with top-tier speed, advanced connectivity, and robust thermal design. It supports PCIe 5.0 for ultra-fast GPU communication, integrated Intel Wi-Fi 6E, 2.5GbE LAN, and a wide range of USB and storage options to meet the demands of gamers, creators, and power users in Bangladesh.
Compatible with Intel’s 14th, 13th, and 12th Gen processors, the LGA1700 socket paired with the Z790 chipset delivers unmatched performance for high-end tasks and gaming.
Comes with 4 DIMM slots supporting DDR5 memory up to 7600MHz (O.C.) and 128GB capacity, enabling ultra-responsive multitasking and future-proof performance.
Features a primary PCIe 5.0 x16 slot to deliver double the bandwidth compared to PCIe 4.0, optimized for the latest GPUs and graphics-intensive applications.
Enjoy blazing-fast wireless performance with Wi-Fi 6E for reduced latency and seamless connectivity, along with Bluetooth 5.3 for modern peripheral support.
Equipped with four M.2 slots (including PCIe 4.0 x4 support) and six SATA ports, this board delivers lightning-fast read/write speeds for NVMe SSDs and massive storage configurations.
The Realtek 2.5GbE LAN chip ensures low-latency and high-bandwidth wired networking for gaming, streaming, and productivity without compromise.
Includes HDMI 2.0 and DisplayPort outputs supporting 4K resolution at high refresh rates for crystal-clear visuals using Intel’s integrated graphics.
Supports 7.1-channel HD audio with S/PDIF out for immersive sound quality, ideal for gaming, content creation, and media consumption.
Easily update your BIOS without a CPU or memory installed using GIGABYTE’s Q-Flash Plus technology — a future-saver for system upgrades and stability.
Designed with a standard ATX layout for compatibility with most cases, offering flexibility in building and upgrading systems.
If you're searching for the best place to buy GIGABYTE Z790 AORUS ELITE ATX Motherboard in Bangladesh, Potaka IT is your trusted tech partner. We offer genuine products, expert advice, and competitive pricing, along with official warranty support. Whether you're upgrading your rig or building a new one, Potaka IT ensures a hassle-free experience with fast delivery and responsive customer service. Choose Potaka IT to get the performance and reliability your setup deserves.
The latest price of GIGABYTE Z790 AORUS ELITE Motherboard in Bangladesh is 35,500৳. You can buy the GIGABYTE Z790 AORUS ELITE Motherboard at best price from our website or visit any of our showrooms.
