| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th Gen, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors |
|
| Audio | 2 x audio jacks | |
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

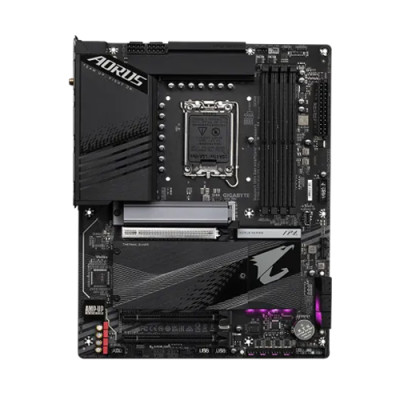

The GIGABYTE Z790 AORUS ELITE AX ATX Motherboard is designed for high-end gamers, performance builders, and future-proof PC enthusiasts. With full support for Intel’s 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, this motherboard ensures robust compatibility and performance. Powered by the Intel Z790 Express chipset and built with an ATX form factor, it offers excellent expandability, advanced cooling features, and extensive connectivity. Whether you're building a next-gen gaming rig or a powerhouse workstation, the Z790 AORUS ELITE AX delivers top-tier features and exceptional reliability.
Equipped with the LGA1700 socket, this motherboard supports Intel’s latest 14th Gen along with 13th and 12th Gen processors, providing long-term usability and enhanced performance with varying L3 cache based on CPU.
Supports DDR5 memory modules up to 7600MHz (OC) with a dual-channel design and up to 128GB total capacity, ensuring ultra-fast multitasking and gaming responsiveness.
Features a PCIe 5.0 x16 slot for GPUs, plus two PCIe 4.0 x4 slots for additional cards, offering blazing-fast speeds and support for AMD CrossFire multi-GPU configurations.
Includes 4 M.2 connectors and 6 SATA ports, with RAID 0/1/5/10 support for both NVMe and SATA drives, giving users flexible and secure high-speed storage setups.
Built-in Intel Wi-Fi 6E with Bluetooth 5.3 and Realtek 2.5GbE LAN ensures fast, reliable, and future-ready networking for online gaming and media streaming.
Integrated Intel HD Graphics with HDMI 2.0 and DisplayPort 1.2 supports resolutions up to 4K, making it ideal for creators and gamers who demand visual clarity.
Powered by Realtek Audio CODEC, this board supports 7.1-channel HD audio with S/PDIF out, customizable via included software for immersive sound experiences.
Offers a wide range of USB options including USB-C 3.2 Gen2x2, multiple USB 3.2 Gen1/Gen2, and USB 2.0 ports, providing fast and versatile peripheral connections.
Designed with multiple fan headers, water cooling support, and smart backup features, this motherboard ensures stable performance even during intense workloads.
Comes with licensed AMI UEFI BIOS and GIGABYTE Control Center for seamless system management, updates, and monitoring—ideal for advanced users and gamers.
If you're looking for the best place to buy the GIGABYTE Z790 AORUS ELITE AX ATX Motherboard in Bangladesh, Potaka IT is your trusted destination. We offer genuine products with official warranties and competitive pricing, making us a top choice for PC enthusiasts and professional builders alike. With our expert customer support and fast delivery, you can confidently shop your next-gen motherboard from Potaka IT today.
The latest price of GIGABYTE Z790 AORUS ELITE AX Motherboard in Bangladesh is 40,000৳. You can buy the GIGABYTE Z790 AORUS ELITE AX Motherboard at best price from our website or visit any of our showrooms.
