| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 | |
| BIOS | Flash BIOS Button | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| M.2 Socket | 3x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Display Port (s) | 1x DisplayPort 1.2 | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) |
|
| LAN Port (s) | 1x Realtek 8126VB 5G LAN | |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/8300 Series processors) |
|
| Audio | 1x Front Audio (JAUD) | |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen 9000 Series Processors |
|
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
The MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard is built for gamers and performance enthusiasts who want cutting-edge speed, stability, and future-ready features. Designed around the latest AMD B850 chipset, this motherboard delivers seamless compatibility with Ryzen 9000, 8000, and 7000 series processors while offering blazing-fast connectivity, DDR5 memory support, and PCIe 5.0 performance. Whether you're building a high-end gaming PC or a powerful workstation, this board gives you the flexibility and reliability you need.
At the core of this MSI B850 motherboard is support for AMD Socket AM5, ensuring full compatibility with next-generation AMD Ryzen processors. The advanced B850 chipset provides enhanced system stability, efficient power delivery, and improved performance for modern gaming and productivity tasks. With features like the Flash BIOS Button, users can easily update firmware without hassle, making it highly convenient for upgrades.
This gaming motherboard supports DDR5 memory up to an impressive 8200+ MT/s (OC), allowing you to experience ultra-fast data transfer and smoother multitasking. With four DIMM slots supporting up to 256GB of memory, it ensures future-proof scalability. AMD EXPO support and dual-channel architecture further enhance performance, making it ideal for gaming, streaming, and heavy workloads.
The MSI B850 GAMING PLUS WIFI PZ motherboard features multiple PCIe slots, including a PCIe 5.0 x16 slot for the latest graphics cards. This ensures maximum GPU performance for high-end gaming and content creation. Additional PCIe 4.0 and PCIe 3.0 slots provide flexibility for expansion cards, ensuring your build can evolve over time.
Storage performance is taken to the next level with three M.2 slots, including PCIe 5.0 support for lightning-fast SSD speeds. Combined with four SATA 6G ports, this motherboard offers versatile storage options for gamers and professionals alike. RAID support for both SATA and NVMe devices ensures improved data security and performance optimization.
Stay ahead with built-in Wi-Fi 7 technology, offering speeds up to 5.8Gbps and support for the latest wireless standards. The integrated Realtek 5G LAN ensures ultra-fast and stable wired connections, perfect for competitive gaming and streaming. Bluetooth 5.4 support enhances device connectivity for peripherals and accessories.

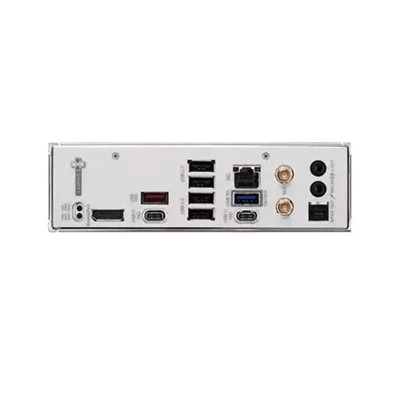

This ATX motherboard comes equipped with a wide range of USB ports, including USB 10Gbps Type-A and Type-C for high-speed data transfer. Multiple fan headers, pump support, and RGB connectors allow for efficient cooling and customizable aesthetics. The inclusion of EZ Debug LED makes troubleshooting easier, especially for first-time builders.
Enjoy high-quality sound with the Realtek ALC897 7.1-channel HD audio, delivering immersive gaming and entertainment experiences. The DisplayPort 1.2 output supports up to 4K resolution at 60Hz, ensuring crisp visuals for compatible systems.
When you choose Potaka IT, you’re not just buying a motherboard—you’re investing in reliability and trusted service. Potaka IT offers genuine MSI products, competitive pricing in Bangladesh, and dependable customer support. Whether you're upgrading or building a new PC, you can count on authentic products, fast delivery, and a smooth purchasing experience. The MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard is a perfect blend of performance, connectivity, and future-ready features, making it an excellent choice for gamers and PC builders looking for long-term value.
The latest price of MSI B850 GAMING PLUS WIFI PZ Motherboard in Bangladesh is 33,000৳. You can buy the MSI B850 GAMING PLUS WIFI PZ Motherboard at best price from our website or visit any of our showrooms.
