| Basic Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL B760 | |
| Form Factor | mATX 200mmx236.16mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 1x USB 3.2 Gen1 Type A ports |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| LAN Port (s) | Realtek RTL8111H Gigabit LAN | |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Audio | Audio Connectors | |
| VGA (s) | 1x VGA | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

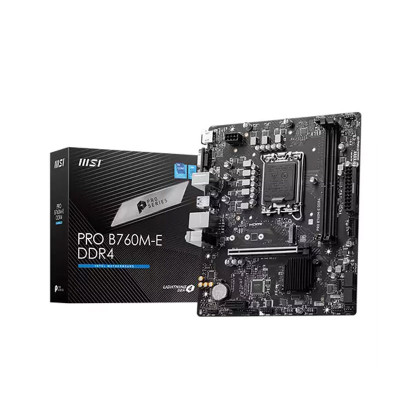

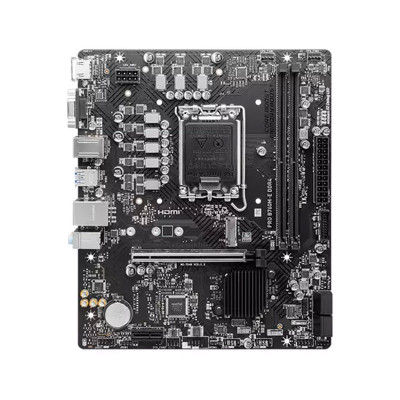

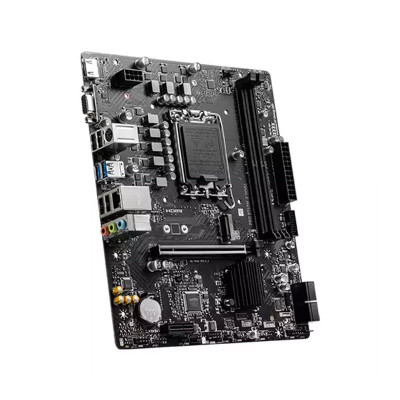

The MSI PRO B760M-E DDR4 13th Gen mATX Motherboard is a reliable and efficient solution for building modern Intel-based systems. Designed to support 14th, 13th, and 12th Gen Intel Core processors, this motherboard delivers stable performance, essential connectivity, and solid expandability. With DDR4 memory support, PCIe 4.0 compatibility, and a compact micro-ATX form factor, it is ideal for office PCs, home setups, and budget gaming builds.
Built with the Intel B760 chipset and LGA 1700 socket, the MSI PRO B760M-E supports Intel Core 14th, 13th, and 12th Gen processors, along with Pentium Gold and Celeron CPUs. This ensures flexibility for users looking to build or upgrade a powerful and future-ready desktop system.
This motherboard features two DDR4 DIMM slots supporting up to 64GB of memory. It supports memory speeds up to 4800MHz (OC), allowing improved system responsiveness and multitasking performance. With Intel XMP support, users can easily enable memory overclocking for better efficiency.
The MSI PRO B760M-E includes a PCIe 4.0 x16 slot for high-speed graphics cards and a PCIe x1 slot for additional expansion. This ensures compatibility with modern GPUs and other add-on cards, making it suitable for gaming and productivity tasks.
For storage, the motherboard offers one M.2 slot supporting PCIe 4.0 x4 and SATA modes, along with four SATA 6Gbps ports. This combination allows users to build fast storage solutions with SSDs and HDDs for improved system speed and data management.
The board provides HDMI and VGA outputs for integrated graphics, supporting up to 4K resolution via HDMI. It is suitable for users who rely on CPU integrated graphics for everyday tasks and office applications.
The MSI PRO B760M-E includes multiple USB ports, including USB 3.2 Gen1 Type-A for faster data transfer. It also features Realtek Gigabit LAN for stable wired networking and various internal connectors for fans, RGB lighting, and front panel connectivity. Equipped with the Realtek ALC897 codec, this motherboard delivers 7.1-channel HD audio for immersive sound quality. It also includes EZ Debug LEDs for easy troubleshooting, helping users quickly identify hardware issues during setup.
With a micro-ATX form factor, the MSI PRO B760M-E fits easily into compact PC cases while still offering essential features and expandability. It is ideal for space-saving builds without sacrificing performance.
Potaka IT offers genuine MSI motherboards at competitive prices in Bangladesh. When you buy from Potaka IT, you receive authentic products, fast delivery, trusted customer support, and reliable after-sales service. It is a dependable place to purchase original PC components for your build. The MSI PRO B760M-E DDR4 13th Gen mATX Motherboard is a solid choice for users looking for stability, compatibility, and value. It is perfect for office setups, home users, and budget-conscious builders who want reliable performance with modern Intel processors.
The latest price of MSI PRO B760M-E DDR4 Motherboard in Bangladesh is 12,800৳. You can buy the MSI PRO B760M-E DDR4 Motherboard at best price from our website or visit any of our showrooms.
