| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket | |
| Chipset | INTEL B860 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Supports up to 32-Bit/192 kHz |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* * M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. |
|
| M.2 Socket | 4 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
|
| Maximum Memory | Maximum Memory Capacity 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** 1 x USB4® (20Gbps) ports support USB Type-C® display outputs**** * Graphics specifications may vary between CPU types |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 header(s) 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header Back Panel I/O Ports: 1 x USB4 (20Gbps) port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
|
| Display Port (s) | 1x DisplayPort 1.4a | |
| USB (s) | Rear USB (Total 10 ports) 1 x USB4 (20Gbps) port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. |
|
| Audio | 2 x Audio jacks | |
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** |
|
| RAID | SATA RAID 0/1/5/10 | |
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud 30 Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty | |

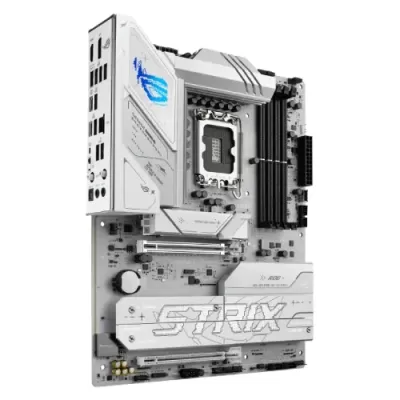

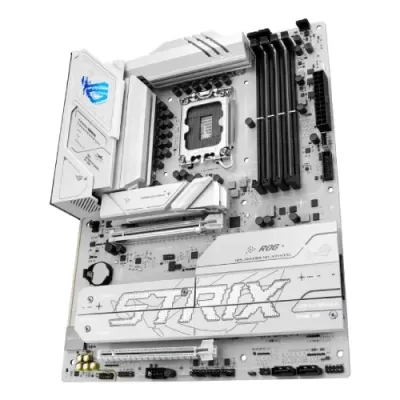

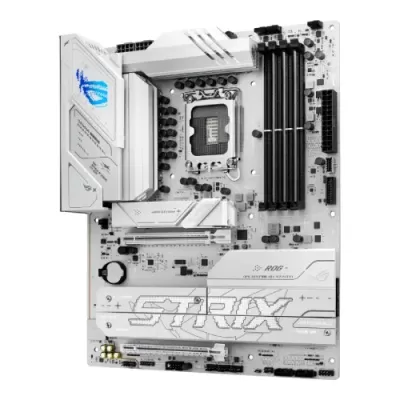

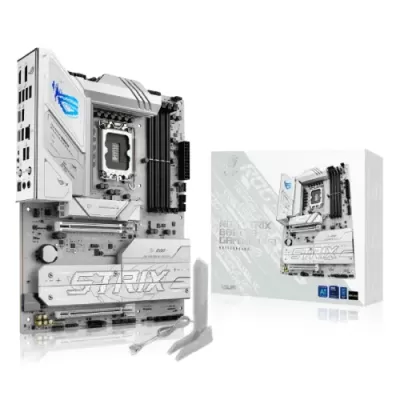

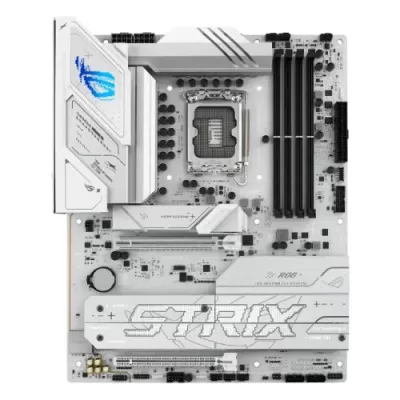

The Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard is designed for modern Intel Core Ultra desktop builds that demand fast memory, high-speed storage, reliable networking and flexible connectivity. Powered by the Intel B860 chipset, this ASUS ROG Strix motherboard supports Intel Core Ultra Processors (Series 2), DDR5 memory up to 256GB, PCIe 5.0 graphics connectivity and next-generation Wi-Fi 7. Its four M.2 slots, 2.5Gb Ethernet and USB4 Type-C connectivity make it a practical foundation for gaming PCs, professional workstations and powerful everyday desktop systems in Bangladesh.
If you are planning a complete desktop build, explore compatible processors and other PC components to choose hardware that matches your performance requirements and budget. For users who want a clean white-themed gaming setup, the ROG STRIX B860-A GAMING WIFI also offers a distinctive design suited to premium modern PC builds.
This ATX motherboard combines current-generation Intel platform support with advanced connectivity and convenient DIY installation features. Instead of focusing only on gaming, it provides the flexibility needed for multitasking, content creation, fast file transfers and long-term desktop upgrades.
The Asus ROG STRIX B860-A GAMING WIFI uses the Intel B860 chipset and LGA 1851 socket for compatible Intel Core Ultra desktop processors from Series 2. This platform is suitable for users building a new Intel desktop around supported CPUs for gaming, office productivity, software development, creative work and demanding multitasking.
Before buying, verify that your selected processor is supported by the motherboard's CPU compatibility list and BIOS version. LGA 1851 is a different socket from older Intel LGA 1700 platforms, so processors designed for previous sockets are not directly compatible.
Yes. Its PCIe 5.0 x16 graphics slot, DDR5 memory support, high-speed SSD connectivity and fast networking make it suitable for a modern gaming desktop. Actual gaming performance depends primarily on the installed processor, graphics card, memory configuration and cooling system rather than the motherboard alone.
This motherboard has four DDR5 DIMM slots and supports a maximum memory capacity of 256GB. ASUS specifies overclocked memory speeds of 8600+ MT/s in its technical specifications, although achievable speeds depend on the processor's memory controller, installed modules, BIOS and overall system configuration.
Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III) support help users configure compatible memory kits. For gaming and general productivity, choose a balanced memory kit that matches your workload and budget. Users working with virtual machines, large development projects or demanding creative applications may benefit from higher memory capacity.
The motherboard includes one PCIe 5.0 x16 slot for a compatible graphics card and four M.2 sockets for flexible storage expansion. The primary M.2 slot supports PCIe 5.0 x4, while the remaining M.2 slots support PCIe 4.0 x4 connections.
This configuration allows users to install a fast operating-system SSD, add storage for large games and applications, and expand their system as their requirements grow. Four SATA 6Gb/s ports provide additional compatibility with supported SATA SSDs and hard drives.
The fourth M.2 slot shares bandwidth with the secondary PCIe 4.0 x16 slot operating in x4 mode. When that PCIe slot is in use, M.2_4 is disabled. Check the motherboard manual before planning a multi-SSD configuration or installing additional expansion cards.
The integrated Wi-Fi 7 wireless module supports 2.4GHz, 5GHz and 6GHz bands, with 160MHz bandwidth and a theoretical transfer rate of up to 2.9Gbps under supported conditions. Bluetooth 5.4 provides wireless connectivity for compatible accessories, while 2.5Gb Ethernet offers a high-speed wired networking option.
Wi-Fi performance depends on the router, network congestion, signal strength, regional regulations and client-device compatibility. To take advantage of the 6GHz band and advanced Wi-Fi 7 features, you need compatible networking equipment and supported software. Wired 2.5Gb Ethernet is useful for local file transfers and compatible high-speed network infrastructure.

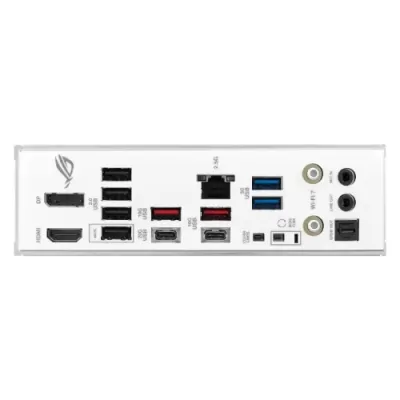

The rear I/O includes one USB4 Type-C port rated at 20Gbps, additional 10Gbps and 5Gbps USB ports, and four USB 2.0 ports. The board also provides HDMI 2.1 and DisplayPort 1.4a outputs, plus display output support through the USB4 Type-C port.
These connections help accommodate external storage, keyboards, mice, USB audio devices and other desktop peripherals. Display outputs depend on the installed processor's graphics capabilities; a compatible processor with integrated graphics is required to use motherboard video outputs without a discrete graphics card.
The Asus ROG STRIX B860-A GAMING WIFI includes VRM heatsinks, M.2 cooling hardware, CPU and AIO pump headers, and four chassis fan headers to support a well-planned cooling setup. Its power connectors and onboard thermal monitoring features help builders organise compatible system components.
ASUS Q-Design features, including M.2 Q-Latch, M.2 Q-Release, Q-DIMM, Q-LED and PCIe Slot Q-Release Slim, are intended to make selected installation and troubleshooting tasks more convenient. BIOS FlashBack and Clear CMOS buttons can also help with supported BIOS recovery or firmware-maintenance procedures.
The motherboard features a Realtek ALC1220P high-definition audio codec, supporting up to 32-bit/192kHz playback under applicable configurations, along with an optical S/PDIF output. Audio capabilities and available surround-sound features depend on the connected equipment and configuration.
For custom-built PCs, three Addressable Gen 2 RGB headers support compatible lighting devices through ASUS Aura Sync. Armoury Crate and related ASUS software provide supported options for lighting control, fan management and system configuration. Software availability and features can vary by version and operating system.
Choose this motherboard for a modern Intel Core Ultra gaming PC with DDR5 memory, a compatible PCIe graphics card and high-speed NVMe storage. It provides a flexible platform for pairing performance-focused components.
Multiple M.2 slots, fast networking and modern USB connectivity are useful for managing large project files, transferring media and connecting external devices. The ideal configuration depends on your software, processor and graphics requirements.
Developers, IT professionals and multitaskers can benefit from expandable memory, fast SSD storage and a range of wired and wireless connections. Select a supported processor and enough RAM for your applications and development environment.
The ROG STRIX B860-A GAMING WIFI is an appealing option for a coordinated white or light-coloured PC build. Pair it with a compatible case, graphics card, memory kit and cooling solution while checking component dimensions and connector requirements.
Before purchasing this motherboard in Bangladesh, review the following compatibility points to avoid unnecessary upgrade costs.
Compared with entry-level motherboards, the ROG STRIX B860-A GAMING WIFI offers a stronger emphasis on connectivity, storage expansion, enthusiast-oriented installation features and high-speed memory support. Its four M.2 slots and integrated Wi-Fi 7 are useful advantages for users who want fewer add-in cards and room for multiple SSDs.
Compared with an Intel Z-series motherboard, however, the B860 platform has different processor-overclocking and expansion capabilities. Choose a B860 board if its feature set meets your needs; consider a compatible Z-series platform if CPU overclocking and its additional platform features are priorities. Check the specifications of each exact model rather than comparing chipset names alone.
| Specification | Details |
|---|---|
| Brand | ASUS |
| Series | ROG Strix |
| Model | ROG STRIX B860-A GAMING WIFI |
| Motherboard Type | Desktop motherboard |
| CPU Socket | Intel LGA 1851 |
| Supported Processors | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4 cm |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to 8600+ MT/s (OC), subject to configuration |
| Memory Architecture | Dual-channel |
| Graphics Slot | 1 × PCIe 5.0 x16 |
| Additional Expansion | 1 × PCIe 4.0 x16 slot operating at x4 mode |
| M.2 Slots | 4 × M.2 |
| PCIe 5.0 M.2 | 1 × PCIe 5.0 x4 |
| PCIe 4.0 M.2 | 3 × PCIe 4.0 x4 |
| SATA | 4 × SATA 6Gb/s |
| RAID | SATA RAID 0, 1, 5 and 10 |
| Wireless | Wi-Fi 7 (802.11be) |
| Bluetooth | Bluetooth 5.4 |
| Wired Network | 2.5Gb Ethernet |
| HDMI | 1 × HDMI 2.1 |
| DisplayPort | 1 × DisplayPort 1.4a |
| USB4 | 1 × USB4 Type-C, 20Gbps |
| Rear USB | 10 ports |
| Audio Codec | Realtek ALC1220P |
| Audio Output | Up to 32-bit/192kHz under applicable configurations |
| RGB Support | ASUS Aura Sync, 3 × Addressable Gen 2 headers |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| BIOS FlashBack | Supported |
| Warranty | 3 years, as provided; confirm local coverage |
It supports compatible Intel Core Ultra desktop processors from Series 2 using the LGA 1851 socket. It does not support older Intel processors designed for different sockets.
Yes. It has four DDR5 memory slots and supports up to 256GB. Overclocked memory speeds depend on the CPU, memory modules, BIOS and system configuration.
The motherboard provides four M.2 slots, including one PCIe 5.0 x4 slot and three PCIe 4.0 x4 slots. Remember that M.2_4 is disabled when the secondary PCIe 4.0 x16 slot is operating.
Yes. It includes Wi-Fi 7 and Bluetooth 5.4, along with a 2.5Gb Ethernet port for wired networking.
Yes. Its primary PCIe 5.0 x16 slot supports compatible discrete graphics cards. Check your chosen GPU's size, power requirements and compatibility with the case and power supply.
That depends on the installed processor. Motherboard display outputs require a compatible CPU with integrated graphics. A processor without usable integrated graphics requires a compatible discrete graphics card for display output.
Yes. It includes a rear USB4 Type-C port rated at 20Gbps, additional rear USB Type-C connectivity and an internal front-panel USB Type-C connector.
It can be a suitable foundation for video editing, programming and demanding productivity when paired with an appropriate processor, sufficient DDR5 memory, fast SSD storage and, where needed, a compatible dedicated graphics card.
The supplied product information specifies a three-year manufacturing warranty. Confirm the applicable local warranty, service conditions and coverage with the seller before purchase.
Verify the CPU socket, processor support, DDR5 memory compatibility, ATX case clearance, PSU connectors, graphics card requirements, storage configuration and local warranty. These checks help ensure that all parts work together as intended.
If you are building a modern Intel desktop with DDR5 memory, PCIe 5.0 graphics support, multiple NVMe SSDs and next-generation wireless connectivity, the Asus ROG STRIX B860-A GAMING WIFI is a feature-rich option to consider. Compare the available price, stock status and warranty terms before choosing the right configuration for your build.
