| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 Chipset | |
| BIOS | 64MB (512Mb) Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | max. 256GB | |
| Maximum Memory | Supports up to 8400+MT/s(OC)*/8200+MT/s(OC)** with Ryzen™ 9000 Series Processors, 9000+MT/s(OC)*/8600+MT/s(OC)** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*** Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI™ port | |
| Internal I/O Ports | Back Panel I/O Ports: 4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek® 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin Front Panel System header 1 x Thunderbolt™ (USB4®) header |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Rear USB (Total 10 ports) 4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C®output (USB Type-C Current): max. 5V/3A. |
|
| LAN Port (s) | 1 x Realtek® 2.5Gb Ethernet TUF LANGuard |
|
| Audio | Realtek® ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback** Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
|
| Wireless Communication module | Wi-Fi 7 (Realtek® RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4 (suppports LE Audio) |
|
| RAID | AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
|
| Others | ||
| Special Features | Asynchronous Clock ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - TUF GAMING CPU-Z - ASUS GlideX - TurboV Core - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) DTS Audio Processing Adobe Creative Cloud (Free Trial)** UEFI BIOS Integrated WiFi Driver Support AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

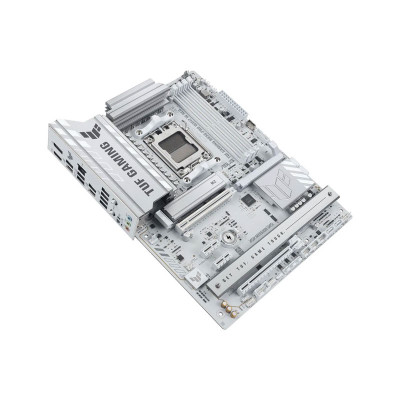

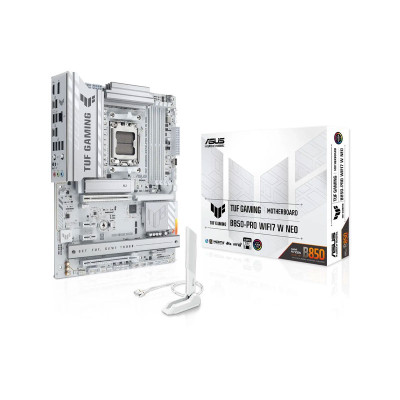

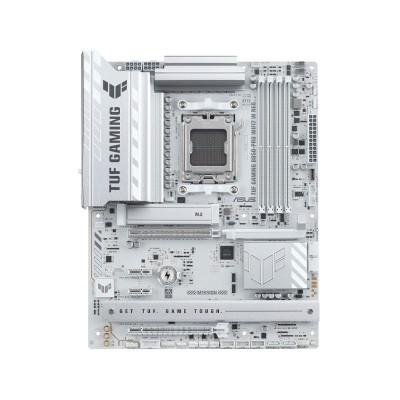

The ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD ATX Motherboard is designed for gamers and PC builders who demand durability, performance, and next-generation connectivity. Built on the powerful AMD B850 chipset and compatible with the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this motherboard delivers exceptional gaming performance, ultra-fast DDR5 memory support, and advanced networking with Wi-Fi 7. With its robust TUF-grade components, enhanced cooling solutions, and AI-powered optimization features, the ASUS TUF GAMING B850-PRO WIFI7 W NEO is a reliable foundation for building a powerful AMD gaming PC.
The ASUS TUF GAMING B850-PRO WIFI7 W NEO motherboard is built around the AMD AM5 platform, supporting the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Powered by the AMD B850 chipset, this motherboard offers efficient power delivery, advanced connectivity, and excellent system stability for gaming, streaming, and multitasking workloads. The TUF DIGI+ VRM design with DrMOS power stages ensures stable CPU power delivery, allowing the system to handle demanding tasks and overclocking while maintaining long-term reliability.
This ATX motherboard supports next-generation DDR5 memory technology with four DIMM slots supporting up to 256GB of RAM. Depending on the processor generation, the ASUS TUF GAMING B850-PRO WIFI7 W NEO supports memory speeds up to 8400+ MT/s with Ryzen 9000 processors and even higher speeds when overclocked. Advanced features such as AMD EXPO memory profiles and ASUS Enhanced Memory Profile (AEMP) make it easier for users to achieve optimal memory performance. The dual-channel memory architecture improves system responsiveness, allowing faster multitasking and smoother gaming experiences.
The motherboard offers excellent storage flexibility with three M.2 slots and four SATA 6Gb/s ports, allowing users to build high-speed storage configurations. M.2 NVMe SSD support ensures faster data transfer rates, improved system boot times, and quicker game loading speeds. Integrated M.2 heatsinks help maintain optimal SSD temperatures during heavy workloads, ensuring consistent performance and improved storage reliability.
Connectivity is one of the major highlights of the ASUS TUF GAMING B850-PRO WIFI7 W NEO motherboard. It features next-generation Wi-Fi 7 technology powered by the Realtek RTL8922AE wireless module, delivering faster wireless speeds, reduced latency, and improved network efficiency. Support for 2.4GHz, 5GHz, and 6GHz frequency bands ensures stable and high-speed wireless connectivity. For wired networking, the motherboard includes a Realtek 2.5Gb Ethernet port with TUF LANGuard protection, providing faster and more stable internet connectivity for gaming, streaming, and large data transfers.
The ASUS TUF GAMING B850-PRO WIFI7 W NEO offers a wide range of connectivity options to support modern gaming setups and peripherals. The rear I/O panel includes multiple USB 10Gbps ports, USB Type-C ports, and USB 5Gbps connections for fast data transfer and device compatibility. The motherboard also includes HDMI and DisplayPort outputs, allowing users to connect high-resolution monitors directly when using processors with integrated graphics.
For immersive gaming and entertainment, the motherboard features Realtek ALC1220P 7.1-channel high-definition audio. With 120dB signal-to-noise ratio playback and advanced audio shielding, the system delivers clear, detailed sound output for gaming, music, and movies. Dedicated audio PCB layers, premium capacitors, and a built-in headphone amplifier further enhance sound quality, providing an immersive audio experience for gamers and content creators.
The ASUS TUF GAMING B850-PRO WIFI7 W NEO motherboard is designed with durability and thermal efficiency in mind. Large VRM heatsinks and dedicated M.2 heatsinks ensure effective heat dissipation, allowing the system to maintain stable performance during long gaming sessions. Multiple fan headers including CPU fan, AIO pump, and chassis fan connectors allow users to create advanced cooling configurations for both air-cooled and liquid-cooled systems.
This motherboard features ASUS TUF Protection technologies that ensure long-term reliability and component protection. These include ESD Guards, SafeSlot reinforced PCIe slots, overvoltage protection, and stainless-steel back I/O shielding for enhanced durability. ASUS Q-Design and EZ DIY features such as PCIe Slot Q-Release, M.2 Q-Latch, Q-LED diagnostics, BIOS FlashBack, and a pre-mounted I/O shield simplify the PC building process, making installation easier for beginners and experienced builders alike.
The ASUS TUF GAMING B850-PRO WIFI7 W NEO motherboard comes with a powerful suite of ASUS software tools designed to optimize system performance and customization. Armoury Crate allows users to manage system monitoring, cooling profiles, and RGB lighting from a single interface. Additional tools such as Aura Sync, Aura Creator, Fan Xpert 4 with AI Cooling II, GameFirst networking optimization, and ASUS AI Advisor provide users with intelligent system control and improved gaming performance.
Potaka IT is a trusted source for genuine PC components, gaming hardware, and high-performance motherboards in Bangladesh. When you purchase the ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD ATX Motherboard from Potaka IT, you receive an authentic ASUS product with official warranty support and competitive pricing. Potaka IT focuses on delivering reliable technology products, expert guidance for PC builders, and excellent customer service. Whether you are building a new AMD gaming PC or upgrading your current system, Potaka IT ensures you get high-quality components and dependable support for your setup.
The latest price of ASUS TUF GAMING B850-PRO WIFI7 W NEO Motherboard in Bangladesh is 0৳. You can buy the ASUS TUF GAMING B850-PRO WIFI7 W NEO Motherboard at best price from our website or visit any of our showrooms.
