| Basic Information | ||
| Supported CPU | Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z890 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 4.0 x1 slots |
|
| M.2 Socket | Total Supports 4 x M.2 slots Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM slots |
|
| Supported Memory | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | Back Panel I/O Ports 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
|
| Display Port (s) | 1 x DisplayPort 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output |
|
| USB (s) | Rear USB (Total 8 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet TUF LANGuard |
|
| Supported Storage | Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
|
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

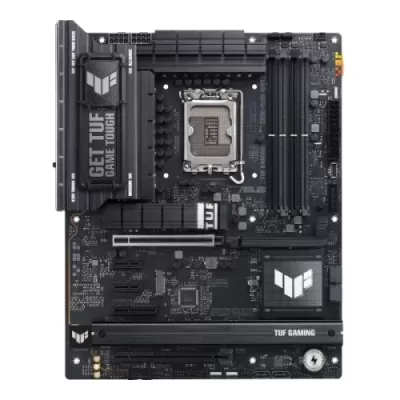

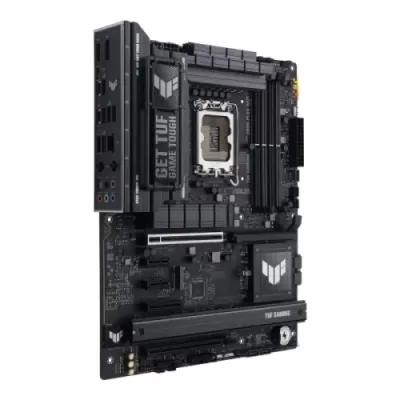

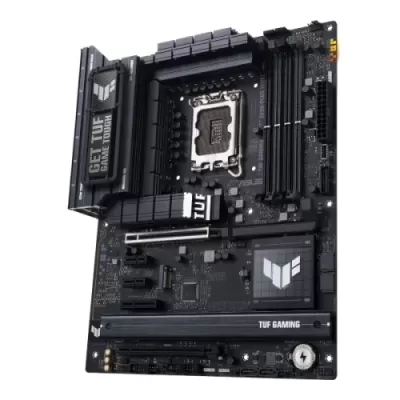

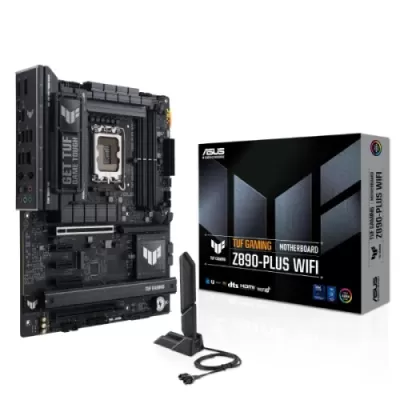

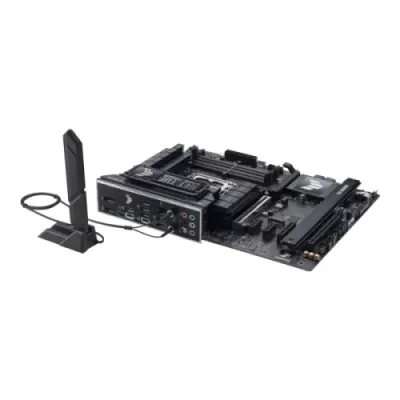

The ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard is designed for powerful Intel Core Ultra Series 2 desktop PCs, combining the Intel Z890 chipset, high-speed DDR5 memory, PCIe 5.0 graphics support, advanced storage connectivity and next-generation wireless networking. With four M.2 slots, Wi-Fi 7, Bluetooth 5.4 and Thunderbolt 4 connectivity, this ASUS TUF Gaming motherboard is an excellent choice for gaming, professional content creation, multitasking and high-performance desktop builds. If you are planning to upgrade your PC, explore motherboards available at Potaka IT to compare compatible platforms and features.
Built around the LGA1851 socket, the ASUS TUF GAMING Z890-PLUS WIFI supports Intel Core Ultra processors (Series 2). Its ATX design offers room for a dedicated graphics card, multiple NVMe SSDs, additional expansion cards and a flexible cooling setup. For buyers in Bangladesh looking for an ASUS Z890 motherboard with modern connectivity, DDR5 support and practical upgrade options, this model provides a well-rounded foundation for a premium desktop PC.
The Intel Z890 chipset and LGA1851 socket make this motherboard compatible with supported Intel Core Ultra Series 2 desktop processors. It also supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 where supported by the installed CPU. This platform is suitable for demanding applications, modern PC gaming, software development and intensive multitasking. Before purchasing, check the official CPU support list and BIOS requirements for your exact processor.
The motherboard includes four DDR5 DIMM slots and supports up to 256GB of system memory. ASUS lists memory speeds of up to 9066+ MT/s through overclocking, depending on the processor, memory kit and system configuration. Dual-channel memory architecture, Intel XMP support and ASUS Enhanced Memory Profile III help users configure compatible memory kits more conveniently.
Whether you are building a gaming computer, working with large creative projects or running multiple development tools, the flexible memory configuration provides room to expand. The advertised maximum memory speed is an overclocked specification, not a guaranteed operating speed for every processor and memory combination.
The primary PCIe 5.0 x16 slot provides a modern interface for a compatible dedicated graphics card. Additional PCIe 4.0 expansion slots support compatible add-in cards, giving users flexibility when configuring their desktop system.
This makes the ASUS TUF GAMING Z890-PLUS WIFI a suitable foundation for gaming PCs, GPU-accelerated creative workloads and workstation-style configurations. Actual graphics performance depends on the installed GPU, processor, cooling solution and power supply.
With four M.2 slots and four SATA 6Gb/s ports, this ASUS Z890 motherboard offers extensive storage expansion. The primary M.2 slot supports PCIe 5.0 x4, while three additional M.2 slots provide PCIe 4.0 connectivity, with the fourth slot also supporting compatible SATA-mode M.2 drives.
This configuration allows you to install a fast operating-system SSD, additional game drives and separate storage for project files without relying exclusively on external drives. Dedicated M.2 heatsinks help manage SSD temperatures, although actual temperatures depend on the drive, workload, airflow and ambient conditions.
The integrated Wi-Fi 7 wireless networking, Bluetooth 5.4 and Intel 2.5Gb Ethernet provide several options for connecting your PC. Wi-Fi 7 supports compatible 2.4GHz, 5GHz and 6GHz networks, while the wired Ethernet connection is useful for stable networking in gaming, large file transfers and professional environments.
Wi-Fi performance depends on your router, network configuration, local regulations and operating-system support. Full Wi-Fi 7 functionality on Windows 11 requires a supported version and appropriate drivers; ASUS specifies Windows 11 24H2 or later for full Wi-Fi 7 functionality.

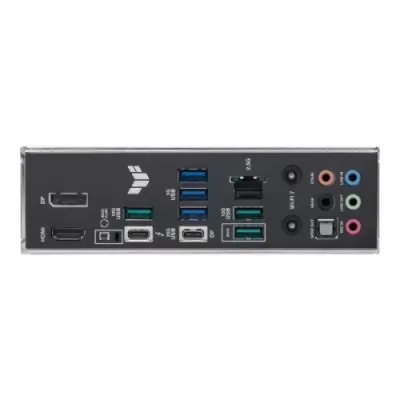

The rear I/O includes a Thunderbolt 4 USB Type-C port, a USB 20Gbps Type-C port and multiple USB Type-A connections. Thunderbolt 4 can support compatible high-speed peripherals, storage devices and display connections. Internal headers also allow compatible PC cases to provide additional front-panel USB ports.
This connectivity is useful for creators who transfer large files, users connecting multiple peripherals and professionals who need a versatile desktop workstation. Check the supported functions and specifications of your connected device before choosing a cable or accessory.
The Realtek ALC1220P audio codec supports 7.1-channel surround sound and includes audio shielding, premium audio capacitors, an integrated amplifier and optical S/PDIF output. These features provide flexible audio connectivity for compatible headphones, speakers and home entertainment setups.
The codec supports playback up to 32-bit/192kHz under supported configurations, but this maximum is not available for 7.1-channel surround sound because of HDA bandwidth limitations.
| Feature | Benefit |
|---|---|
| Intel Z890 chipset and LGA1851 socket | Supports compatible Intel Core Ultra Series 2 desktop processors. |
| Four DDR5 memory slots | Supports up to 256GB of memory for demanding applications and multitasking. |
| PCIe 5.0 x16 slot | Provides a modern interface for a compatible dedicated graphics card. |
| Four M.2 slots | Allows multiple compatible SSDs, including a PCIe 5.0 x4 drive in the primary slot. |
| Wi-Fi 7 and Bluetooth 5.4 | Offers modern wireless networking and Bluetooth device connectivity. |
| Intel 2.5Gb Ethernet | Supports high-speed wired networking with compatible network equipment. |
| Thunderbolt 4 | Supports compatible high-speed peripherals and display connectivity. |
| ASUS TUF protection features | Includes protective design features, reinforced SafeSlot and ESD protection. |
| ASUS Q-Design and BIOS FlashBack | Provides convenient installation features, diagnostic indicators and BIOS recovery or updating support. |
| Addressable RGB Gen 2 headers | Allows compatible lighting accessories to be integrated with Aura Sync. |
Gamers planning a new Intel Core Ultra Series 2 desktop can use this motherboard with a compatible dedicated GPU, DDR5 memory and NVMe storage. The PCIe 5.0 graphics slot, high-speed networking and multiple storage options make it suitable for a feature-rich gaming configuration. Actual gaming performance will depend primarily on the processor, graphics card, memory configuration and game requirements.
Video editors, designers and other creative professionals can benefit from the available memory capacity, multiple SSD slots and fast external connectivity. Separate drives can be used for applications, active projects and media libraries, while compatible Thunderbolt peripherals can simplify a creator's workspace.
Developers working with integrated development environments, virtual machines, local development servers and large projects can build a flexible desktop around this motherboard. The available memory capacity and storage expansion options make it possible to configure the system around demanding workloads and future software requirements.
The combination of wired and wireless networking, multiple expansion slots, modern USB connectivity and onboard audio makes this board suitable for a versatile workstation. It can accommodate compatible expansion cards and storage devices as your requirements change, provided the case, power supply and other components support the chosen configuration.
This motherboard uses the LGA1851 socket and supports Intel Core Ultra Series 2 desktop processors listed by ASUS. It is not compatible with older Intel CPU families that use different sockets. Verify processor support and any required BIOS version before buying a CPU.
If you are comparing processors for your build, browse compatible options in the Intel processor category and confirm the exact CPU generation and socket requirements.
Use DDR5 desktop memory rather than DDR4. Although the motherboard supports up to 256GB and advertises overclocked speeds up to 9066+ MT/s, memory compatibility varies with the CPU, number of modules and memory kit. Consult the motherboard's memory QVL and CPU support documentation when selecting high-speed RAM.
Consider a compatible PCIe 5.0 NVMe SSD for the primary M.2 slot if you need very high storage bandwidth. PCIe 4.0 SSDs remain a practical choice for game libraries, everyday applications and general productivity. Confirm drive dimensions, interface compatibility and cooling requirements before installation. You can compare storage options in the SSD and storage category.
The motherboard measures 30.5 × 24.4 cm and uses the standard ATX form factor. Choose a case that supports ATX motherboards and provides sufficient clearance for your graphics card, CPU cooler, radiator and storage devices. The power supply must also provide the required CPU and GPU power connectors and adequate capacity for the complete system.
For a compatible desktop build, explore available PC casing options and check their motherboard support, cooling layout and component clearance before purchasing.
ASUS lists Windows 11 support for this motherboard. For full Wi-Fi 7 functionality, Windows 11 24H2 or later and appropriate drivers are required. The availability of the 6GHz Wi-Fi band also depends on local regulations and compatible networking equipment.
| Name | Details |
|---|---|
| Model | TUF GAMING Z890-PLUS WIFI |
| Supported CPU | Intel Core Ultra Processors (Series 2), LGA1851 |
| CPU Technologies | Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, where supported |
| Chipset | Intel Z890 |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4 cm (12 × 9.6 inches) |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 256GB |
| Maximum Advertised Memory Speed | Up to 9066+ MT/s (OC), subject to configuration |
| Memory Architecture | Dual-channel |
| Memory Features | Intel XMP, ASUS AEMP III, DIMM Fit, compatible non-ECC unbuffered memory and CUDIMM support |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 |
| Additional Expansion Slots | 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 4.0 x4, 2 × PCIe 4.0 x1 |
| M.2 Slots | 4 × M.2 Key M |
| M.2_1 | 2242/2260/2280, PCIe 5.0 x4 |
| M.2_2 | 2280, PCIe 4.0 x4 |
| M.2_3 | 2280/22110, PCIe 4.0 x4 |
| M.2_4 | 2242/2260/2280, PCIe 4.0 x4 and SATA modes |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10; CPU-connected M.2 RAID support depends on the supported configuration |
| Graphics Outputs | 1 × DisplayPort, 1 × HDMI, 1 × Thunderbolt 4 Type-C with display output, 1 × USB 20Gbps Type-C with DisplayPort output |
| HDMI | HDMI 2.1, up to 4K at 60Hz |
| DisplayPort | DisplayPort 1.4, up to 4K at 60Hz |
| Thunderbolt | 1 × Thunderbolt 4 USB Type-C |
| Rear USB Ports | 1 × Thunderbolt 4 Type-C, 1 × USB 20Gbps Type-C, 3 × USB 10Gbps Type-A, 3 × USB 5Gbps Type-A |
| Front USB Connectivity | 1 × USB 20Gbps Type-C connector, 1 × USB 5Gbps header for 2 ports, 2 × USB 2.0 headers for 4 ports |
| Ethernet | Intel 2.5Gb Ethernet with TUF LANGuard |
| Wireless Connectivity | Wi-Fi 7 (802.11be), 2×2, 2.4GHz/5GHz/6GHz bands |
| Wi-Fi Bandwidth | Supports 160MHz bandwidth; advertised transfer rate up to 2.9Gbps |
| Bluetooth | Bluetooth 5.4 |
| Audio Codec | Realtek ALC1220P 7.1-channel High Definition Audio |
| Audio Features | Audio shielding, integrated amplifier, premium capacitors, optical S/PDIF, up to 32-bit/192kHz playback under supported configurations |
| Cooling Headers | 1 × CPU fan, 1 × CPU OPT fan, 1 × AIO pump, 4 × chassis fan |
| Power Connectors | 1 × 24-pin main power, 2 × 8-pin +12V CPU power |
| RGB Headers | 3 × Addressable RGB Gen 2 |
| Protection Features | DIGI+ VRM with DrMOS, ESD Guards, TUF LANGuard, overvoltage protection, SafeSlot, stainless-steel rear I/O |
| Thermal Features | M.2 heatsink, M.2 heatsink backplate, VRM heatsinks |
| Convenience Features | BIOS FlashBack, Q-LED, Q-DIMM, M.2 Q-Latch, Q-Release, Q-Slide, pre-mounted I/O shield |
| RGB Software | Aura Sync, Aura Creator |
| Bundled Software | Armoury Crate, Fan Xpert 4 with AI Cooling II, ASUS DriverHub, ASUS GlideX, TurboV Core, TUF GAMING CPU-Z and other listed ASUS software; trial software is subject to its terms |
| Operating System | Windows 11; full Wi-Fi 7 functionality requires Windows 11 24H2 or later |
| Accessories | 2 × SATA cables, Wi-Fi Q-Antenna, M.2 accessories, M.2 screw package, TUF GAMING sticker, removable nameplate and quick-start guide |
| Manufacturing Warranty | 3 Years, subject to local warranty terms |
This motherboard supports compatible Intel Core Ultra Series 2 desktop processors using the LGA1851 socket. Check ASUS's CPU support list for the exact processor model and BIOS requirements before purchasing.
No. This motherboard supports DDR5 desktop memory and has four DIMM slots. DDR4 memory is not compatible with its DDR5 slots.
The motherboard supports up to 256GB of DDR5 memory across four DIMM slots. Supported memory speeds depend on the processor, installed modules and configuration.
You can install up to four compatible M.2 drives. The primary M.2 slot supports PCIe 5.0 x4, while the other slots provide PCIe 4.0 connectivity with the specified drive and interface compatibility.
Yes. It includes Wi-Fi 7 and Bluetooth 5.4. Full Wi-Fi 7 functionality requires compatible networking equipment, supported software and appropriate drivers.
Yes. It includes one rear Thunderbolt 4 USB Type-C port and an internal Thunderbolt header. Compatible devices and the appropriate supporting hardware are required for their respective functions.
Yes. The motherboard provides a PCIe 5.0 x16 slot for a compatible graphics card. Check GPU dimensions, power requirements, case clearance and power-supply capacity before installation.
Yes. It includes one HDMI 2.1 port and one DisplayPort 1.4 output, along with display-output capabilities through the specified USB Type-C connections. Display output from the motherboard depends on the installed processor's graphics capabilities.
Yes. Its processor support, DDR5 memory capacity, PCIe 5.0 graphics slot and multiple M.2 storage connections make it suitable for gaming and video-editing builds. Overall performance depends on the complete system configuration.
It uses the ATX form factor and measures 30.5 × 24.4 cm. Choose a PC case that explicitly supports ATX motherboards and provides enough clearance for your CPU cooler, graphics card, storage and cooling equipment.
The supplied product information lists a three-year manufacturing warranty. Confirm the warranty provider, coverage conditions and service arrangements in Bangladesh with the seller before purchasing.
If you are planning a high-performance Intel desktop, the ASUS TUF GAMING Z890-PLUS WIFI offers a combination of DDR5 memory support, PCIe 5.0 graphics connectivity, four M.2 slots, Wi-Fi 7 and Thunderbolt 4. Its ATX layout and expansion options make it suitable for gaming PCs, creative workstations and productivity-focused desktop builds.
Before making your purchase, confirm processor compatibility, memory requirements, storage interfaces, case clearance and power-supply connections. Check the current ASUS TUF GAMING Z890-PLUS WIFI motherboard price in Bangladesh, stock availability and warranty terms with Potaka IT to ensure the board matches your planned configuration.
