| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z790 Chipset | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | 3 x audio jacks | |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

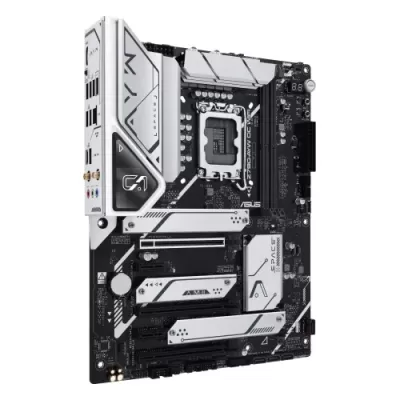

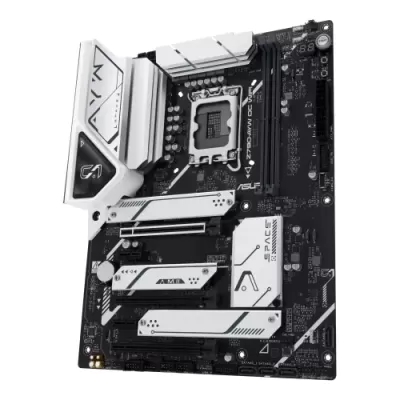

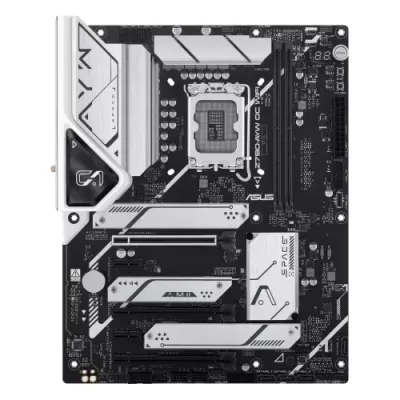

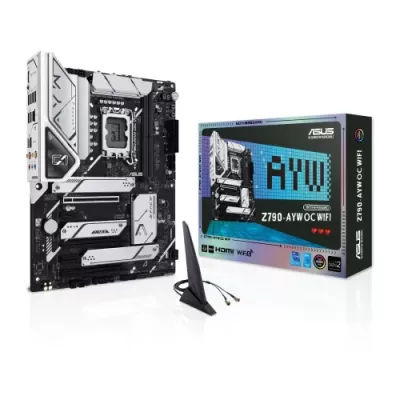

The ASUS Z790-AYW OC WIFI motherboard uses the Intel Z790 chipset and LGA1700 socket. It supports compatible Intel Core 14th, 13th, and 12th Gen desktop processors, along with supported Pentium Gold and Celeron models. This compatibility gives builders several processor options, whether they are assembling a gaming PC, a development workstation, or a versatile everyday desktop.
Before purchasing a processor, check the official CPU support list and the motherboard BIOS requirements. Processor compatibility, supported features, and performance depend on the exact CPU model and system configuration.
With two DDR5 DIMM slots and a maximum supported capacity of 96GB, this motherboard supports fast memory configurations for demanding applications. Its dual-channel memory architecture, Intel Extreme Memory Profile (XMP) support, and ASUS OptiMem II design help users configure compatible memory for their intended workload.
Supported memory speeds range from DDR5-4800 to 8200+ MT/s through overclocking, depending on the processor and installed memory modules. The two-slot layout is particularly relevant when choosing a matched memory kit, so check the motherboard's memory compatibility list before buying.
The ASUS Z790-AYW OC WIFI includes one PCIe 4.0 x16 slot connected to the processor, two additional PCIe 4.0 x16-length slots operating at up to x4 mode, and two PCIe 4.0 x1 slots. This configuration supports compatible graphics cards and other expansion devices.
Whether you are building a gaming desktop or a workstation for design and productivity, verify the graphics card's physical dimensions, power requirements, and interface compatibility with the rest of your system.
Storage flexibility is one of the useful features of this ASUS motherboard. It provides three M.2 Key M slots and four SATA 6Gb/s connections, allowing a compatible system to combine high-speed SSD storage with additional SATA drives.
The M.2 slots support compatible PCIe 4.0 x4 SSDs, while the third M.2 slot also supports SATA-mode M.2 storage. Supported drive lengths vary by slot. For a new build, you can compare available SSD and storage options based on capacity, interface, and intended use.
The built-in Wi-Fi 6 wireless connectivity supports 2.4GHz and 5GHz bands, helping reduce the need for a separate wireless network adapter. Bluetooth 5.3 support provides connectivity for compatible peripherals, while the Realtek 2.5Gb Ethernet port offers a wired networking option for fast local network transfers and compatible internet connections.
Actual wireless speeds and network performance depend on the router, network equipment, signal conditions, internet service, and connected devices. Bluetooth specifications may also vary with the installed wireless module.

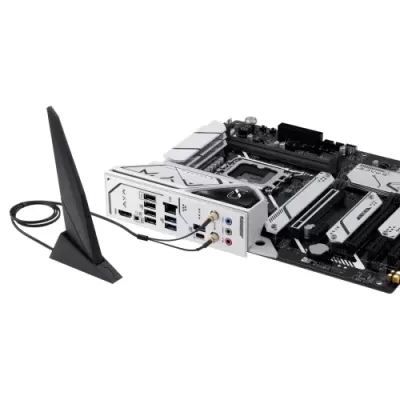

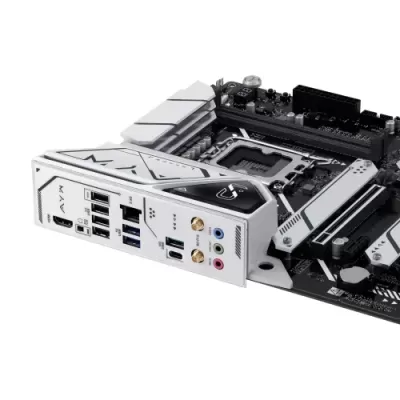

The rear I/O panel includes eight USB ports: one USB Type-C and one Type-A port supporting 10Gbps, two USB Type-A ports supporting 5Gbps, and four USB 2.0 Type-A ports. Internal headers provide additional connectivity for compatible front-panel USB ports, including USB Type-C.
This arrangement is useful for connecting keyboards, mice, external storage, headsets, and other everyday peripherals. The number of usable front-panel ports depends on the case and its connector configuration.
ASUS includes VRM and M.2 heatsinks, a dedicated AIO pump header, CPU and CPU OPT fan headers, and three chassis fan headers. These features help builders connect compatible cooling hardware and manage airflow throughout the case.
The motherboard also incorporates ASUS 5X Protection III, DIGI+ VRM digital power design with DrMOS, SafeSlot Core+, ASUS Q-Design features, M.2 Q-Latch, and a pre-mounted I/O shield. The BIOS FlashBack button offers a convenient BIOS update method when used according to ASUS instructions and the requirements for the installed hardware.
The onboard Start, Clear CMOS, and Reset buttons provide convenient controls for supported setup and troubleshooting tasks. Addressable Gen 2 RGB headers enable compatible lighting accessories to be connected for customization through supported ASUS software.
These features can be particularly useful for DIY PC builders who want easier access to selected motherboard controls and a coordinated lighting setup. RGB lighting devices, connectors, and software must be compatible with the motherboard.
For a gaming desktop, the motherboard provides a platform for a compatible Intel processor, DDR5 memory, and a dedicated graphics card. The PCIe x16 slot supports compatible graphics hardware, while M.2 storage can help reduce game loading times when paired with a suitable SSD. Gaming performance depends primarily on the processor, graphics card, memory configuration, cooling, and the games being played.
Video editing, graphic design, software development, and multitasking workloads can benefit from a compatible multi-core processor, adequate memory, and fast storage. The three M.2 slots and four SATA ports offer options for separating applications, project files, and general storage, subject to drive compatibility and system requirements.
For programming, web development, virtual machines, and other technical workflows, this motherboard offers processor flexibility, high-speed DDR5 memory support, and multiple storage connections. A suitable CPU and memory configuration should be selected according to the requirements of the development tools and workloads you intend to run.
The integrated networking options, multiple USB connections, and support for compatible Intel processors make this motherboard suitable for a wide range of desktop configurations. Note that the HDMI port provides display output only when the installed processor supports integrated graphics; a compatible dedicated graphics card may be required otherwise.
Confirm that your selected Intel processor is listed as supported by ASUS. If the processor requires a particular BIOS version, follow the manufacturer's update instructions before completing the build.
The board has two memory slots and supports up to 96GB of DDR5 memory. Select a compatible kit based on your application requirements, capacity needs, and supported memory speeds. Higher advertised speeds require suitable hardware settings and may involve memory overclocking.
Check the M.2 drive length, interface, and supported mode before installing an SSD. PCIe 4.0 x4 drives and SATA-mode M.2 drives are not interchangeable in every slot. If you intend to install several drives, review the motherboard manual for any relevant installation or resource-sharing restrictions.
This is a standard ATX motherboard measuring 30.5 × 24.4cm. Make sure your case supports ATX boards and has adequate clearance for your graphics card and CPU cooler. Select a power supply that meets the combined power requirements of your processor, graphics card, and other components.
Review the available USB ports, network connections, fan headers, and internal connectors against your planned setup. If you intend to use an AIO liquid cooler, several case fans, or addressable RGB lighting, confirm that the relevant connectors and accessories are compatible.
If you are comparing the ASUS Z790-AYW OC WIFI motherboard price in Bangladesh, consider the chipset, DDR5 compatibility, memory capacity, M.2 expansion, networking, and warranty coverage alongside the selling price. The best choice depends on your processor, intended workload, and future upgrade requirements.
For a compatible Intel desktop build, compare this model with other motherboards and available PC components to ensure that your processor, memory, graphics card, storage, and case work together.
For current product pricing, stock status, and applicable warranty terms, visit Potaka IT. Confirm the listed price and availability before purchasing, as these details can change.
| Name | Details |
|---|---|
| Brand | ASUS |
| Model | Z790-AYW OC WIFI |
| Product Type | Desktop motherboard |
| Chipset | Intel Z790 |
| CPU Socket | Intel LGA1700 |
| Supported Processors | Compatible Intel Core 14th, 13th, and 12th Gen; supported Pentium Gold and Celeron processors |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4cm (12 × 9.6 inches) |
| Memory Type | DDR5, non-ECC, unbuffered |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 96GB |
| Memory Speed | Up to 8200+ MT/s (OC), depending on CPU and memory configuration |
| Memory Architecture | Dual-channel; Intel XMP; ASUS OptiMem II |
| Primary Expansion Slot | 1 × PCIe 4.0 x16 |
| Additional Expansion Slots | 2 × PCIe 4.0 x16-length slots supporting x4 mode; 2 × PCIe 4.0 x1 |
| M.2 Storage | 3 × M.2 Key M; PCIe 4.0 x4 support; third slot also supports SATA mode |
| SATA Storage | 4 × SATA 6Gb/s |
| RAID Support | PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10 through Intel Rapid Storage Technology |
| Graphics Output | 1 × HDMI 2.1, up to 4K at 60Hz with a compatible CPU |
| Wireless Network | Wi-Fi 6 (802.11ax), 2.4GHz and 5GHz |
| Bluetooth | Bluetooth 5.3 specification; module-dependent |
| Ethernet | Realtek 2.5Gb Ethernet; ASUS LANGuard |
| Rear USB | 2 × USB 10Gbps (1 Type-A, 1 Type-C); 2 × USB 5Gbps Type-A; 4 × USB 2.0 Type-A |
| Front USB Headers | 1 × USB 10Gbps Type-C; 2 × USB 5Gbps headers; 2 × USB 2.0 headers |
| Audio | Realtek 7.1-channel HD Audio CODEC; up to 24-bit/192kHz playback |
| Fan and Pump Headers | 1 × CPU fan, 1 × CPU OPT, 1 × AIO pump, 3 × chassis fan |
| Power Connectors | 1 × 24-pin main power; 1 × 8-pin CPU power; 1 × 4-pin CPU power |
| RGB Headers | 3 × Addressable Gen 2 headers |
| BIOS Feature | BIOS FlashBack; UEFI AMI BIOS; 192Mb Flash ROM |
| Special Features | ASUS 5X Protection III, DIGI+ VRM with DrMOS, SafeSlot Core+, M.2 and VRM heatsinks, Q-Design, Aura Sync support |
| Operating System Support | Windows 11 64-bit and Windows 10 64-bit, subject to current driver support |
| Warranty | 3 years, according to the supplied product information; confirm local coverage with the seller |
It supports compatible Intel Core 14th, 13th, and 12th Gen desktop processors using the LGA1700 socket, as well as supported Pentium Gold and Celeron processors. Check the official CPU support list and BIOS requirements for your exact model.
The motherboard supports up to 96GB of DDR5 memory across two DIMM slots. Compatible memory speeds can reach 8200+ MT/s through overclocking, depending on the processor and memory configuration.
No. This motherboard is designed for DDR5 memory. DDR4 modules are physically and electrically different, so choose compatible DDR5 desktop memory.
The motherboard has three M.2 Key M slots and four SATA 6Gb/s ports. The M.2 slots support compatible PCIe 4.0 x4 storage, while the third M.2 slot also supports SATA-mode drives.
Yes. It includes Wi-Fi 6 wireless networking and Bluetooth connectivity specified as version 5.3, with the Bluetooth version dependent on the installed wireless module.
Yes. It has one HDMI 2.1 port supporting up to 4K at 60Hz. Display output requires a compatible processor with integrated graphics.
Yes. It can serve as the foundation of a gaming PC with a compatible Intel processor, DDR5 memory, and a suitable graphics card. Actual gaming performance depends on the selected components and game requirements.
The listed expansion and M.2 storage interfaces on this model are PCIe 4.0. Do not assume PCIe 5.0 connectivity; check the official specification sheet when selecting expansion cards and storage devices.
The supplied product information lists a three-year manufacturing warranty. Confirm the warranty provider, coverage conditions, and local service eligibility with the seller before purchasing.
Visit Potaka IT to check the current listing, availability, and applicable warranty terms. Pricing and stock may change over time.
The latest price of ASUS Z790-AYW OC WIFI Motherboard in Bangladesh is 39,500৳. You can buy the ASUS Z790-AYW OC WIFI Motherboard at best price from our website or visit any of our showrooms.
