| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors(Series 2) | |
| Chipset | Intel Z890 Chipset | |
| BIOS | 256(128+128) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel® Core™ Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 2 x PCIe 4.0 x16 slots (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |
|
| M.2 Socket | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2) * M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | Supports up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output * Graphics specifications may vary between CPU types |
|
| Connector & Ports | ||
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
|
| Display Port (s) | 1 x DisplayPort 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output |
|

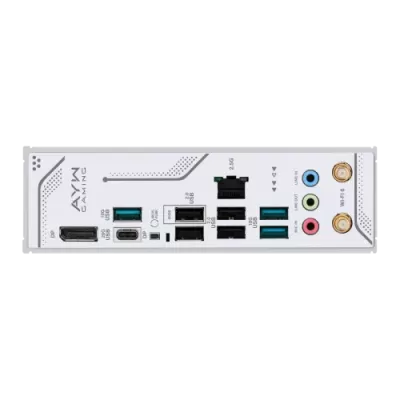

| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge )** 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
|
| Audio | 1 x Front Panel Audio header (F_AUDIO) | |
| Wireless Communication module | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 * The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A - Compatible with PD3.0 and PPS |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost (Intel K-series Processors only) |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year Warranty | |

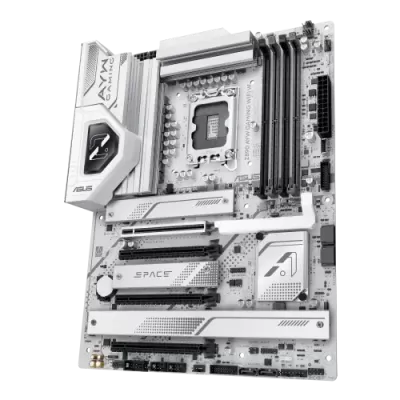

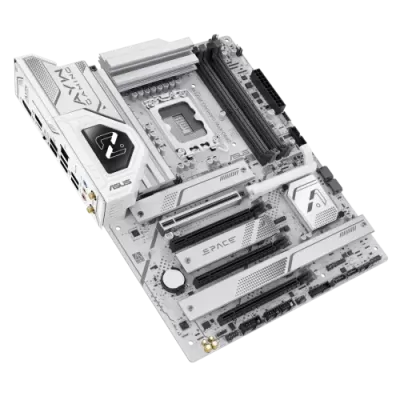

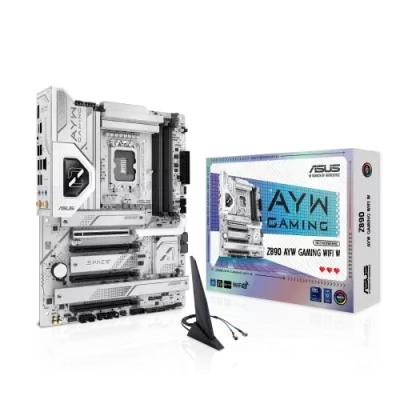

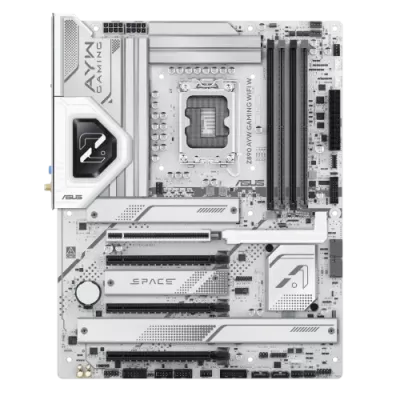

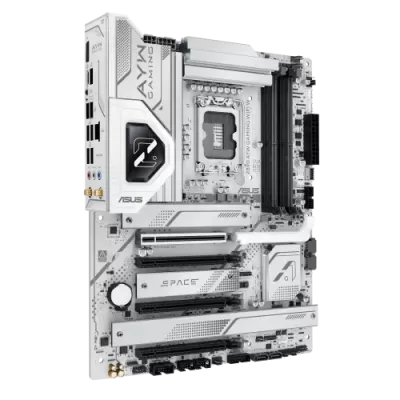

The ASUS Z890 AYW GAMING WIFI W is an ATX motherboard featuring the Intel Z890 chipset and an LGA 1851 socket for compatible Intel Core Ultra Processors (Series 2). It supports up to 256GB of DDR5 memory, memory overclocking up to 9066+ MT/s under supported configurations, one PCIe 5.0 x16 graphics slot, and four M.2 slots for fast SSD storage. Integrated Wi-Fi 6, Bluetooth 5.3, and 2.5Gb Ethernet provide versatile networking options, while ASUS BIOS FlashBack, Q-Design, and dedicated heatsinks help simplify assembly and system maintenance.
The Intel Z890 chipset provides the platform for building a modern desktop around compatible Intel Core Ultra Processors (Series 2). The LGA 1851 socket is designed for this processor family, so buyers should check the exact CPU model and motherboard BIOS requirements before purchasing.
The motherboard's power delivery design uses 12+1+2+1 power stages rated at 80A each, along with enlarged VRM heatsinks. This design supports stable power delivery and thermal management during demanding workloads when paired with suitable cooling, a compatible processor, and an adequately rated power supply.
If you are selecting a processor for this platform, compare compatible options in the Intel processor collection and verify compatibility with ASUS's official CPU support list.
Yes. This motherboard is suitable for building a gaming PC with a compatible Intel Core Ultra processor, a dedicated graphics card, DDR5 memory, and fast SSD storage. Its PCIe 5.0 x16 graphics slot supports compatible GPUs, while the VRM heatsinks and multiple fan headers help builders configure appropriate cooling.
Actual gaming performance depends primarily on the selected processor, graphics card, memory configuration, storage, cooling, and game settings. The motherboard provides the connectivity and platform features needed for a capable gaming system, but it does not independently determine frame rates.
The ASUS Z890 AYW GAMING WIFI W includes four DDR5 DIMM slots and supports up to 256GB of system memory. Its dual-channel memory architecture, Intel Extreme Memory Profile (XMP) support, and ASUS Enhanced Memory Profile III (AEMP III) help users configure compatible memory kits for their performance requirements.
The advertised 9066+ MT/s figure represents an overclocked memory speed, not a guaranteed operating speed for every processor and RAM kit. Actual results depend on the CPU's memory controller, the memory modules, BIOS settings, and the number of installed DIMMs. Check the motherboard's memory compatibility list before choosing a high-speed kit.
For gaming, programming, virtual machines, creative applications, and heavy multitasking, selecting a balanced and compatible memory configuration is more important than choosing a kit based on its advertised maximum speed alone. You can compare compatible options in the desktop RAM collection.
Storage flexibility is one of the major advantages of this ASUS Z890 motherboard. It provides four M.2 sockets and four SATA 6Gb/s ports, allowing users to combine fast NVMe SSDs with additional SATA storage drives.
A PCIe 5.0 SSD can provide substantially higher theoretical bandwidth than a PCIe 4.0 SSD, although actual performance depends on the drive, workload, cooling, and supported interface. Using an SSD for the operating system and frequently used applications can help reduce loading times, while additional drives provide room for games, project files, media libraries, and backups.
The motherboard also supports Intel Rapid Storage Technology RAID configurations, subject to the supported drive interface and slot configuration. Review the motherboard manual before installing multiple drives or setting up RAID, particularly if the data is important.
Compare compatible options in the SSD and storage collection when planning your system's capacity and performance.
The ASUS Z890 AYW GAMING WIFI W includes one PCIe 5.0 x16 slot for a compatible graphics card, along with additional PCIe 4.0 expansion slots. This arrangement provides room for a modern GPU and other supported expansion devices, depending on their interface and bandwidth requirements.
ASUS SafeSlot reinforcement and PCIe Slot Q-Release improve the practical installation experience for compatible graphics cards. Before assembly, check the GPU's dimensions, power requirements, slot clearance, and compatibility with your chosen PC case.
For gaming, 3D rendering, video editing, and GPU-accelerated applications, choose a graphics card appropriate for your workload and display resolution. The motherboard is the platform that connects these components; the graphics card determines most GPU-related performance.
Integrated networking makes this motherboard suitable for both wired and wireless desktop setups. Wi-Fi 6 supports compatible 2.4GHz and 5GHz wireless networks, while Bluetooth 5.3 provides connectivity for supported wireless peripherals and accessories.
The Realtek 2.5Gb Ethernet controller offers a wired networking option with higher potential throughput than standard Gigabit Ethernet when the rest of the network supports 2.5GbE. Actual network speeds depend on the router or switch, cabling, internet plan, and connected devices.
These networking options are useful for online gaming, large file transfers, remote work, software development, and home offices where stable connectivity matters. Wireless performance and Bluetooth functionality can vary with environmental conditions, antenna placement, and connected hardware.
The ASUS Z890 AYW GAMING WIFI W provides a selection of high-speed USB connections for external storage, peripherals, compatible displays, and other devices. Its rear USB 20Gbps Type-C port supports DisplayPort Alt Mode, while the front-panel USB Type-C header supports up to 30W USB Power Delivery and PPS charging with a compatible case connection and device.
The motherboard also includes a DisplayPort output, four rear USB 2.0 Type-A ports, three rear USB 10Gbps Type-A ports, a Wi-Fi module, 2.5Gb Ethernet, audio connections, and a BIOS FlashBack button. Exact port capabilities should be checked against the official specification and motherboard manual before purchasing accessories.
The DisplayPort outputs use the graphics capabilities of a compatible processor. If you plan to use the motherboard's display outputs rather than a dedicated graphics card, confirm that your chosen CPU supports integrated graphics.
Dedicated VRM and M.2 heatsinks help manage heat around power delivery components and supported SSDs. Appropriate case airflow and a suitable CPU cooler remain important for maintaining reliable temperatures during sustained workloads.
Dedicated CPU fan, CPU optional fan, AIO pump, and chassis fan headers provide flexibility when connecting compatible cooling equipment. ASUS Fan Xpert 4 with AI Cooling II offers software-based fan management, allowing users to tune cooling and noise according to their system configuration.
The Realtek audio codec supports up to 24-bit/192kHz playback and includes audio shielding, premium audio capacitors, and dedicated audio PCB layers. Supported 7.1-channel output requires a compatible chassis front-panel HD audio module and suitable audio equipment.
BIOS FlashBack provides a supported way to update the BIOS using the appropriate USB procedure, which can be helpful during system setup or maintenance. Q-LED indicators help identify potential CPU, memory, graphics, or boot-device initialization issues. Follow the official ASUS instructions for the correct BIOS file and update procedure.
Pair the motherboard with a compatible Intel Core Ultra processor, a suitable dedicated graphics card, DDR5 memory, and a fast NVMe SSD to build a gaming desktop. PCIe 5.0 graphics support and flexible storage expansion provide room for a performance-focused configuration.
Multiple M.2 slots, high-speed USB connectivity, and support for large amounts of DDR5 memory make this motherboard a practical foundation for compatible editing, rendering, and creative workloads. Select the CPU, GPU, RAM capacity, and storage according to the software you use.
Developers can benefit from a modern processor platform, memory expansion, multiple SSDs, and fast networking. Users running virtual machines, local development environments, or supported AI applications should choose sufficient RAM, storage, and processing or graphics resources for their specific workloads.
Wi-Fi 6, Bluetooth, 2.5Gb Ethernet, and multiple USB connections provide flexibility for office peripherals, wireless accessories, external storage, and supported displays. The ATX layout also offers room for compatible expansion cards and additional cooling equipment.
The price of the ASUS Z890 AYW GAMING WIFI W motherboard in Bangladesh can vary with stock availability, import costs, retailer pricing, and warranty terms. Check the current listing at Potaka IT for the latest available price and purchasing information.
When comparing this motherboard with other Intel Z890 models, consider more than the purchase price. Memory capacity, PCIe 5.0 support, M.2 expansion, wireless connectivity, power delivery, cooling features, rear I/O, and warranty coverage all affect the overall value of a build.
It supports compatible Intel Core Ultra Processors (Series 2) using the LGA 1851 socket. Check the official ASUS CPU support list for the exact processor model and BIOS requirements.
The motherboard supports up to 256GB of DDR5 memory across four DIMM slots. Supported speeds and configurations depend on the processor and installed memory modules.
No. This motherboard supports DDR5 memory only. DDR4 modules cannot be installed in its DDR5 DIMM slots.
The motherboard has four M.2 slots. One supports PCIe 5.0 x4, while the others support PCIe 4.0 configurations. The fourth slot also supports compatible SATA-mode M.2 drives.
Yes. It includes one PCIe 5.0 x16 slot for a compatible graphics card. Check the graphics card's dimensions, power requirements, and compatibility with your case and PSU.
Yes. It includes Wi-Fi 6 support for compatible 2.4GHz and 5GHz networks, along with Bluetooth 5.3 according to the published product specifications.
That depends on the processor. The motherboard provides DisplayPort and USB Type-C DisplayPort output, but video output requires a compatible CPU with supported integrated graphics.
It is a suitable platform for compatible gaming and creative systems. Actual performance depends on the processor, graphics card, memory, storage, cooling, and software workload.
The motherboard uses the ATX form factor and measures approximately 30.5 × 24.4 cm. Choose a PC case that explicitly supports ATX motherboards and provides adequate component clearance.
The supplied product information states a three-year manufacturing warranty. Confirm the applicable warranty terms, coverage, and service arrangements with the seller before purchasing.
The ASUS Z890 AYW GAMING WIFI W combines an Intel Z890 platform, LGA 1851 processor compatibility, DDR5 memory expansion, PCIe 5.0 graphics support, four M.2 slots, Wi-Fi 6, Bluetooth 5.3, and 2.5Gb Ethernet in a standard ATX design. Its cooling provisions, USB Type-C connectivity, BIOS FlashBack, and Q-Design features make it a versatile choice for builders planning a modern Intel desktop.
Before purchasing, verify the processor, memory kit, graphics card, SSDs, case, and power supply as a complete configuration. For buyers in Bangladesh, check the current ASUS Z890 AYW GAMING WIFI W motherboard price and warranty details at Potaka IT.
The latest price of ASUS Z890 AYW GAMING WIFI W ATX Motherboard in Bangladesh is 43,200৳. You can buy the ASUS Z890 AYW GAMING WIFI W ATX Motherboard at best price from our website or visit any of our showrooms.
