| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
|
| Chipset | AMD X870E | |
| BIOS | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector. - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
|
| Supported Memory | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
| Maximum Memory | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Connector & Ports | ||
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header |
|

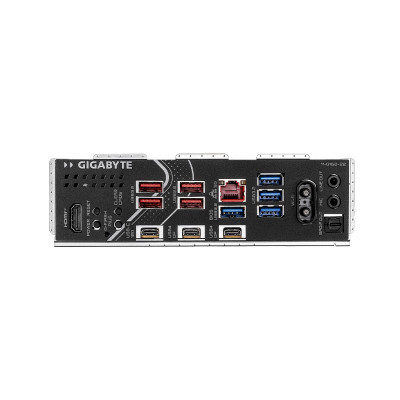

| USB (s) | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 4 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Wireless Communication module | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton® Internet Security (OEM version) | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

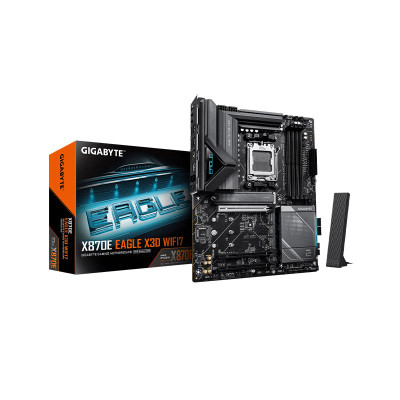

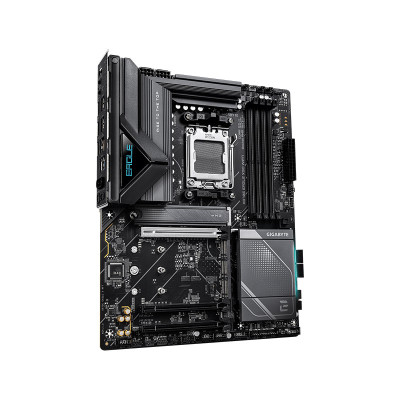

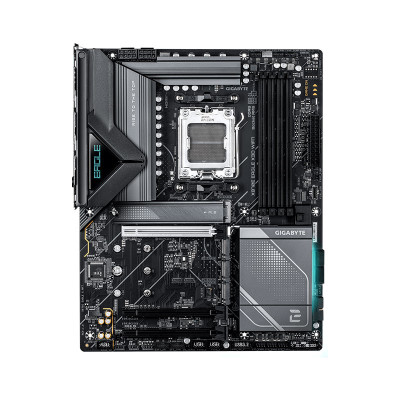

The GIGABYTE X870E EAGLE X3D WIFI-7 DDR5 AMD AM5 ATX Motherboard is a high-performance motherboard built for gamers, creators, and PC enthusiasts who want cutting-edge technology with exceptional stability. Powered by the AMD X870E chipset and designed for the latest AMD Ryzen 9000, 8000, and 7000 Series processors, this motherboard delivers next-generation performance, ultra-fast connectivity, advanced cooling support, and premium expansion capabilities. With DDR5 memory support, PCIe 5.0 compatibility, Wi-Fi 7, and USB4 connectivity, the GIGABYTE X870E EAGLE X3D is an ideal platform for building a powerful modern gaming or productivity PC.
The GIGABYTE X870E EAGLE X3D WIFI-7 motherboard features the AMD AM5 socket and AMD X870E chipset, offering full support for the latest AMD Ryzen processors. Whether you are building a high-end gaming setup or a workstation for heavy multitasking, this motherboard provides reliable performance and future-ready compatibility for demanding applications.
This ATX motherboard supports up to 256GB DDR5 memory with impressive overclocking support reaching up to 9000MT/s (O.C.). The dual-channel DDR5 architecture delivers faster bandwidth, lower latency, and improved system responsiveness for gaming, content creation, video editing, and professional workloads. Support for AMD EXPO and Intel XMP memory profiles allows users to maximize RAM performance with easy optimization.
The GIGABYTE X870E EAGLE X3D motherboard is designed for next-generation hardware with PCIe 5.0 x16 support for modern graphics cards and ultra-fast NVMe SSDs. It includes multiple PCIe slots and four M.2 storage connectors, enabling high-speed storage configurations for faster boot times, rapid file transfers, and smooth gaming experiences. RAID support for NVMe and SATA drives adds additional flexibility for users who require advanced storage performance and data reliability.
Equipped with Qualcomm Wi-Fi 7 technology and Bluetooth 5.4, this motherboard provides lightning-fast wireless connectivity with support for 2.4GHz, 5GHz, and 6GHz frequency bands. The advanced Wi-Fi 7 standard ensures lower latency, improved stability, and faster wireless speeds for gaming and streaming. Additionally, the Realtek 5GbE LAN port offers ultra-fast wired networking performance for competitive gaming, professional workstations, and high-speed internet connectivity.
The motherboard features dual USB4 Type-C ports with DisplayPort support, delivering extremely fast data transfer speeds and support for high-resolution displays up to 4K at 240Hz. Multiple USB 3.2 Gen 2 and Gen 1 ports provide excellent compatibility for modern peripherals, external storage devices, gaming accessories, and professional equipment.
The GIGABYTE X870E EAGLE X3D WIFI-7 uses the Realtek ALC1220 high-definition audio codec to provide clear and immersive sound quality. With support for 7.1-channel audio and S/PDIF output, users can enjoy rich sound performance for gaming, movies, music, and professional audio applications. The motherboard also includes multiple fan and water-cooling headers, RGB lighting support, temperature sensor headers, and advanced cooling controls for optimized thermal management.
GIGABYTE includes several intelligent features such as Q-Flash, Q-Flash Plus, Smart Backup, and GIGABYTE Control Center for easier BIOS updates, system monitoring, and performance tuning. These features help users maintain system stability and simplify the PC building experience.
Potaka IT offers the original GIGABYTE X870E EAGLE X3D WIFI-7 DDR5 AMD AM5 ATX Motherboard at a competitive price in Bangladesh. Customers can enjoy authentic products, trusted warranty support, professional customer service, and fast delivery nationwide. Whether you are building a high-end gaming PC, a powerful workstation, or a future-ready content creation setup, Potaka IT provides a reliable and secure shopping experience for all technology enthusiasts.
The latest price of GIGABYTE X870E EAGLE X3D WIFI-7 DDR5 AMD AM5 Motherboard in Bangladesh is 0৳. You can buy the GIGABYTE X870E EAGLE X3D WIFI-7 DDR5 AMD AM5 Motherboard at best price from our website or visit any of our showrooms.
