| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| BIOS | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |

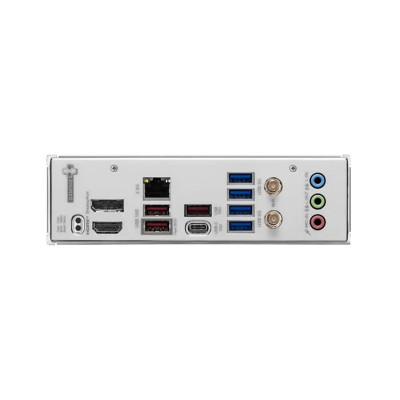

| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8125D 2.5G LAN | |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Audio | 1x Front Audio (JAUD) | |
| Wireless Communication module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

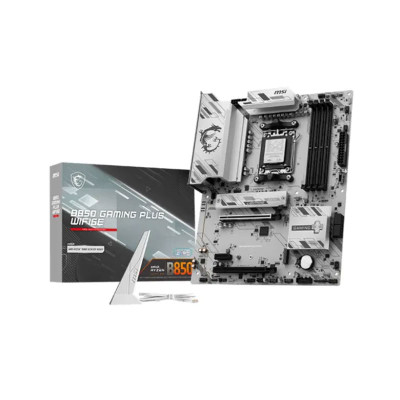

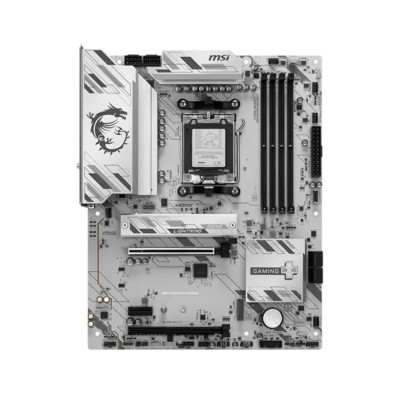

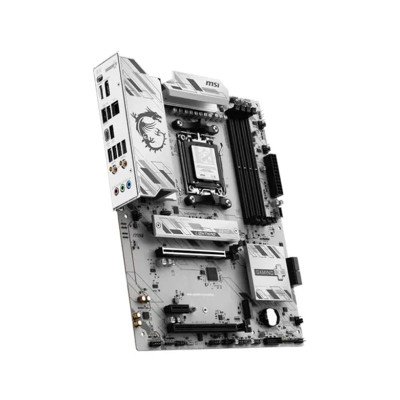

MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard is designed for gamers and PC enthusiasts who want strong performance, future-ready features, and rock-solid stability on the AMD AM5 platform. Built around the AMD B850 chipset, this ATX motherboard delivers fast DDR5 memory support, PCIe 5.0 storage capability, and WiFi 6E connectivity—making it an excellent foundation for modern Ryzen 9000, 8000, and 7000 Series builds.
The MSI B850 GAMING PLUS WIFI6E motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket, offering a smooth upgrade path and long-term platform value. With a well-balanced power design and reliable BIOS tuning, it handles everyday gaming, streaming, and productivity tasks with ease while staying stable under load.
Equipped with four DDR5 DIMM slots, this motherboard supports up to 256GB of dual-channel DDR5 memory with overclocked speeds reaching up to 8200 MT/s. Compatibility with AMD EXPO™ profiles allows easy memory tuning, helping gamers and creators unlock faster load times, smoother gameplay, and better overall system responsiveness.
The primary PCIe x16 slot delivers PCIe 4.0 bandwidth for modern graphics cards, ensuring smooth performance for high-resolution gaming and creative workloads. For storage, the MSI B850 GAMING PLUS WIFI6E features two M.2 slots, including a PCIe 5.0 x4 M.2 slot for next-generation NVMe SSDs, offering ultra-fast boot times and rapid file transfers.
With support for PCIe 5.0 and PCIe 4.0 NVMe SSDs along with four SATA 6Gb/s ports, this motherboard provides flexible storage options for both speed and capacity. RAID support for M.2 and SATA devices allows users to configure high-performance or redundancy-focused storage setups depending on their needs.
The onboard Realtek ALC897 audio delivers clear 7.1-channel high-definition sound, enhancing immersion in games, movies, and music. For display output, HDMI 2.1 and DisplayPort 1.4 support up to 4K resolution at 60Hz, making the board suitable for modern monitors and multimedia setups when using integrated graphics.
Built-in WiFi 6E ensures faster wireless speeds, lower latency, and access to the 6GHz band for a more stable online experience. Bluetooth 5.3 adds seamless connectivity for wireless peripherals, while the Realtek 2.5Gb Ethernet port delivers high-speed wired networking for competitive gaming and large data transfers.
MSI-exclusive features such as EZ Debug LEDs and EZ Memory Detection LEDs simplify troubleshooting and system setup, making the build process smoother even for first-time users. With multiple fan headers, RGB connectors, and comprehensive internal I/O options, the motherboard is easy to customize and cool effectively.
At Potaka IT, we offer genuine MSI products with competitive pricing and dependable customer support. When you buy the MSI B850 GAMING PLUS WIFI6E AM5 ATX motherboard from Potaka IT, you get quality assurance, expert guidance, and a hassle-free purchasing experience tailored for PC builders and gamers. If you’re looking for a reliable AM5 motherboard with DDR5, WiFi 6E, PCIe 5.0 storage, and MSI’s trusted gaming features, the MSI B850 GAMING PLUS WIFI6E is a smart and future-ready choice.
The latest price of MSI B850 GAMING PLUS WIFI6E ATX Motherboard in Bangladesh is 28,300৳. You can buy the MSI B850 GAMING PLUS WIFI6E ATX Motherboard at best price from our website or visit any of our showrooms.
